Standard 316 Stainless Steel Marine Rail-Mount Rod Holder, 260mm Length RWB630

$79.50 each
Brand: Tenob Boat Fittings & Marine Plumbing Parts

+
–
The add to cart button will appear once you select the values above

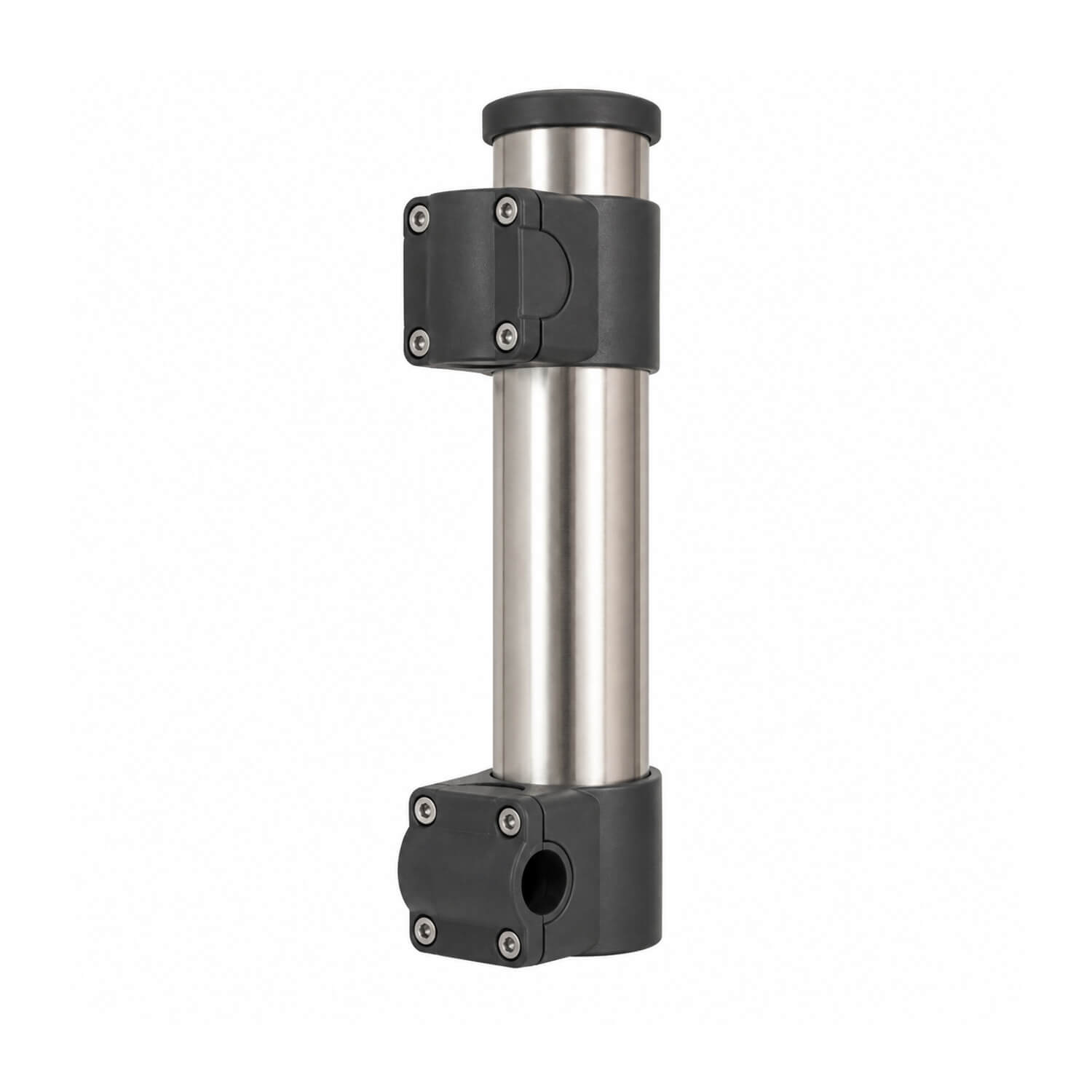

Standard 316 Stainless Steel Marine Rail-Mount Rod Holder, 260mm Length

This standard rail-mount rod holder uses a 260mm-long electro-polished 316-grade stainless-steel tube with adjustable nylon mounting clamps. It can be fitted to vertical stanchions, posts or horizontal rails, giving yacht and powerboat owners a way to position rods using existing rail structures. The upper clamp slides along the tube to accommodate rail spacing, and the clamps can be turned to set an upright or angled position.

Choosing and using this product

Measure both the rail diameter and the centre-to-centre spacing before ordering. For this standard model, the spacing must fall within the published 55–195mm range. Do not substitute the gap between the edges of the rails for the centre measurement. The stated 50mm tube size is not presented as an inside-bore measurement, so check the actual rod handle fit if clearance is tight.

The design can be used to make a rocket-launcher arrangement across two horizontal rails. Plan the spacing between individual holders around reel width and the path needed to remove a rod, then check that rods will clear antennas, a canopy and neighbouring equipment. The number of holders needed depends on your layout; each product is a single holder.

Trial-fit the correct rail inserts and orient the clamps before final tightening. The rail itself and its attachment to the boat must be suitable for the intended use. Avoid clamping over loose fittings or damaged rail sections, and check for movement before placing rods in the holder. After saltwater use, rinse the tube and clamps and inspect the fastening points regularly.

Position each holder so its clamp adjustments can still be reached once the rack is populated with rods.

Product details

  • Product code: RWB630.
  • Overall holder length: 260mm; stainless tube size: 50mm.
  • Electro-polished 316-grade stainless tube.
  • UV-resistant nylon clamps with stainless-steel fastenings.
  • Clamp inserts suit 20mm, 22mm and 25mm diameter rails.
  • Rail spacing: 55–195mm, measured centre to centre.
  • Supplied individually.
