Manta Modular Marine Bait Station Compact Dual-Leg Kit with Deck Sockets RWB5963

Manta Modular Marine Bait Station Compact Dual-Leg Kit with Deck Sockets

The Manta RWB5963 compact dual-leg mounting kit connects a compatible modular bait-station frame to two small flush-mount deck sockets. All components in this mounting-kit design are specified as 316-grade stainless steel. The slotted, pre-drilled mounting frames bolt to the station base and can move sideways, while the legs can be repositioned along the frame slots. This provides useful layout adjustment when the available gunwale surface is narrow or nearby fittings restrict where mounting points can be placed.

Choosing and using this product

Check the 33 x 50mm socket footprint against the available mounting surface, then inspect the space underneath for the full 100mm socket depth. A small flange does not remove the need for suitable structural support, fastenings and sealing. Trial-assemble the legs and frame to establish the mounting layout before drilling; the catalogue does not provide one fixed centre spacing for this adjustable kit. Keep the stepped or tapered leg fit aligned with the sockets so the station can be inserted and removed without forcing it. Optional RWB5970 folding brackets are a separate accessory if folding storage is required.

For a practical installation, trial-position the complete station before permanently fixing any mounts. Check the cutting-board height, motor movement, access to lockers and the route people use through the stern. Leave room to remove components and reach adjustment fastenings later. During routine care, rinse salt and bait residue from stainless surfaces, slots and joints, and inspect the connections before use. Keep the assembly supported while changing a mounting position. The suitability of the completed station depends on the selected components and the boat's supporting structure, so resolve any uncertain fit before loading it.

Product details

• Product code: RWB5963
• Configuration: compact dual-leg mounting kit
• Construction: 316-grade stainless steel

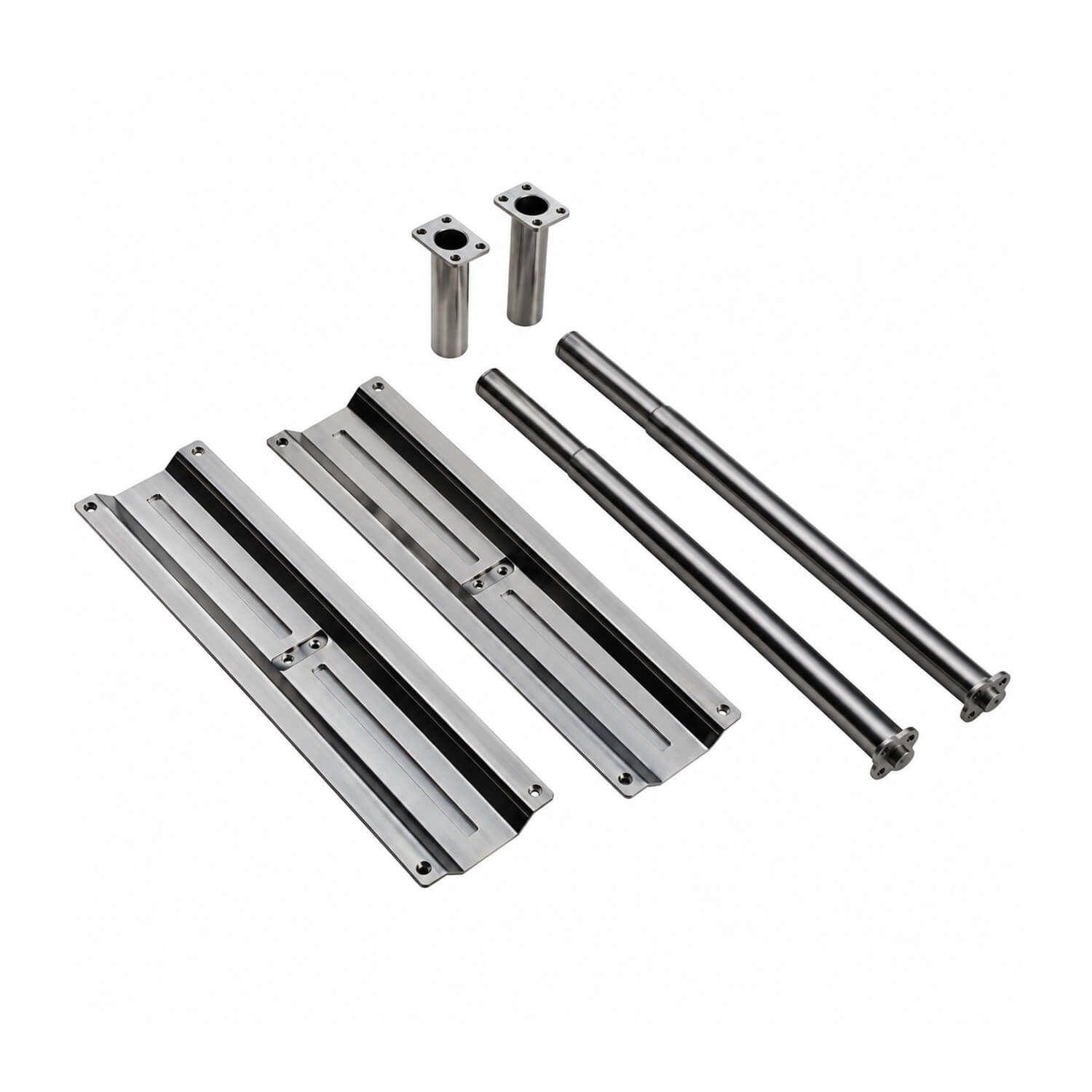

• Includes two tapered legs and slotted mounting frames
• Includes two stainless flush-mount deck sockets
• Socket surface dimensions: 33mm wide x 50mm long
• Socket depth below the mounting surface: 100mm
• Legs bolt to the mounting frames and can move along their slots
