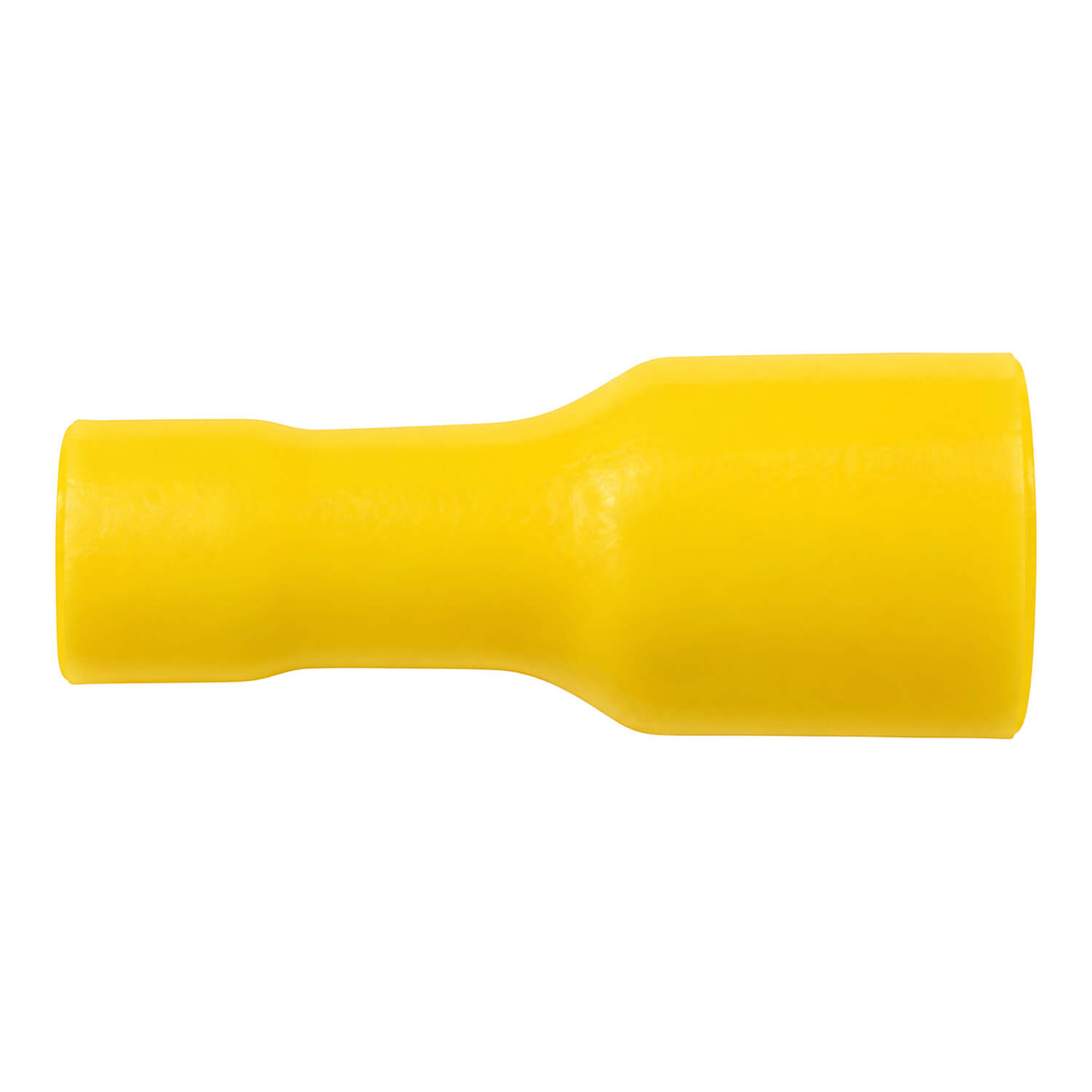

Yellow Push On Bullet Single Female Terminal - 100 Pack
Make a matching electrical connection with this yellow female bullet terminal, part 226157. This selection contains 100 pieces.
The yellow terminal colour corresponds to the 5–6mm nominal cable range. Match the mating bullet connection as well as the cable fit before termination.
The 100-piece pack keeps the same terminal variant together for repeated connections. Plan the required number of matching terminations before starting the wiring work.
Use suitable crimping tooling for the selected terminal and conductor. Colour alone does not establish the mating-contact dimensions, so check the actual connection geometry as well.
Choosing and using this product
For this version, colour: Yellow. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Allow enough space around the terminal for cable routing, strain relief and future inspection. Check that a ring or fork will sit properly at the connection without fouling nearby hardware. Where a cover is used, confirm clearance with the connection assembled.
Count each termination in the job before selecting the pack size. Include both ends where separate terminals are needed and keep the required styles distinct. A pack of identical terminals is convenient for repeated work, but it does not substitute for an assortment of different sizes.
Use the installation method and tooling intended for the terminal construction. Check the wire preparation and completed connection in accordance with the relevant instructions. Heatshrink, insulation and the metal contact perform different functions, so each part of the joint needs to suit the application.
Product details
- Product: Yellow Push On Bullet Single Female Terminal - 100 Pack
- Product code: 226157
- Quick-crimp terminal
- Pack Qty: 100
- Suitable cable size: 5-6mm cable (2.90-4.60mm sq)
- Colour: Yellow.
- Nominal cable range: 5–6mm.
- Conductor area listed for yellow quick-crimp sizing: 2.90–4.60mm².
