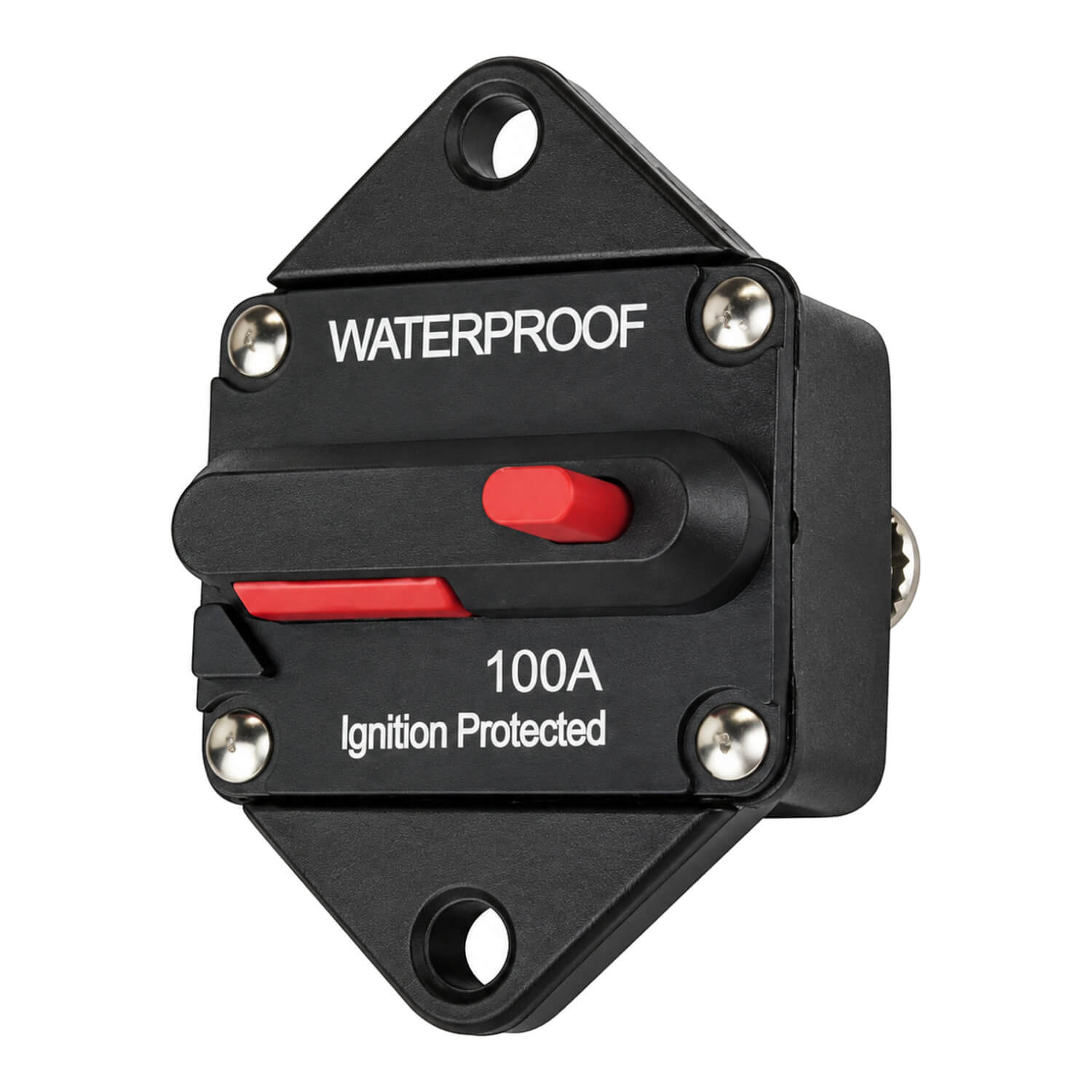

Waterproof Panel Mount Manual Resetting Circuit Breaker - 100 Amp
Protect a suitable auxiliary or accessory circuit with this 100A panel-mount manual-reset circuit breaker. Part 226436 uses a heavy-duty single-pole thermal mechanism and is sealed for engine-compartment and bilge-area applications.
The 100A trip rating and panel-mount form define this variant. Compare the connected equipment and cable protection requirements with that rating before choosing the breaker. Its 48V DC specification and 3000A interrupt capacity describe separate electrical limits for the component.
The switchable reset mechanism provides a visible indication when the breaker has tripped. After the cause is identified and corrected, the manual reset allows the circuit to be restored. Keep the breaker accessible for inspection and operation when planning its mounting location.
Construction includes a thermoset plastic housing, stud insulators, tin-plated copper studs, brass rivets and stainless steel locking nuts. The specified maximum terminal-stud torque should be observed when completing the cable connections.
IP67 sealing and ignition protection to SAE J1171 are stated for this model family, together with SAE J1625 and CE compliance. The operating and storage temperature ranges are listed separately, so use the operating limit when assessing the installed environment.
The visible trip indicator and manual reset provide a local way to inspect and restore the protected circuit. Place the breaker so those features remain accessible after the cables and surrounding equipment have been installed.
Product details
- Product: Waterproof Panel Mount Manual Resetting Circuit Breaker - 100 Amp
- Product code: 226436
- Heavy-duty single-pole thermal manual-reset circuit breaker, sealed for engine-compartment and bilge applications
- IP67, ignition protected
- complies with SAE J1625, SAE J1171 and CE
- Voltage: 48V DC
- interrupt capacity: 3000A
- Operating temperature: -32 to 82 °C (-25 to 180 °F)
- storage: -34 to 149 °C (-30 to 300 °F)
- Thermoset plastic housing, tin-plated copper studs, brass rivets and stainless steel locking nuts
- Maximum terminal stud torque: 50in-lb / 5.6Nm
- Visible trip indication
- Rating: 100 Amp
- Housing material flammability classification: UL 94 V-0.
