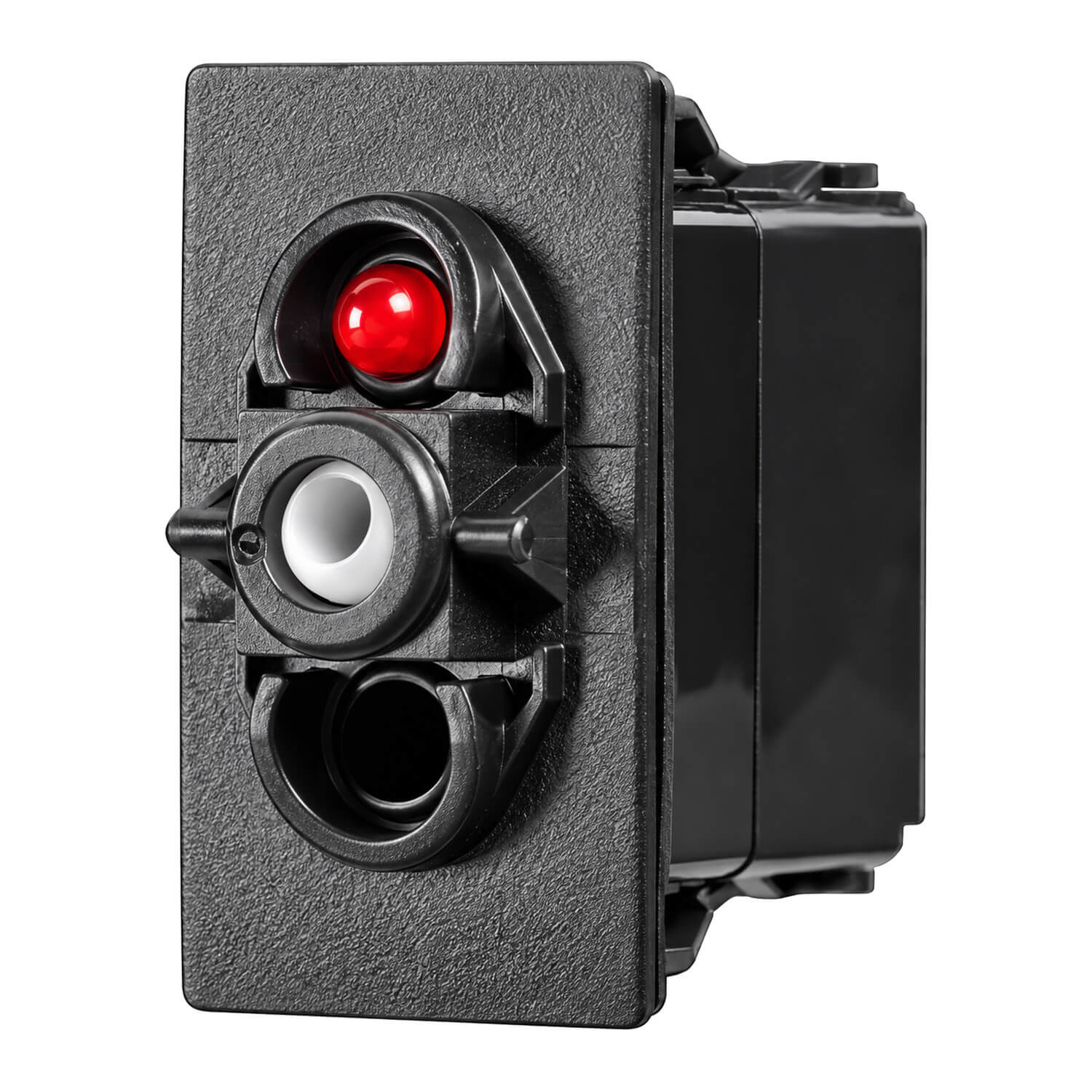

Water Resistant Rocker Switch - ON/OFF - Red - 12/24v – 709800
Match the control action to your circuit with this red-illuminated water-resistant rocker switch, part 709800. The on/off configuration is rated at 20A for DC12V/24V use.
The stated on/off positions define the operating action for this version. Compare the action with the existing switch or planned circuit before making the connection.
An IP65 sealed construction is specified for marine and outdoor applications. The 0.250-inch quick-connect terminals provide the connection format to match when preparing the wiring.
This switch is supplied without an actuator, allowing the appropriate actuator legend to be selected separately.
Choosing and using this product
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Product details
- Product: Water Resistant Rocker Switch - ON/OFF - Red - 12/24v
- Product code: 709800
- Water-resistant rocker switch supplied without actuator
- IP65, designed for marine or outdoor applications
- DC12/24V dual voltage and 0.250-inch quick-connect terminals
- Switch Action: ON/OFF
- Illumination: Red
- Voltage: 12/24v
- Amp: 20
