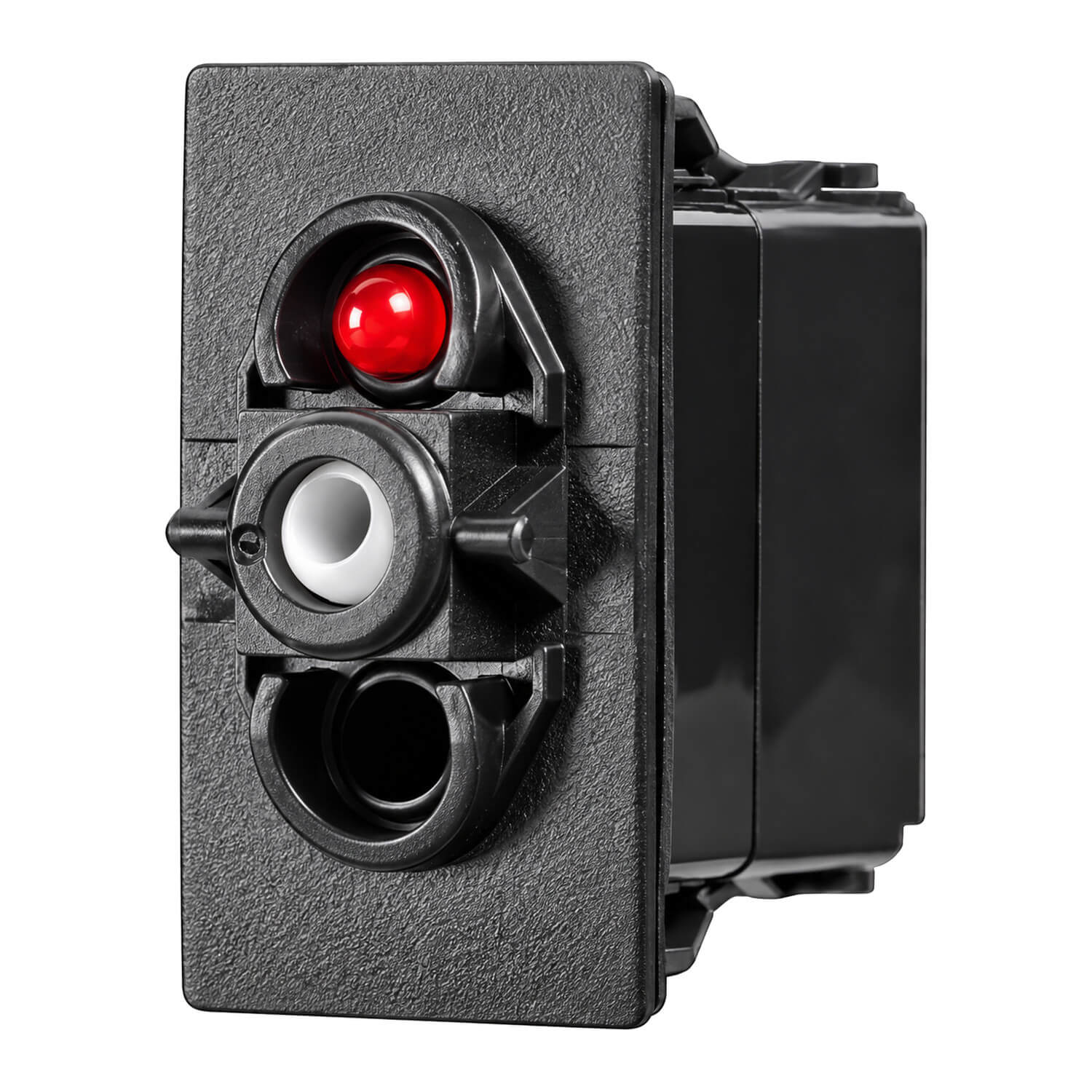

Water Resistant Rocker Switch - MOMENTARY ON/OFF - Red - 12/24v – 709802
Match the control action to your circuit with this red-illuminated water-resistant rocker switch, part 709802. The momentary on/off configuration is rated at 20A for DC12V/24V use.
Momentary operation makes this version appropriate where the control must return after it is released. Confirm the required contact action against the equipment wiring before selecting the switch.
An IP65 sealed construction is specified for marine and outdoor applications. The 0.250-inch quick-connect terminals provide the connection format to match when preparing the wiring.
This switch is supplied without an actuator, allowing the appropriate actuator legend to be selected separately.
Choosing and using this product
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Product details
- Product: Water Resistant Rocker Switch - MOMENTARY ON/OFF - Red - 12/24v
- Product code: 709802
- Water-resistant rocker switch supplied without actuator
- IP65, designed for marine or outdoor applications
- DC12/24V dual voltage and 0.250-inch quick-connect terminals
- Switch Action: MOMENTARY ON/OFF
- Illumination: Red
- Voltage: 12/24v
- Amp: 20
