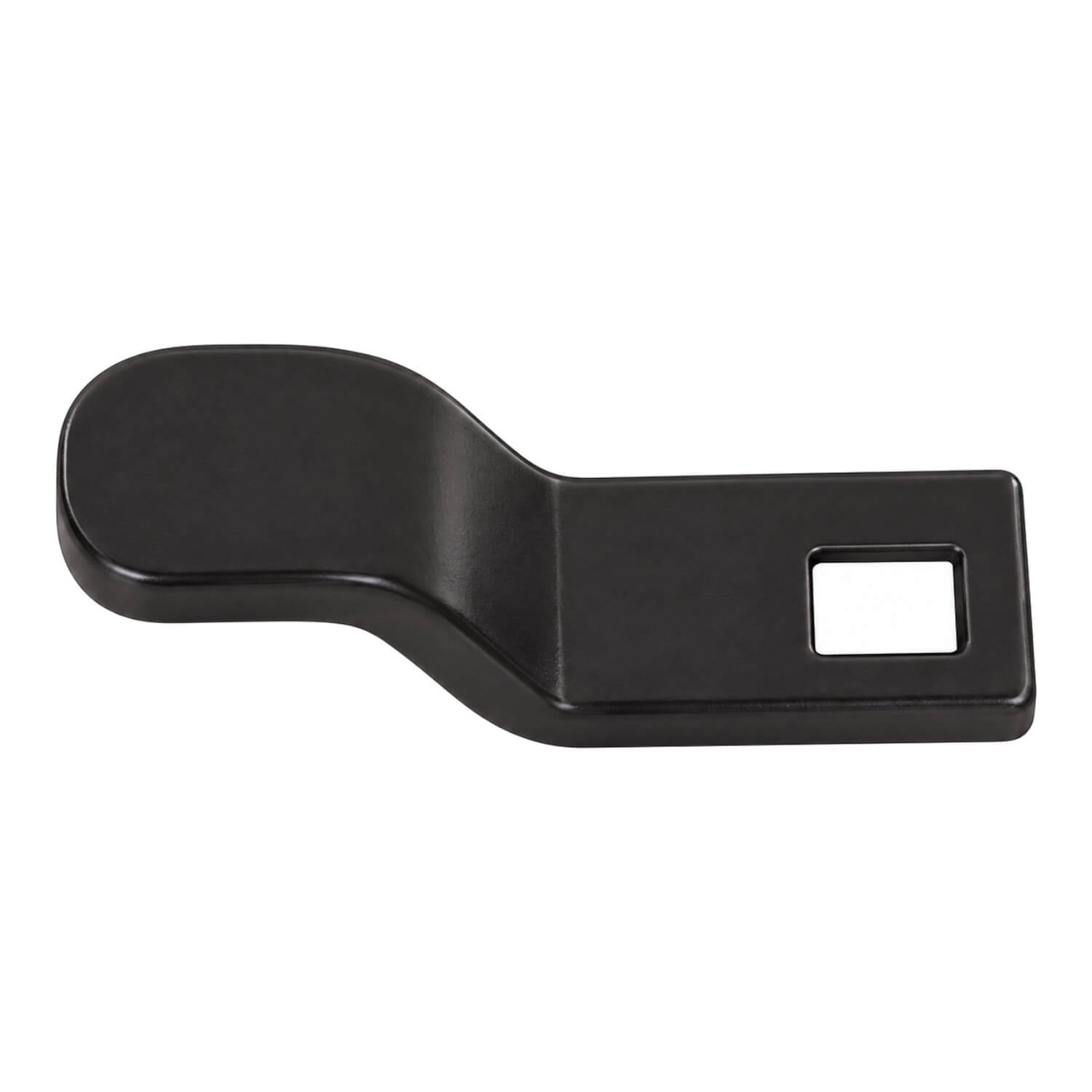

TH Marine Anchor Handle Catch Cam Offset 2 1/4 inch
Complete a compatible TH Marine anchor-handle catch with this offset cam. Its 2¼ inches length gives you a defined reach to compare with the lid’s closing arrangement.
The 3/4-inch offset changes the relationship between the cam and the catch, so measure both the reach and the step required behind the lid.
These cams are supplied separately from the anchor-handle catches. Confirm the required geometry before ordering and check the available clearance through the catch’s operating movement. Choosing the correct cam is part of matching the complete catch to the lid and frame.
Choosing and using this product
Include the attachment points in routine boat inspections. Keep moving or seating surfaces clear where applicable, and follow the product’s care instructions for its material and finish. Retaining the size and part code is useful when replacing another fitting elsewhere on the boat.
The listed material, finish and dimensions help you select a version that suits the job and surrounding fittings. Measure the actual location rather than relying on a familiar-looking shape. Small differences in projection or spacing can change how comfortably the completed arrangement works.
For this version, length: 2 1/4 inch. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Check the stated supply quantity and inclusions when ordering. Some listings describe an individual component, while others supply a pair, pack or complete assembly. Match any additional fixings and supporting parts to the installation requirements rather than assuming they accompany the visible fitting.
Consider how the fitting will be used in the normal boat layout. Allow room for hands, tools and any intended movement, and check that it does not obstruct an access opening or another control. Offer the parts into position before marking or making permanent changes.
Product details
- Offset cam to suit TH Marine anchor handle catches.
- Length: 2 1/4 inch.
- Offset: 3/4 inch.
- Product code: 407467
