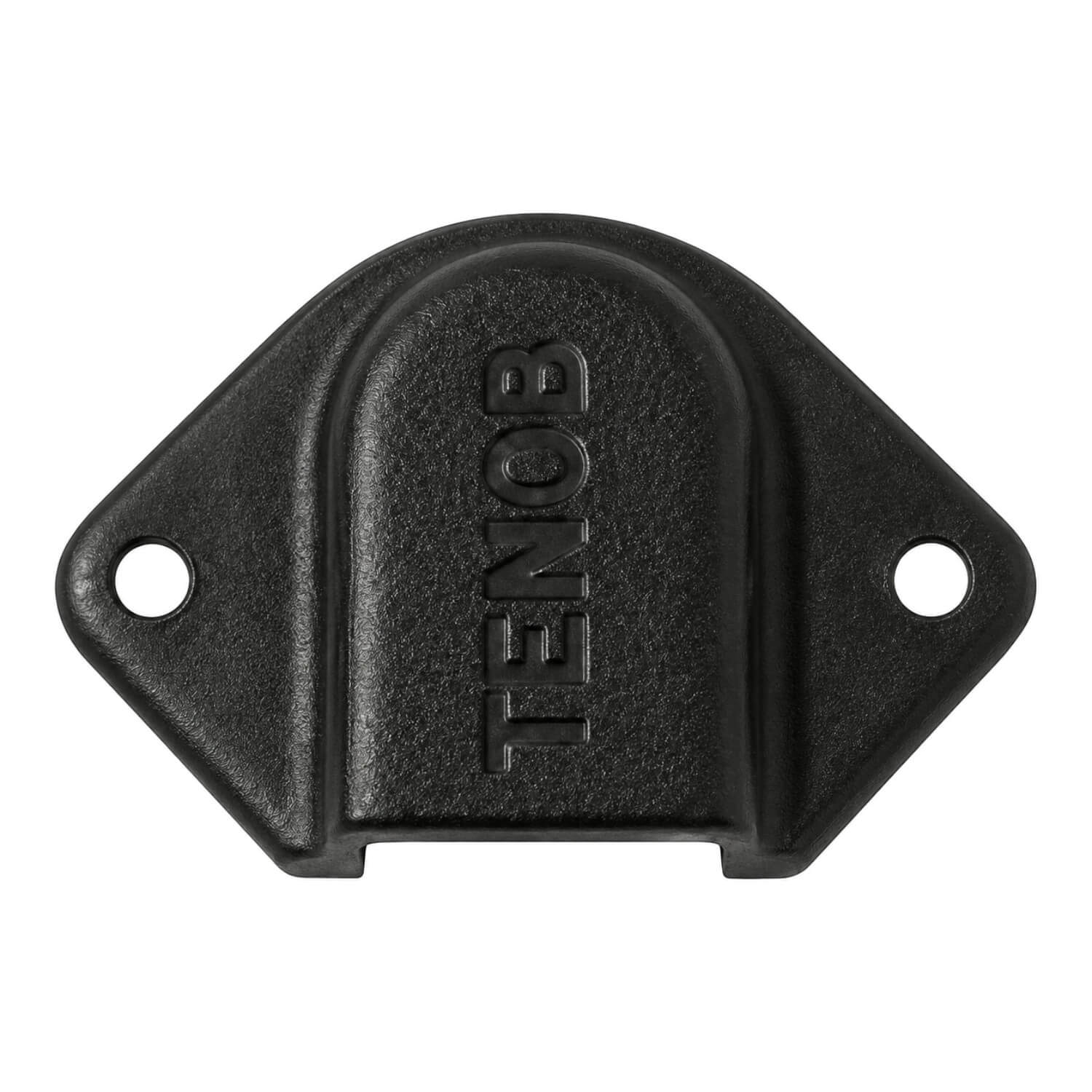

Tenob Cable Outlet Cover 400225
Tidy a cable entry with the Tenob nylon cable outlet cover, designed for transoms, instrument panels and similar cable-entry positions. Its compact cover format provides a neat finish around an entry without making the cable itself part of the mounting hardware.

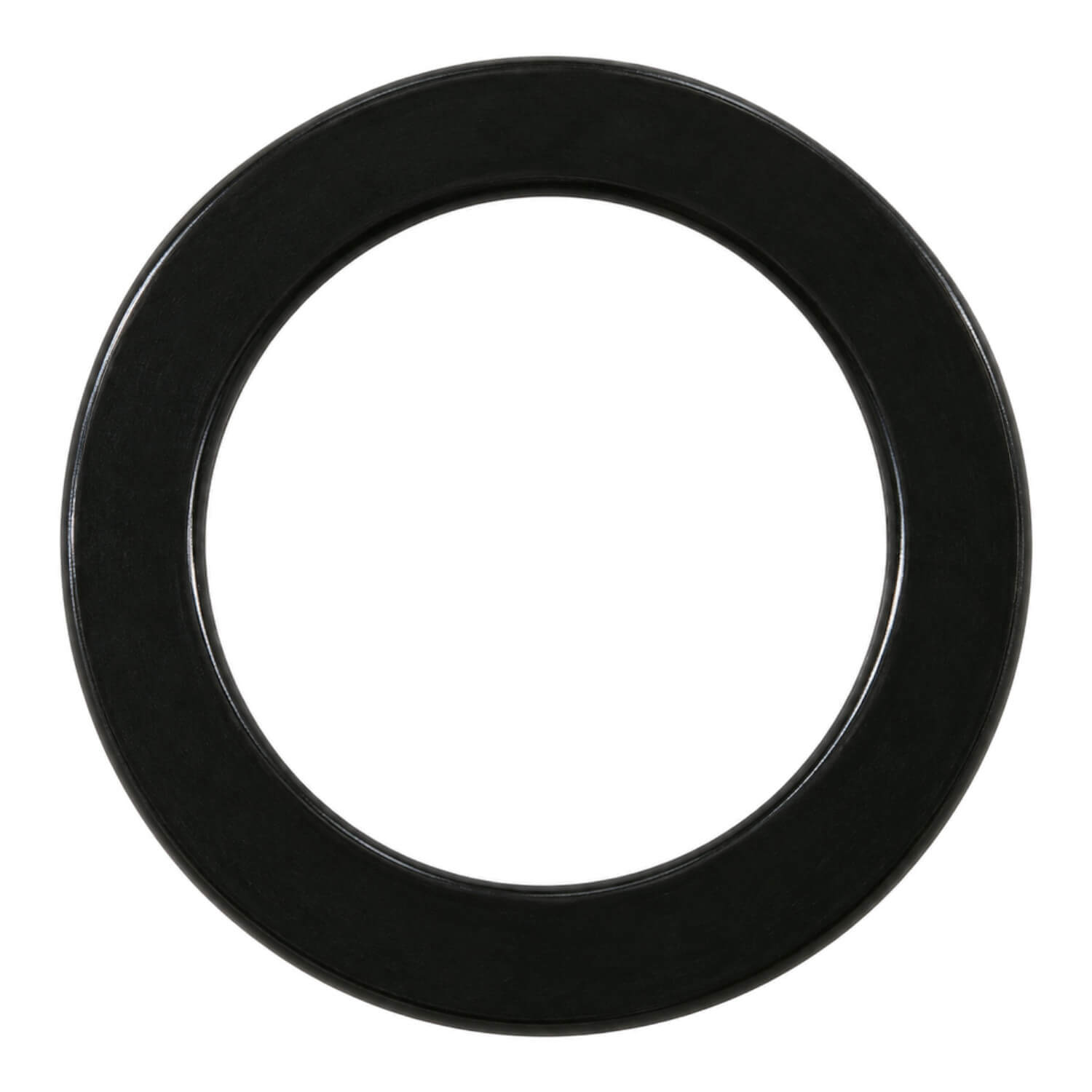

The kit includes a nylon through-hull snap bushing that protects the cable from sharp edges at the opening. This is a useful distinction from a cover supplied on its own: the bushing addresses the edge through which the cable passes, while the cover finishes the outside of the entry.
The UV-resistant nylon cover measures 48 x 32 x 9mm. It can cover a hole up to 28mm in diameter, while the cable opening is 17 x 5mm. These measurements describe different parts of the installation and should be checked separately. A hole small enough to sit beneath the cover does not by itself establish that the cable will fit through the cable opening.
Suitable uses include fish-finder transducer cables and electrical lighting cables, as well as cable entries on instrument panels. Before ordering, compare the actual cable profile and routing with the stated opening. Allow the cable to follow its required path without forcing it against the edge of the fitting.
For a replacement, measure the existing hole and the flat area available around it. Check that the cover footprint sits properly on the surface and that the snap bushing suits the planned entry arrangement. These checks help you select the fitting by its dimensions rather than its appearance alone.
Choose this kit when its cover dimensions, cable opening and included bushing match the entry you are finishing. The listed purpose is to cover the entry and protect the cable at sharp edges; no waterproof or electrical protection rating is specified.
Product details
- UV resistant nylon cover for cable entries on transoms and instrument panels, transducer cables and lighting cables.
- Covers holes up to 28mm diameter.
- Kit includes nylon thru hull snap bushing to protect cables from sharp edges.
- Size 48 x 32 x 9mm.
- Cable opening 17 x 5mm.
- Product code: 400225
