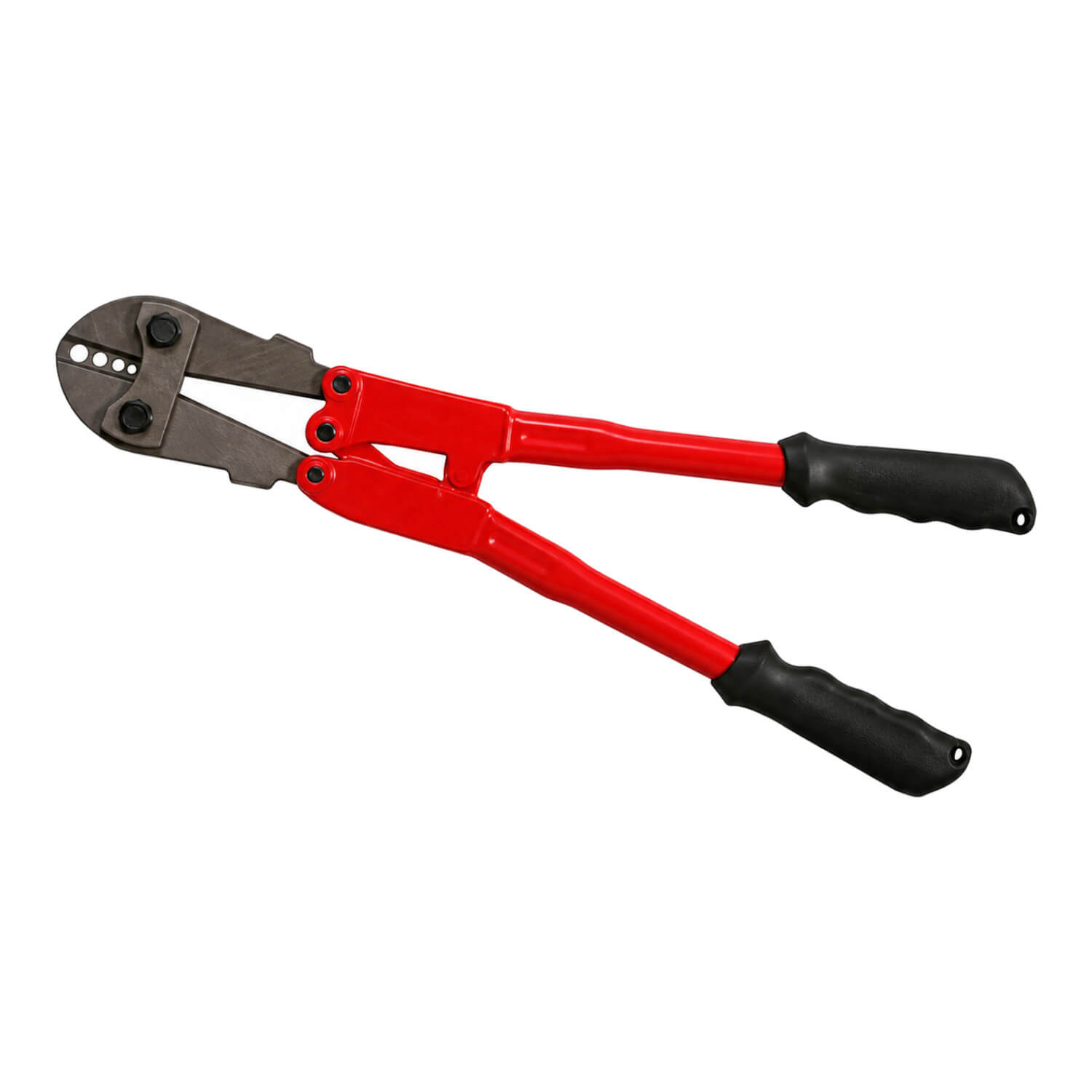

Swage tool 20” suits 1/16, 3/32 & 1/8” wire
This lightweight swage tool is intended for handyman work or occasional light use. Its handle length and supported wire sizes below identify the exact version, making it easier to compare with the swages and wire used for a small project.
Check the listed wire sizes and the swage manufacturer’s requirements before making a termination. A tool-size listing does not certify the load capacity of the completed crimp or make this an industrial production tool.
Choosing and using this product
Plan access for assembly, adjustment and routine inspection. The connection should be arranged so adjoining parts do not prevent its intended movement or closure. Once assembled, inspect the fitting and surrounding hardware together, especially where there has been wear, deformation or a difficult loading event.
This is a targeted replacement purchase, so keep the parent equipment reference beside the part number while checking the order. If several similar assemblies are fitted aboard, identify the relevant position as well. That distinction helps ensure the part is ordered for the equipment actually being serviced.
Any stated breaking load describes a different condition from an allowable working load. Select the complete arrangement for its intended application using the appropriate equipment guidance. Do not derive a load rating for an unmarked component from its appearance or metal grade.
Look at both sides of the proposed connection before choosing a rigging fitting. The opening, pin or thread must suit the adjoining components, while the body needs sufficient clearance to sit as intended. A larger nominal size is not automatically the best fit for a confined connection.
Use the stated material and dimensions to compare this version with the part being replaced. Thread direction, closure style and the shape of the attachment points can matter as much as overall length. Check those details against the actual assembly rather than a photograph alone.
Product details
- Product code: CP6010
- Tool length: 20 inches
- Wire sizes: 1/16, 3/32 and 1/8 inch
