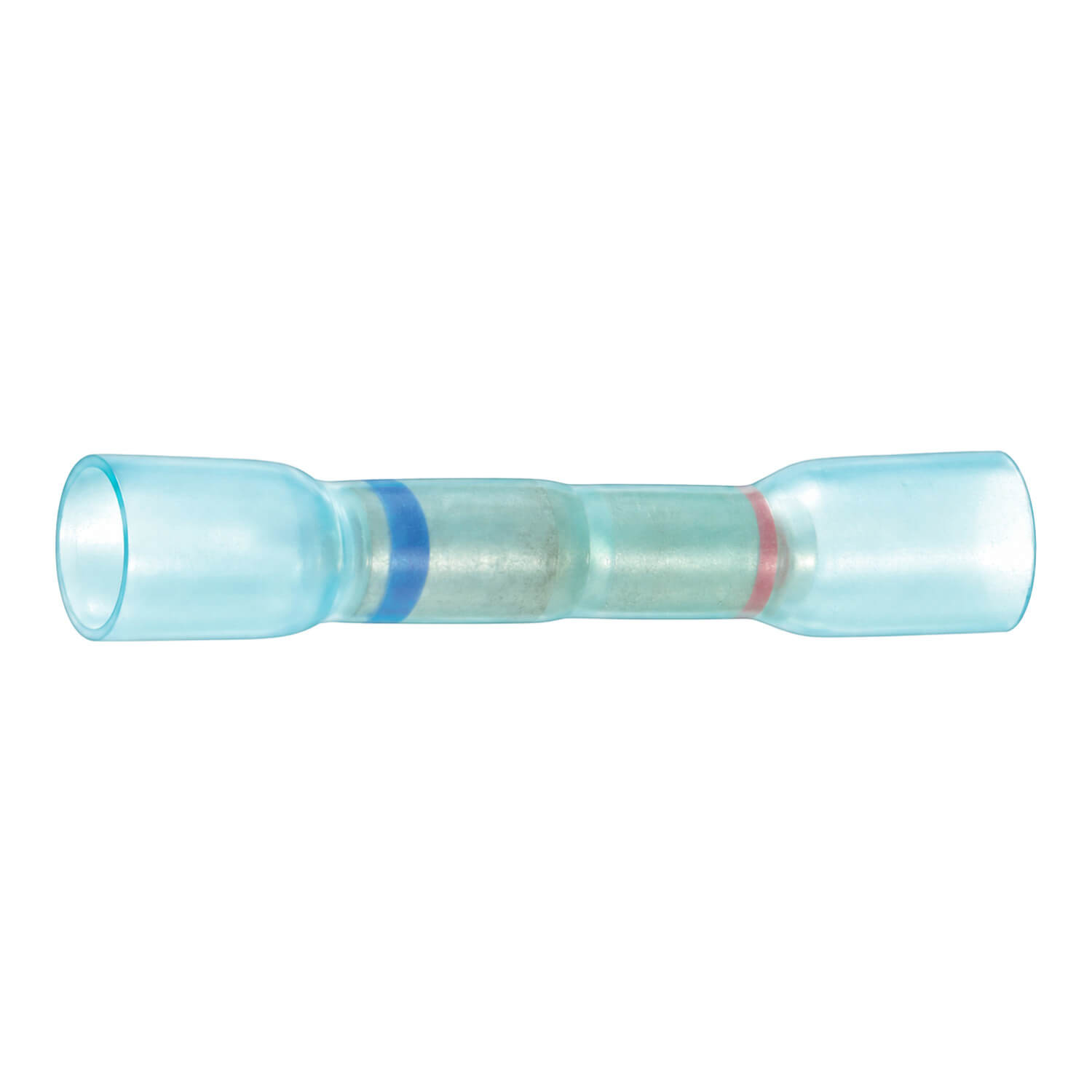

Step Down Heatshrink Joiner - Blue to Red - 100 Pack
Join different cable ranges with the blue-to-red step-down heat-shrink joiner, part 226212-100. This pack contains 100 joiners.
The stated range is 22–18 to 16–14 AWG, making the step-down format the important selection point. Match each side to its intended cable before completing the joint.
The 100-piece pack provides a consistent supply for this specific transition. Choose by both cable ranges rather than selecting a joiner only by one end’s colour.
Choosing and using this product
Allow enough space around the terminal for cable routing, strain relief and future inspection. Check that a ring or fork will sit properly at the connection without fouling nearby hardware. Where a cover is used, confirm clearance with the connection assembled.
Keep unused terminals labelled by conductor range and connection size. Similar colours or shapes can conceal differences in stud-hole diameter or wire capacity. Recording the selected part code helps maintain consistency when another circuit or repair needs the same termination.
Use the installation method and tooling intended for the terminal construction. Check the wire preparation and completed connection in accordance with the relevant instructions. Heatshrink, insulation and the metal contact perform different functions, so each part of the joint needs to suit the application.
Count each termination in the job before selecting the pack size. Include both ends where separate terminals are needed and keep the required styles distinct. A pack of identical terminals is convenient for repeated work, but it does not substitute for an assortment of different sizes.
Match the cable connection and the equipment connection separately. The terminal must suit the specified conductor size, while its eye, fork, spade or joining end must fit the mating point. The colour is a useful range identifier, but it should not replace checking the actual dimensions.
Product details
- Product: Step Down Heatshrink Joiner - Blue to Red - 100 Pack
- Product code: 226212-100
- Step-down heat-shrink joiner, blue to red
- Cable range: 22-18 to 16-14 AWG
- Pack Qty: 100
