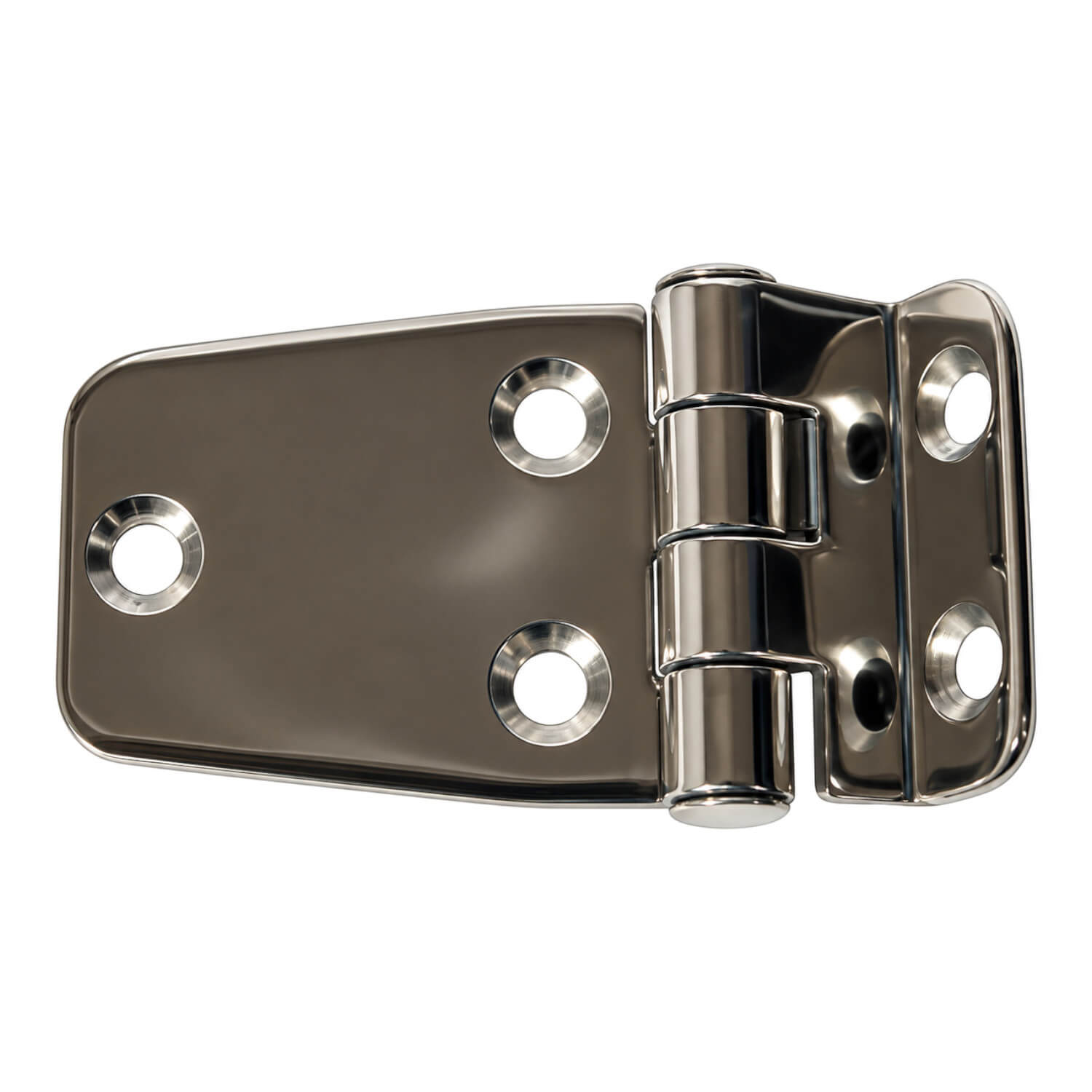

Stamped Stainless Steel Offset Butt Hinge 64 x 40mm Pair Boat Cabin Hardware
Choose the stamped stainless steel offset butt hinge - 64 x 40mm - pair when its dimensions and mounting style match your panel. The specified size makes it straightforward to compare this exact variant with the hinge being replaced.
The offset is a separate measurement from the overall hinge size. Compare it with the step between the two mounting surfaces so the leaves sit in the intended positions. An offset hinge should be matched by its geometry as well as its footprint.
This variant has a 48/16mm leaf-length ratio. The 48mm and 16mm sections need different amounts of mounting space, so check their orientation against the panel.
Supplied as a pair, this listing lets you plan the two hinge positions together. Check fixing centres against the actual hardware before reusing existing holes, and choose fixings to suit the supporting material.
Choosing and using this product
Include the attachment points in routine boat inspections. Keep moving or seating surfaces clear where applicable, and follow the product’s care instructions for its material and finish. Retaining the size and part code is useful when replacing another fitting elsewhere on the boat.
The listed material, finish and dimensions help you select a version that suits the job and surrounding fittings. Measure the actual location rather than relying on a familiar-looking shape. Small differences in projection or spacing can change how comfortably the completed arrangement works.
Consider how the fitting will be used in the normal boat layout. Allow room for hands, tools and any intended movement, and check that it does not obstruct an access opening or another control. Offer the parts into position before marking or making permanent changes.
Product details
- Stamped Stainless Steel Offset Butt Hinge.
- Sold as a pair.
- Overall length 64mm; width 40mm.
- Thickness 2mm.
- Length ratio 48/16mm.
- Screw size 8g.
- Offset 10mm.
- Product code: 400145
