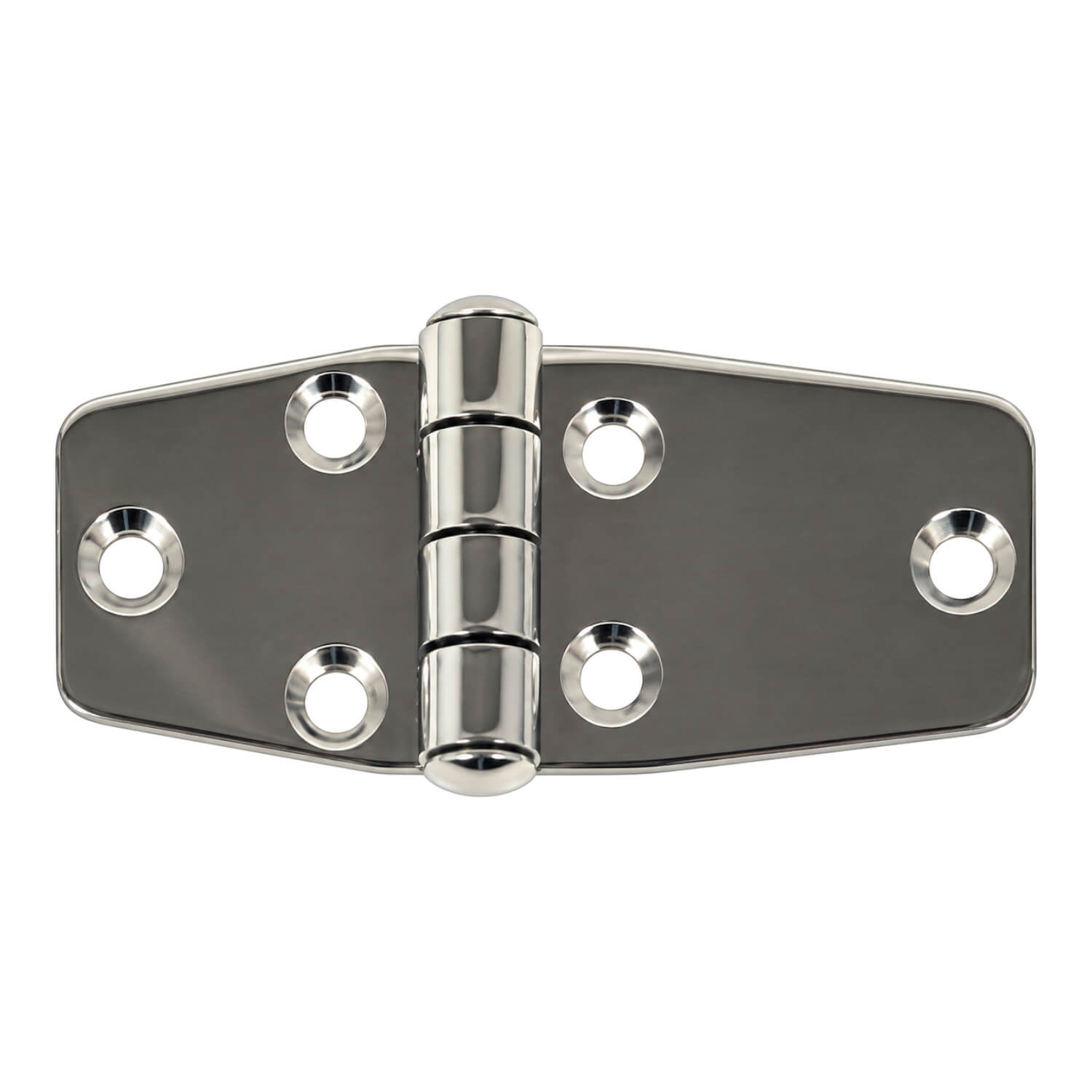

Stamped Stainless Steel Butt Hinge 86 x 40mm Pair
Choose the stamped stainless steel butt hinge - 86 x 40mm - pair when its dimensions and mounting style match your panel. The specified size makes it straightforward to compare this exact variant with the hinge being replaced.
Check the overall footprint and leaf proportions before drilling, especially when replacing a fitting with unequal leaf lengths. Where thickness is listed, allow for it in the closed-panel arrangement. The screw-size specification identifies the required gauge rather than the length of a fixing.
This variant has a 48/38mm leaf-length ratio. The 48mm and 38mm sections need different amounts of mounting space, so check their orientation against the panel.
Supplied as a pair, this listing lets you plan the two hinge positions together. Check fixing centres against the actual hardware before reusing existing holes, and choose fixings to suit the supporting material.
Choosing and using this product
Consider how the fitting will be used in the normal boat layout. Allow room for hands, tools and any intended movement, and check that it does not obstruct an access opening or another control. Offer the parts into position before marking or making permanent changes.
Include the attachment points in routine boat inspections. Keep moving or seating surfaces clear where applicable, and follow the product’s care instructions for its material and finish. Retaining the size and part code is useful when replacing another fitting elsewhere on the boat.
For this version, length ratio 48/38mm. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
The listed material, finish and dimensions help you select a version that suits the job and surrounding fittings. Measure the actual location rather than relying on a familiar-looking shape. Small differences in projection or spacing can change how comfortably the completed arrangement works.
Product details
- Stamped Stainless Steel Butt Hinge.
- Sold as a pair.
- Overall length 86mm; width 40mm.
- Thickness 2mm.
- Length ratio 48/38mm.
- Screw size 8g.
- Product code: 400143
