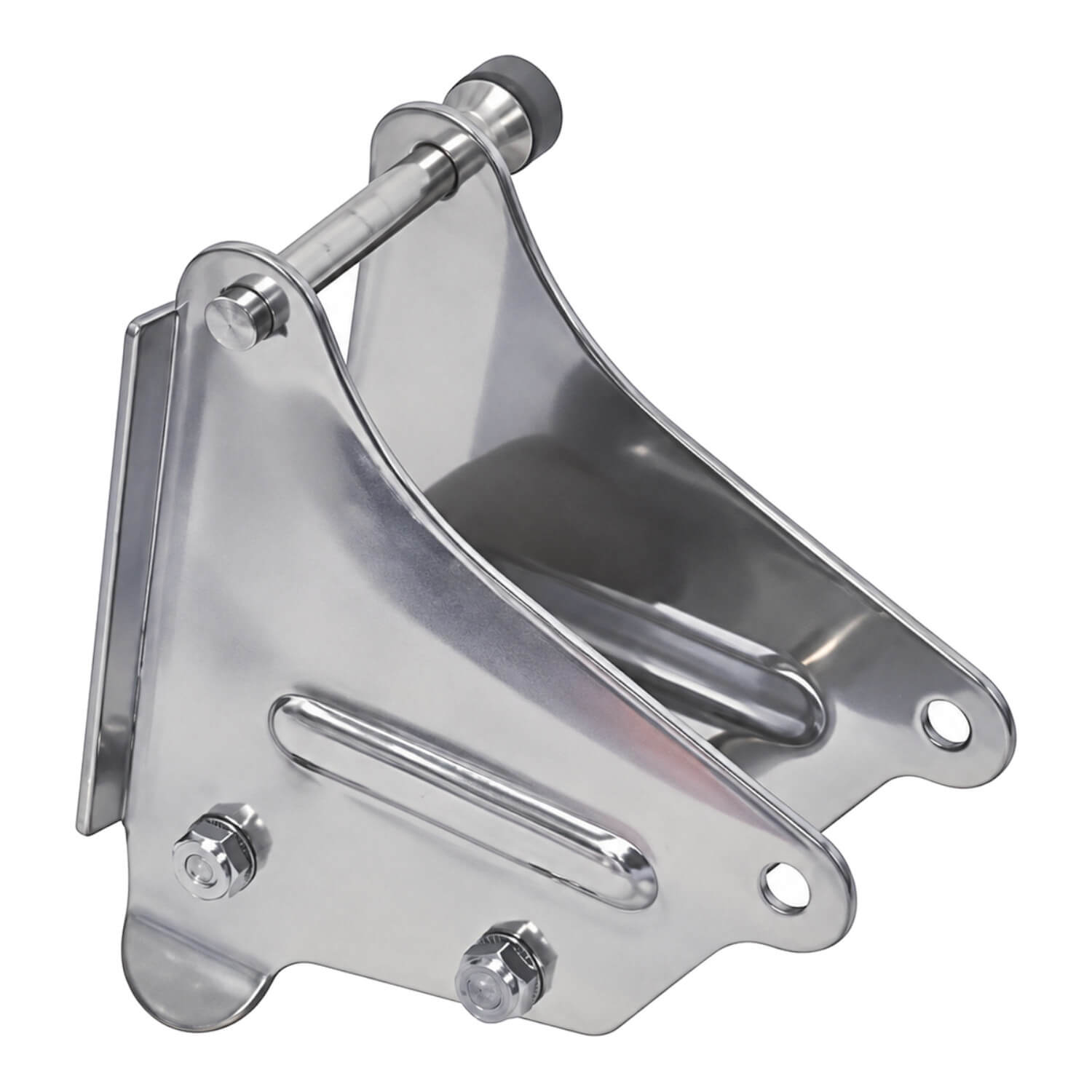

S/S Nose Section - Narrow High
This 304-grade stainless-steel nose section is a replacement component for the specified bow-roller and anchor-device arrangement. Match the compatible bow-roller codes, internal width and vertical opening before selecting it.
The internal width and vertical opening at the pin are different measurements and should both be checked against the intended anchor, rope or chain arrangement. A nominal mounting area describes the footprint; it is not a drill-hole spacing specification. Extra-wide and extra-high versions have different clearances, so use the figures for this code.
Replacement roller and pin-kit numbers below help identify service parts. A listed replacement or bolt-kit number identifies a compatible part and does not mean that a separate spare kit is included. Match the full assembly before ordering parts, especially where a nose roller differs from the main bow roller.
Choosing and using this product
Plan how the equipment will be reached, deployed and secured when not in use. Keep the connections accessible for inspection and follow the relevant anchoring-equipment instructions. A storage position should accommodate the complete assembly without trapping the rope beneath other gear.
After use, inspect the anchor and connecting components together. Look for wear or damage at the attachment points and keep the selected sizes with the boat’s equipment records. This makes it easier to replace a worn component while maintaining the intended arrangement.
For this version, compatible bow roller: 408606 - 408609. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
For a bow fitting or anchor accessory, check the actual anchor and mounting arrangement rather than relying on the name of the style alone. Clearance, pin size and the way the parts sit together can affect whether the selected version is appropriate.
Product details
- Product code: 408624
- Compatible bow roller: 408606 - 408609
- Internal Width: 55mm
- Vertical Opening At Pin: 90mm
- Replacement Roller: 761105
- Replacement Pin Kit: 402226
- Bolt Kit: 402225
