Stainless Steel Wiper Set

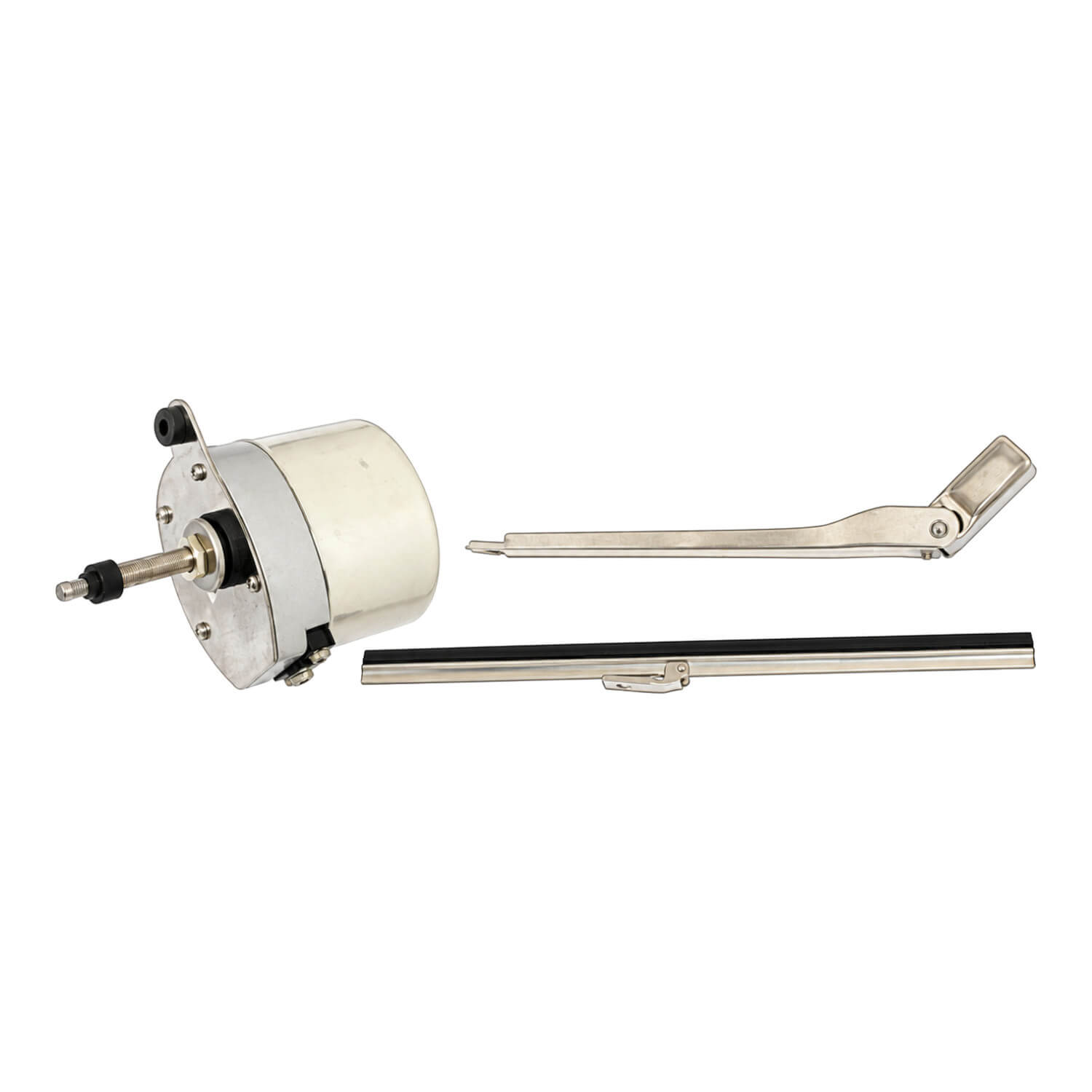

Maintain forward visibility through a suitable small pleasure-boat windscreen with this stainless steel wiper set. Part 220340 includes a motor with stainless steel cover, an adjustable stainless steel arm and a rubber blade.
The arm adjusts from 180 to 280mm and the blade is 280mm long. Self-parking operation and a 110-degree sweep define the wiper’s movement, while the motor is specified at 12V and 1.5A.
Compare the sweep area, arm reach and blade length with the windscreen before selecting the set. Replacement arm 220341 and blade 220342 are listed for maintaining the matching assembly. This set is specified for smaller pleasure boats only.
Choosing and using this product
Compare the available clearance across the screen and around its edges. A longer blade is not automatically a better choice if it extends beyond the intended swept area or interferes with the frame.
Check whether this listing supplies the complete set, an arm or a blade. These are separate service purchases, and a compatible motor or adjoining component should not be assumed to be included.
Keep the model and component dimensions with the boat’s equipment records. This is useful when a later blade or arm replacement needs to match an older installation.
Where stainless steel is specified, match the stated grade and the adjoining materials when planning the installation. The grade identifies the material selection; it does not by itself establish a load capacity or make every fastening arrangement suitable. Check the complete assembly and its intended application together.
Follow the wiper system instructions for fitting and adjustment. Confirm the completed assembly operates through its intended range, then include the attachment and blade condition in routine inspections.
Product details
- Product: Stainless Steel Wiper Set
- Product code: 220340
- Wiper set for smaller pleasure boats with motor and stainless steel cover, adjustable 180-280mm stainless steel arm and 280mm rubber blade
- Self-parking, 110 degree sweep
- 12V, 1.5A
