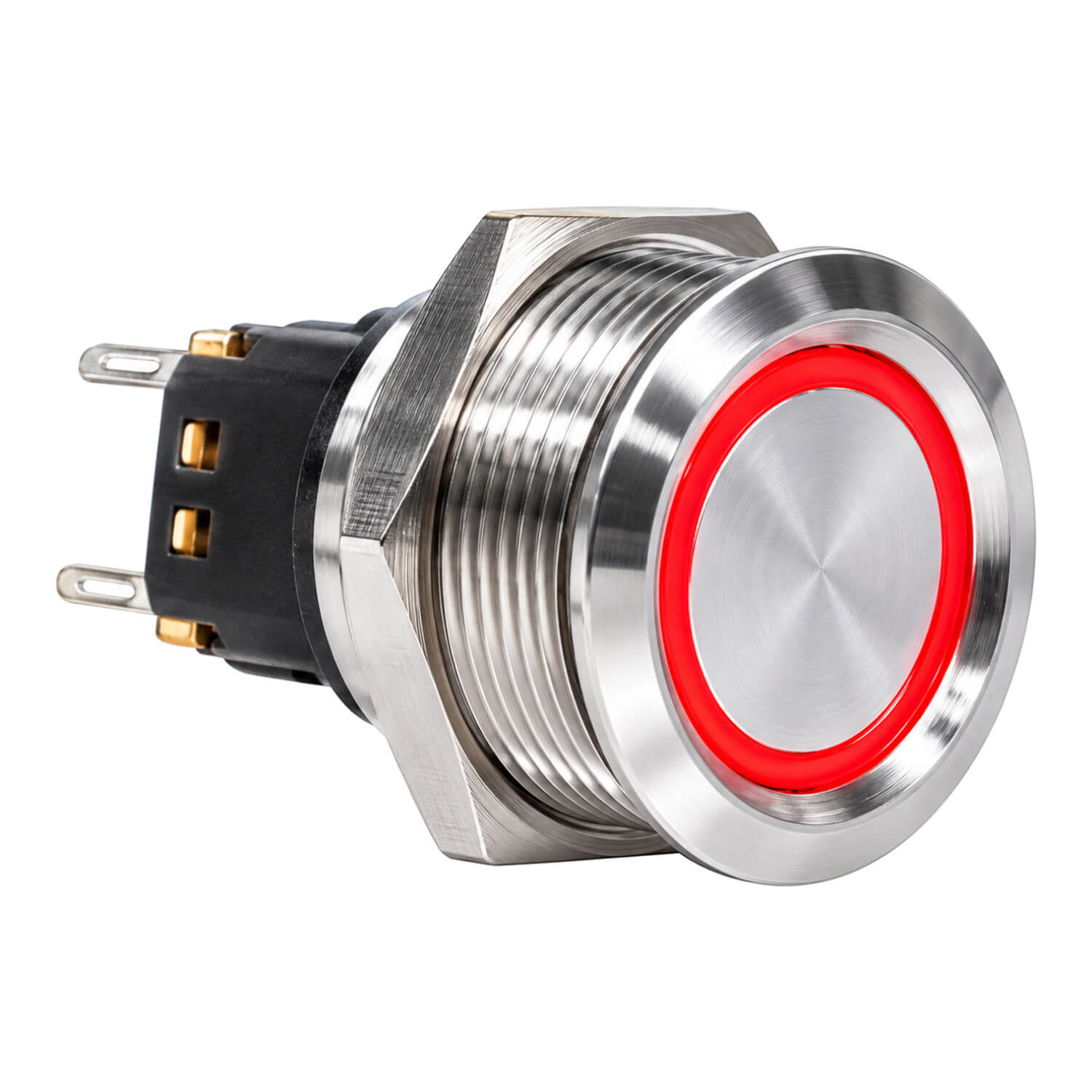

SS Push Button Switch - MOMENTARY ON/OFF - Red - 12/24v
Add a defined red LED-ring control with this stainless steel push-button switch. Part 709602 uses momentary on/off operation and is rated at 15A for 12V/24V.
A 22mm cut-out is required for the stainless steel housing and button. The red light ring identifies the illumination variant, while the momentary on/off action determines how the circuit is operated.
The switch carries an IP67 rating and is supplied with 4.8mm quick-crimp terminals. Check the mounting opening, rear clearance and circuit requirements together before installation.
Choosing and using this product
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Product details
- Product: SS Push Button Switch - MOMENTARY ON/OFF - Red - 12/24v
- Product code: 709602
- Stainless steel housing and push button with LED light ring
- IP67
- Supplied with 4.8mm quick-crimp terminals
- Cutout: 22mm
- Rated 15A
- Switch Action: MOMENTARY ON/OFF
- Illumination: Red
- Voltage: 12/24v
- Amp: 15
