Spare Label Set

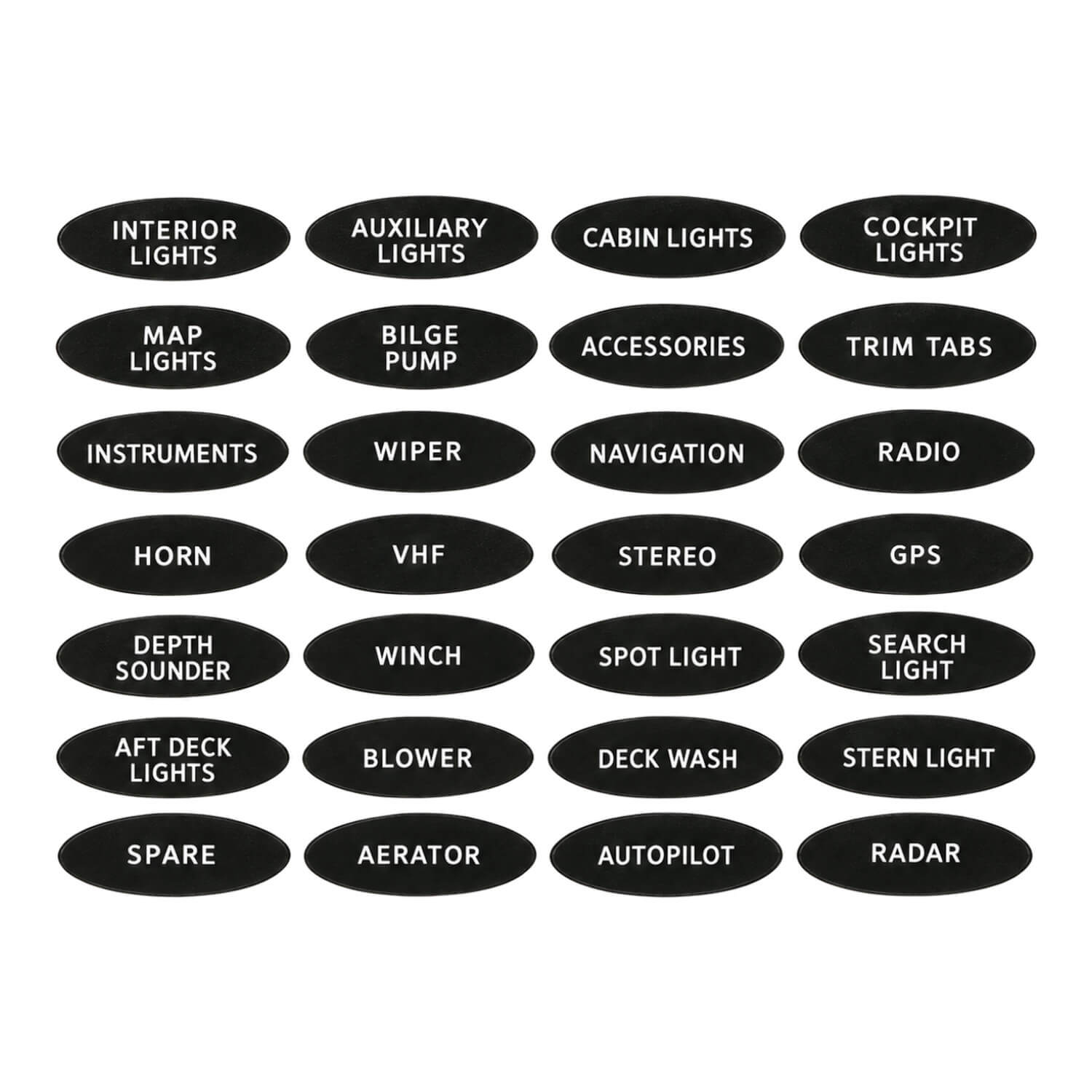

Refresh circuit identification with spare label set 702096. It is listed for the Easterner switch-panel range and for the splash-proof panels, including the grey four- and six-switch models.
Clear circuit identification helps keep a control panel understandable after maintenance or equipment changes. Match the labels to the actual connected functions and confirm the label format against the panel being refurbished. This item is the label set rather than a switch-panel assembly.
Choosing and using this product
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
This is a targeted replacement purchase, so keep the parent equipment reference beside the part number while checking the order. If several similar assemblies are fitted aboard, identify the relevant position as well. That distinction helps ensure the part is ordered for the equipment actually being serviced.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Product details
- Product: Spare Label Set
- Product code: 702096
- Spare label set for Easterner / splash-proof switch panels
