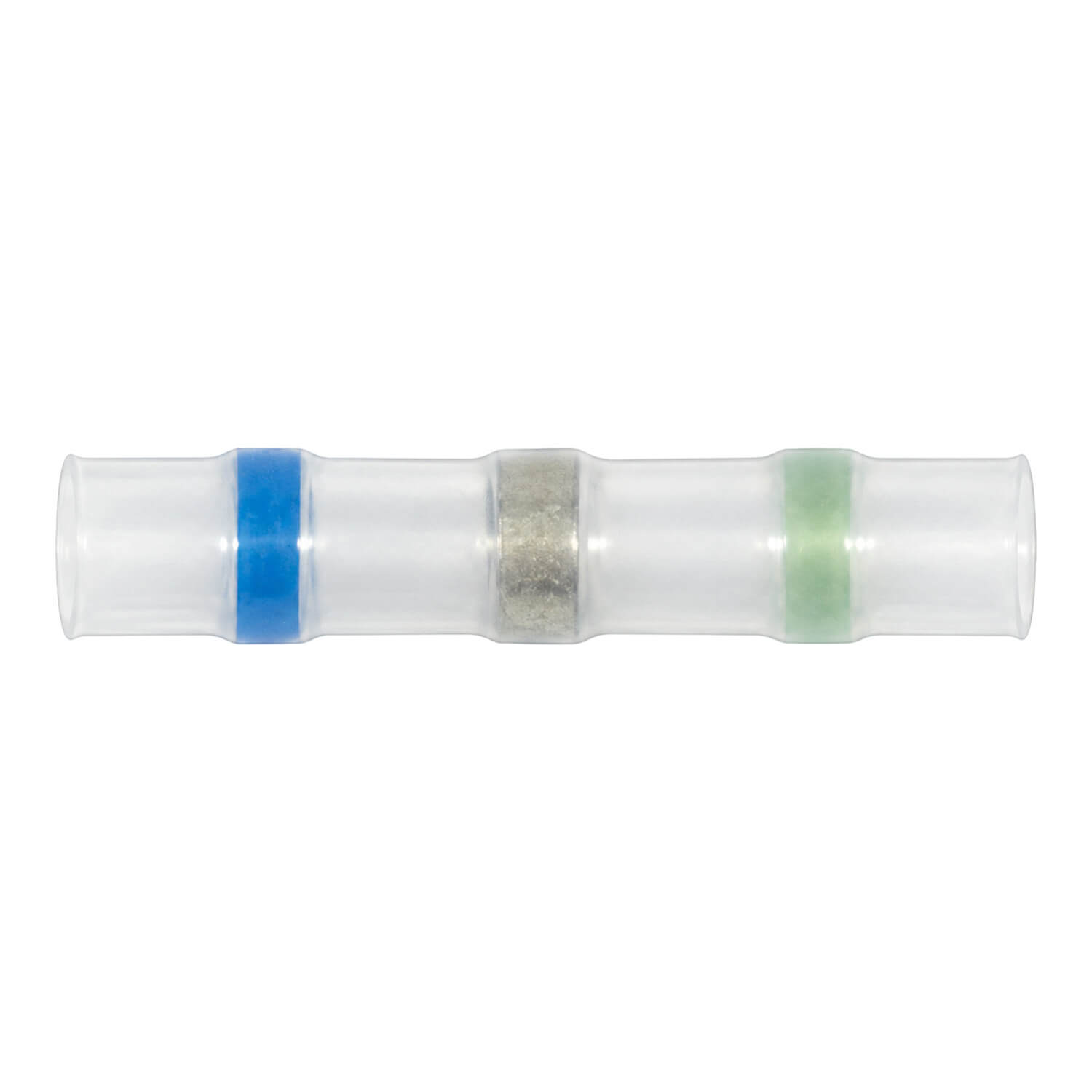

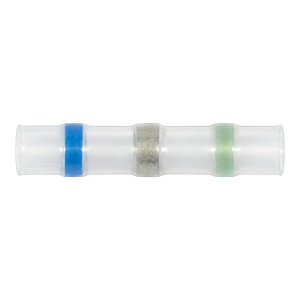

Solder Splice - 1.5 - 2.5mm - 25 Pack
Form a matching wire splice with the 1.5–2.5mm solder-splice connector, part 226380. The pack contains 25 connectors in this stated size range.
The connector combines heat-shrink material, low-melt solder and waterproofing glands to form an insulated waterproof connection. It is designed to avoid the need for a separate soldering iron, crimping tool or added solder.
Match the 1.5–2.5mm range to the connection being made and follow the product’s heating and assembly requirements. The size choice and completed seal are central to selecting and applying this connector.
Choosing and using this product
Allow enough space around the terminal for cable routing, strain relief and future inspection. Check that a ring or fork will sit properly at the connection without fouling nearby hardware. Where a cover is used, confirm clearance with the connection assembled.
Use the installation method and tooling intended for the terminal construction. Check the wire preparation and completed connection in accordance with the relevant instructions. Heatshrink, insulation and the metal contact perform different functions, so each part of the joint needs to suit the application.
Keep unused terminals labelled by conductor range and connection size. Similar colours or shapes can conceal differences in stud-hole diameter or wire capacity. Recording the selected part code helps maintain consistency when another circuit or repair needs the same termination.
Count each termination in the job before selecting the pack size. Include both ends where separate terminals are needed and keep the required styles distinct. A pack of identical terminals is convenient for repeated work, but it does not substitute for an assortment of different sizes.
Product details
- Product: Solder Splice - 1.5 - 2.5mm - 25 Pack
- Product code: 226380
- Solder splice combines heat-shrink, low-melt solder and waterproofing glands for an insulated waterproof connection without a soldering iron or crimping tool
- Pack Qty: 25
