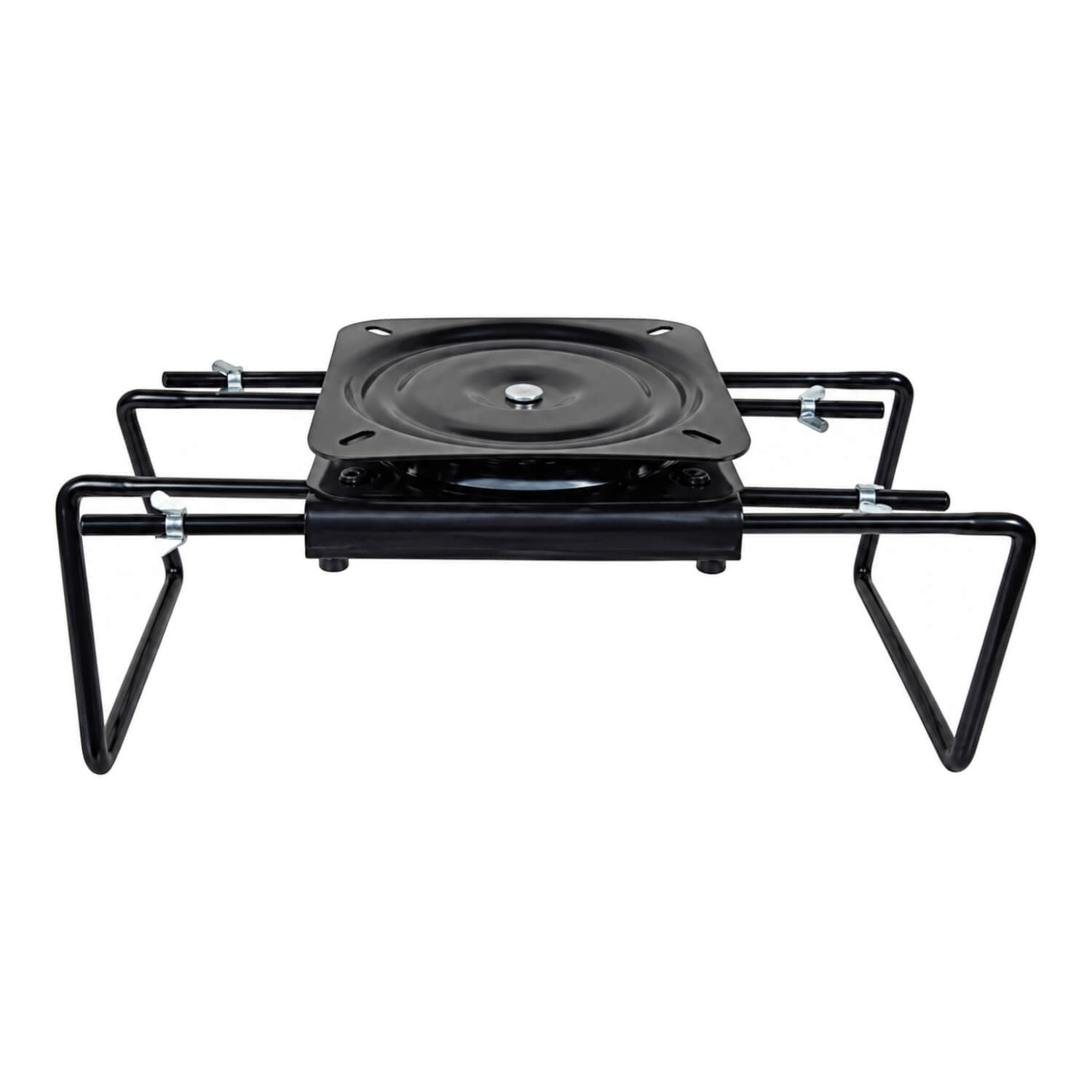

Seat Clamp and Swivel
Fit a boat seat to a suitable bench with this adjustable clamp and ball-bearing swivel assembly. Wing nuts adjust the clamp through its stated approximate 200–400 mm range, while non-slip covers sit over the black-plated steel frame.
Use product code 641842 to identify this exact component when checking its fit with the existing assembly.
The supplied swivel is 7 x 7 inches. Check both the bench shape and the seat fixing pattern before installation. The clamp arrangement allows removal or repositioning, so follow its fitting instructions whenever moving the seat.
Choosing and using this product
Match the connection at each end independently. The deck base must suit the mounting location, while the top must accept the intended seat or table fitting. A common-looking post diameter does not establish compatibility between every removable or locking system.
Work out the finished seating or table height before selecting a support. The pedestal height is only one part of the assembly; the top fitting, slide, seat base or tabletop also contributes to the final position. Compare the available adjustment with the intended use.
Allow space for any swivel, slide or release movement and check access to the adjustment controls. Nearby lockers, steering controls and walkways can influence the most useful position. Offer the complete arrangement into place before making permanent changes.
Inspect the deck support and fastening arrangement as part of the installation planning. Follow the relevant product and boat instructions, then include the attachment points and locking mechanisms in routine checks. Retain the model reference when compatible spare components may be needed later.
Check whether the listing supplies a full pedestal set or one replacement component. A base, post and top fitting may have separate product codes. Comparing the inclusions prevents a part-only purchase from being mistaken for a complete support assembly.
Product details
- Adjustable boat-seat clamp with 7 x 7-inch ball-bearing seat swivel.
- Non-slip covers over black-plated steel frame.
- Wing nuts adjust to approximately 200-400mm bench-seat clamping dimension.
- Allows quick seat removal or repositioning.
