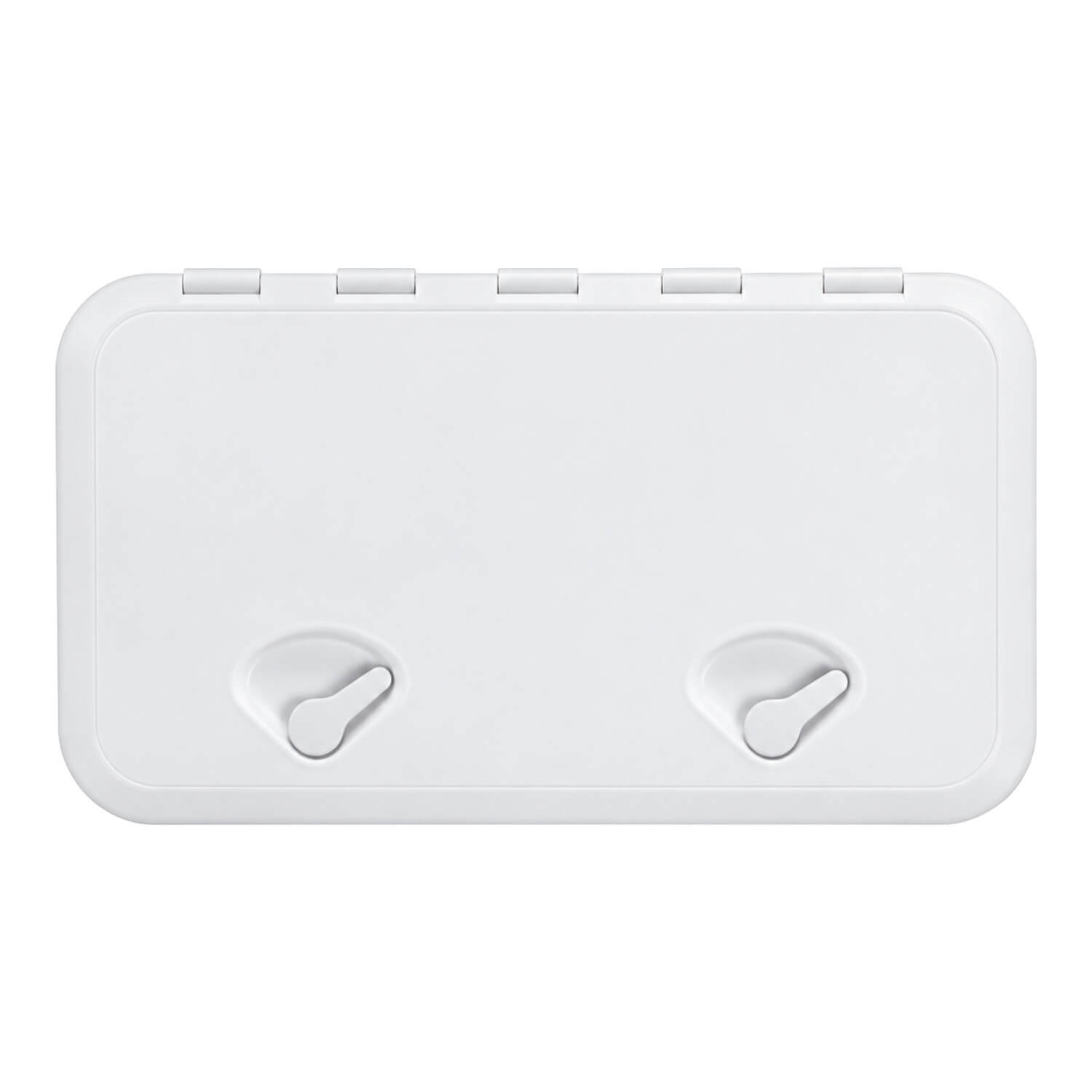

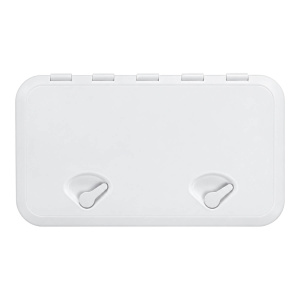

SEAFLO White Deck Hatch 510 x 460mm Marine Hardware Cabin Fitting
Create a neat access opening with the white SEAFLO 510 x 460mm deck hatch. It is designed for internal or external flat surfaces and uses heavy-duty, UV-stabilised ABS thermoplastic with a reinforced lid.
The broad 510 x 460mm format calls for a correspondingly clear area around the lid and frame.
The non-skid lid opens through 180 degrees, allowing it to move clear of the access area when the surrounding installation provides enough room. When closed, the lid completely covers the mounting flange for a low-profile, flush appearance. Recessed handles keep the operating points within the lid shape.
A rubber seal provides weatherproofing when the hatch is mounted vertically. Keep that orientation condition in mind when deciding where to install it; a non-skid surface by itself does not establish a walking-load rating or horizontal watertightness.
The dimensional references for this variant are L 510mm, H 460mm, L1 436mm and H1 383mm. Compare the complete hatch and the opening geometry with the proposed location. Confirm the fitting template or actual frame before cutting a new opening, rather than treating the outer dimensions as the cut-out.
This model has 2 recessed handles. Check clearance for operating both and for the lid’s full travel. On a replacement installation, also compare the flange coverage and existing fixing locations. Selecting the correct dimensions first helps retain convenient access without an oversized or poorly matched opening.
Choosing and using this product
Check the stated supply quantity and inclusions when ordering. Some listings describe an individual component, while others supply a pair, pack or complete assembly. Match any additional fixings and supporting parts to the installation requirements rather than assuming they accompany the visible fitting.
Product details
- Low-profile access hatch for internal or external flat surfaces.
- Heavy-duty UV-stabilised white ABS thermoplastic construction with reinforced non-skid lid.
- Lid opens 180 degrees and covers the mounting flange for a flush finish.
- Rubber seal provides weatherproofing when mounted vertically.
- Recessed handles: 2.
- Dimensions: L 510mm;
- H 460mm;
- L1 436mm;
- H1 383mm.
- Product code: 407323
