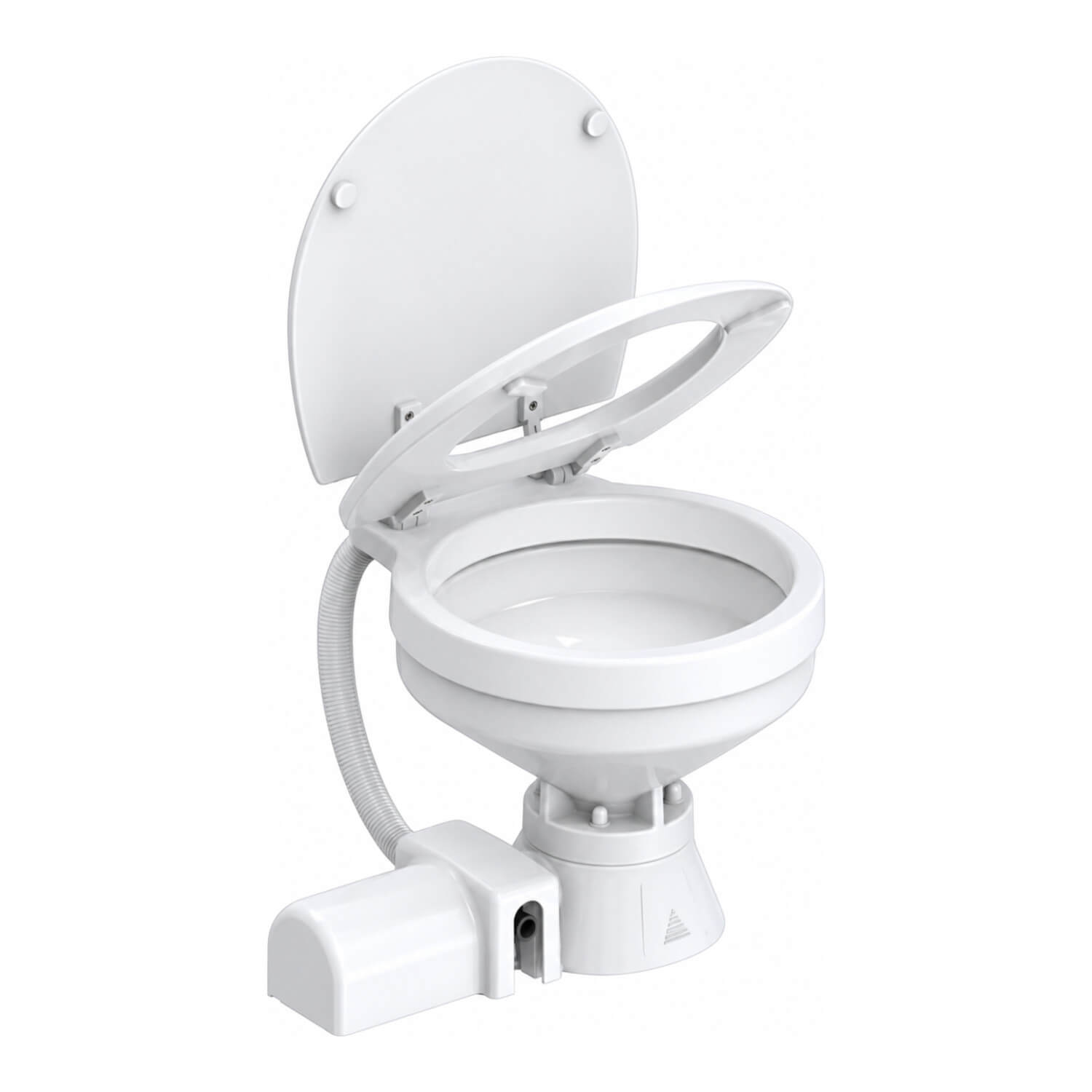

SEAFLO Compact Marine Toilet - 12v
Plan a practical onboard bathroom around the Compact Seaflo electric marine toilet. Product 385356 is the 12 V version, so match its operating format and connections to the boat’s installation.
A self-priming pump and backflow prevention form part of the design. The toilet can be installed above or below the waterline when the complete plumbing arrangement follows the manufacturer’s installation requirements. The presence of a backflow preventer does not remove the need to assess the installation as a whole.
Push-button flushing is controlled by the supplied switch panel with fuse. A fully enclosed permanent-magnet motor has a stainless steel shaft, and the self-priming macerator flush arrangement is designed for marine use.
The ceramic bowl has smooth, crevice-free contours for cleaning. A soft-close seat and left- or right-handed installation options help you compare the toilet with the available bathroom layout.
The flexible-impeller flush pump has an open-flow rating of 18.9 L/min. This is the pump flow figure rather than a water-per-flush quantity. Match the 3/4-inch inlet and 1-inch outlet to the intended plumbing.
Select the toilet by the actual layout and connections, allowing room to reach hoses and service components after installation. The model designation alone is not a substitute for checking dimensions and the position of the plumbing.
The Compact drawing distinguishes the 413.7 mm bowl depth from the 468 mm overall assembly depth. Allow for the full assembly when checking the bathroom space. Its 330 mm bowl width and 350 mm height provide the remaining main dimensions for comparison.
Product details
- Voltage: 12v
- Amp: 20A
- Connections: 3/4” Inlet - 1” Outlet
- Flush pump open flow: 18.9 L/min
- Bowl: ceramic
- Seat: soft close
- Installation: left or right handed
- Included: push-button flush panel with fuse
- Bowl width: 330 mm
- Height: 350 mm
- Bowl depth: 413.7 mm
- Overall assembly depth: 468 mm
- Base width: 182.2 mm
- Base height: 79.4 mm
- Inlet outer diameter: 19.5 mm
- Outlet diameter: 26.2 mm
- Product code: 385356
