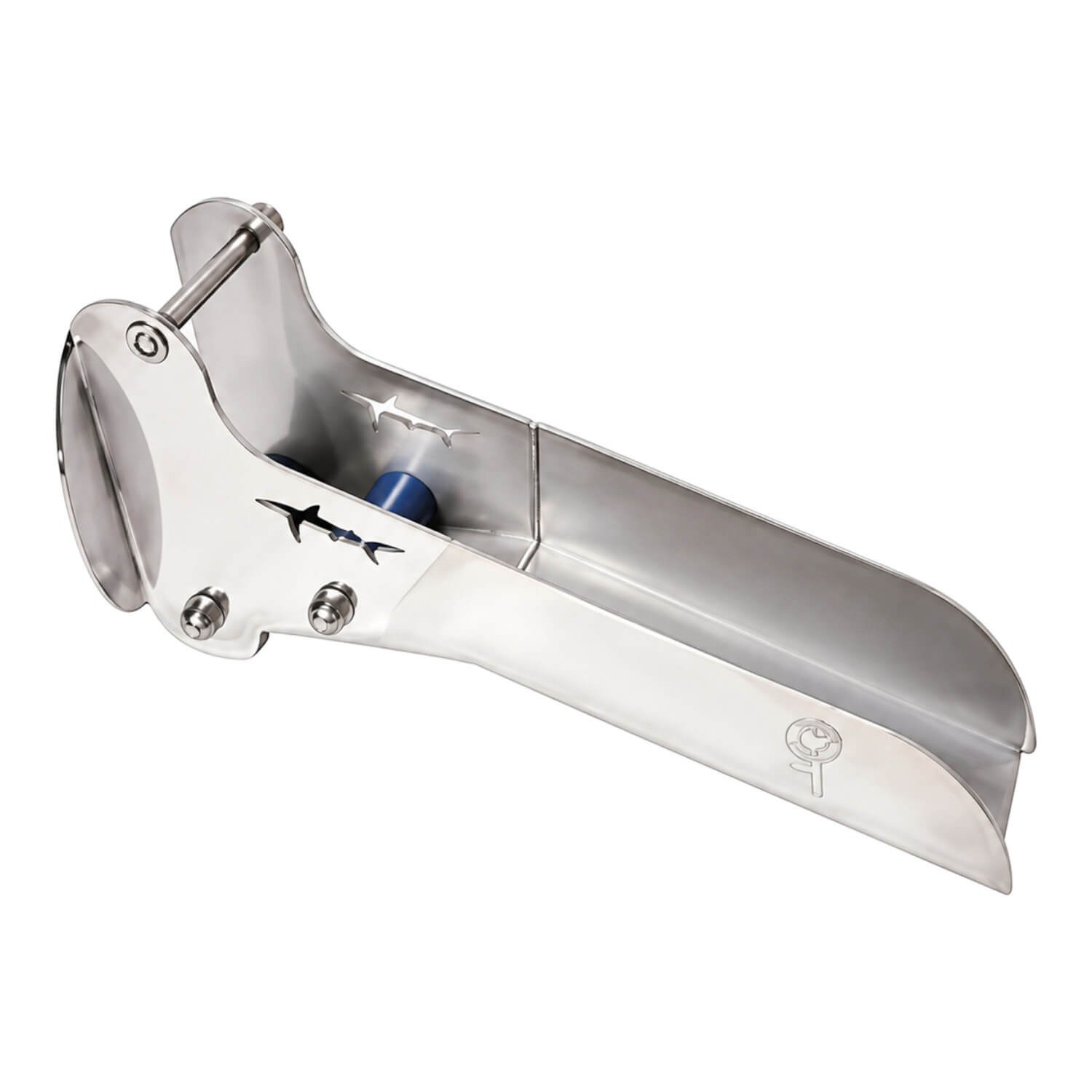

SARCA W5A S/S Bow Sprit
This SARCA bowsprit uses 316-grade stainless steel construction with a self-launching head and dual rollers. The arrangement is designed to align the anchor during retrieval and let it launch freely, while the rollers help reduce bruising and chafing of the anchor rope. Replaceable rollers also allow the rolling components to be serviced.
Its mounting-base length, head dimensions, side height and outside width are all relevant when checking the available bow space. Compare the stated anchor-weight limit and SARCA anchor-size range together; the largest capacity elsewhere in the range does not apply to every bowsprit. The supported anchor weight is a capacity figure, not the weight of the bowsprit itself.
This W5 configuration has its own mounting geometry and anchor capacity. The thumb-screw feature of smaller A1-2 and W3-4 models is not specified for this version.
Check the roller path and clearances with the actual anchor, rather than relying on a model name alone. The bowsprit is designed for a range of installations that may require adaptation, not a universal bolt-on fit. Use the exact measurements below to compare the component with your boat and existing mounting arrangement.
Choosing and using this product
Plan how the equipment will be reached, deployed and secured when not in use. Keep the connections accessible for inspection and follow the relevant anchoring-equipment instructions. A storage position should accommodate the complete assembly without trapping the rope beneath other gear.
For this version, compatible replacement captive nut: -. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Product details
- Product code: 402245
- Mounting Base Length: 285mm
- Self Launching Head: 110mm
- Side Height: 70mm
- Launching Head Depth: 200mm
- Outside Width: 108mm
- Maximum supported anchor weight: Up to 40kg
- Sarca Anchor Sizes: No. 5 to No. 8
- Compatible replacement captive nut: -
