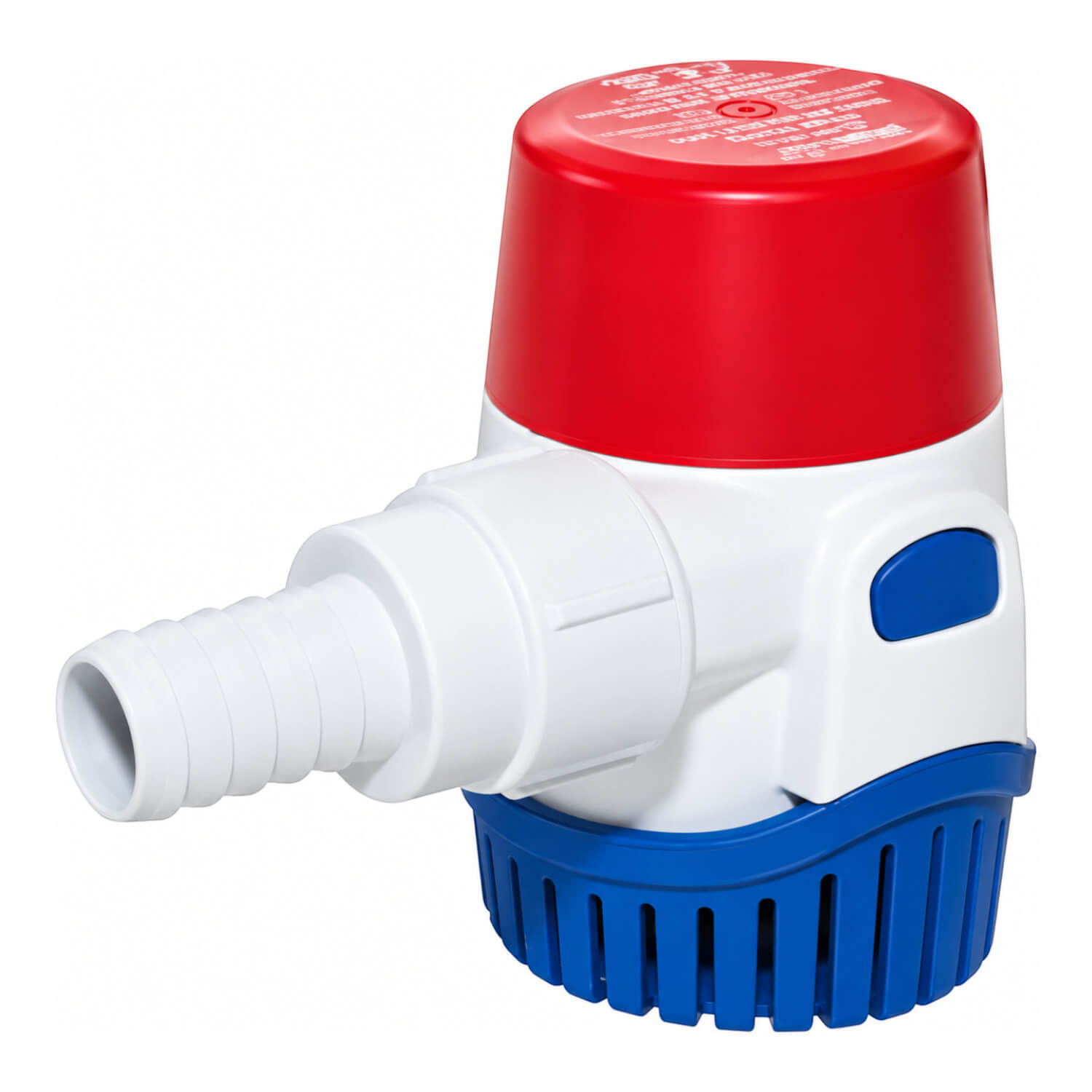

Rule Compact Bilge Pump - 1100GPH - 12v
Manage bilge water with this 12v Rule compact pump. Product 189209 is the 1100GPH version with a 25 or 28mm hose connection, giving you the key electrical and plumbing details to match to your boat.
This is a non-automatic pump. Choose a compatible Rule float switch if automatic bilge operation is required, and check the switch current rating against the pump installation.
A stainless steel shaft and water-cooled motor form part of the submersible design. The motor has ignition and TCO protection, and the snap-on strainer base gives access for cleaning.
Match the 12v electrical supply and 25 or 28mm discharge connection before choosing this code. Check the measured installation space against the listed pump dimensions, allowing access to the strainer and hose connection.
Choosing and using this product
A flow figure alone does not describe the complete installation. Hose routing, outlet height and the rest of the plumbing can affect the delivered result. Use the relevant pump guidance when sizing the system rather than treating a catalogue flow figure as a guaranteed output at every outlet.
For this version, size: 112 x 74 x 64mm. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Compare the package contents with the complete installation you are planning. Pump-only listings and kits can differ in switches, fittings and hoses. Listing the required components before ordering helps you select the appropriate package and avoids treating an illustrated accessory as an included part.
Select the pump or service component for the actual job: bilge drainage, fresh water, washdown, livewell circulation and waste handling place different demands on a system. Match the stated application first, then compare the power supply, connections and operating details for this exact version.
Product details
- Capacity: 1100GPH
- Hose Size: 25 or 28mm
- Voltage: 12v
- Size: 112 x 74 x 64mm
- Product code: 189209
