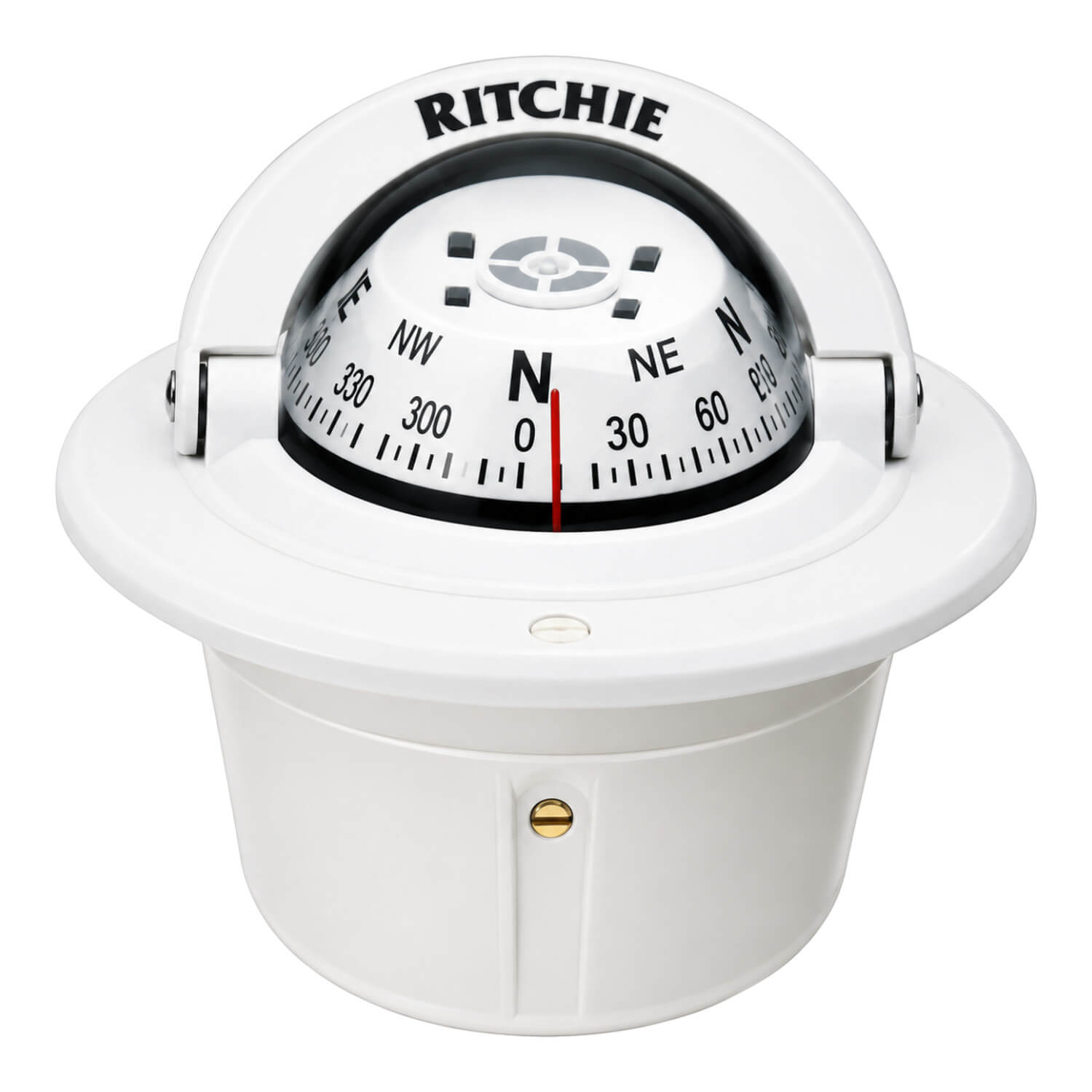

Ritchie Explorer Flush Mount Compass - White
The white Explorer flush compass gives a light-coloured face surround for a panel installation. Its mounting-hole requirement and below-panel body distinguish it from the white surface-mount option. Compare the flange, rear clearance and raised sun-shield space before choosing this version.
A marine compass provides a magnetic heading reference, so its position and compensation matter alongside the dial size. Choose a location where the intended reader can see the heading clearly, and follow the installation instructions to assess magnetic influences from nearby equipment. A convenient physical mounting point is only part of selecting a suitable position.
The movement and housing features in the specifications identify this particular model. Compare them with the required mounting arrangement rather than assuming that all compasses in the same family share the same footprint. Where night lighting is specified, account for its connection separately from the compass’s magnetic heading function.
Use the overall dimensions to check the surrounding space and any sun-shield movement. A stated body or flange dimension is not automatically the installation cut-out size. Confirm the current fitting template and actual unit before cutting a panel or drilling the mounting surface. This is particularly useful when replacing a compass that looks similar but has a different lower body or base.
Select the exact dial style, mounting type and finish listed here. Together, those details determine how the compass fits the helm and how its heading can be viewed. The specification list keeps the model’s features and approximate envelope measurements together for comparison.
Product details
- 2 3/4 inch (70mm) direct-reading dial.
- Fits a 3.75 inch (9.53cm) mounting hole.
- Replacement mounting gasket available; confirm supply separately.
- High-temperature composite construction for an extended operating range.
- Internal green night illumination, built-in compensators for deviation adjustment, matched sapphire jewel and hardened steel pivot movement, DirectiveForce magnets and movable sun shield.
- 5-year Ritchie manufacturer warranty, subject to terms.
- Envelope dimensions: approximately 4.6 inches flange diameter, 1.6 inches above the panel (2.3 inches with sun shield raised), 2.2 inches below the panel and 3.4 inches lower-body diameter.
- Colour/variant: White.
