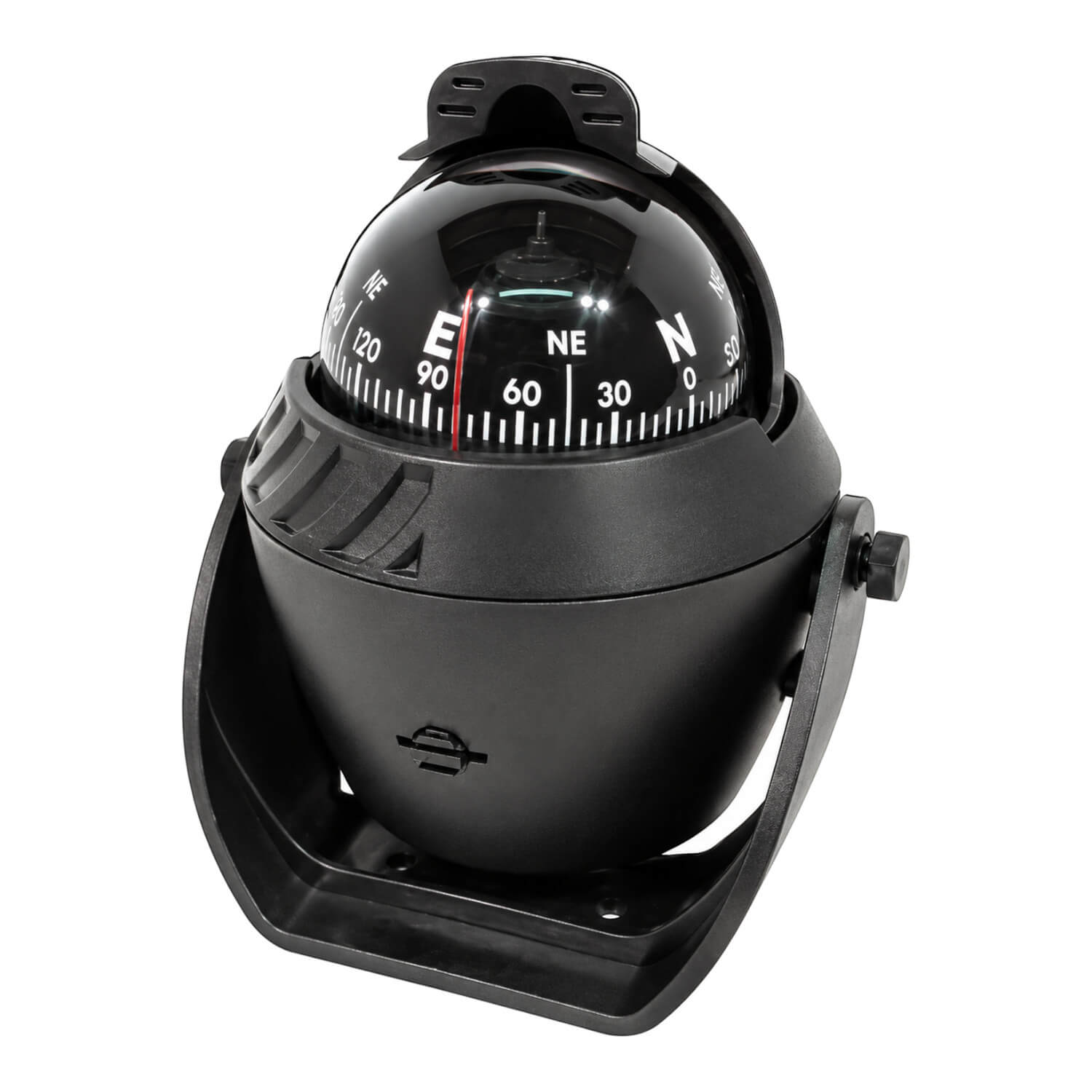

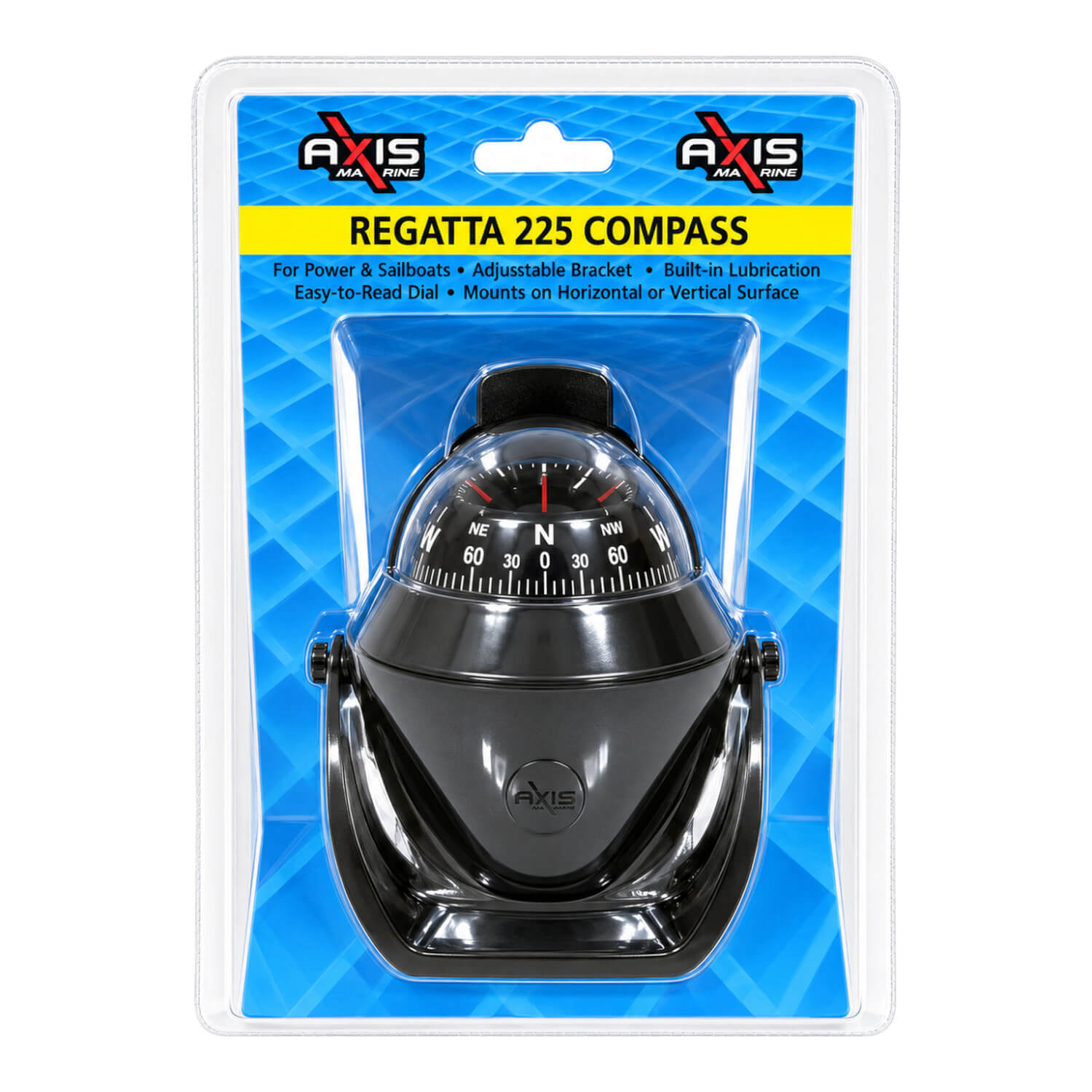

Regatta 225 Compass - Black
Choose the Regatta 225 for a larger 65 mm apparent card with 12 V red illumination. The individually balanced dial and adjustable sun visor add features beyond the smaller Regatta entries. Check both its taller 136 mm body and the lighting supply when planning the installation.
Five-degree graduations give the card its stated scale, with a vibration-dampened capsule and adjustable compensators completing the listed features. The sun visor and red night illumination are useful differences to compare with the smaller Regatta models.
Bracket or adhesive-pad mounting is specified. Assess the mounting surface, viewing position and lighting connection before installation. Use the full height, width and depth figures for space planning; the apparent card diameter is only the dial-size reference. Follow the fitting and compensation instructions rather than assuming any convenient surface will provide an accurate heading.
Choosing and using this product
For this version, colour/variant: Black. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
For a replacement, compare the existing footprint and the supplied mounting hardware. A similar dial diameter does not mean every housing uses the same cut-out. Keep enough access for installation and any adjustment described for the model.
Follow the compass installation instructions when selecting a location, including guidance about nearby magnetic and electrical influences. The finished position should be assessed with the surrounding equipment in place rather than by looking at the empty mounting area alone.
Retain the model reference and fitting instructions with the boat’s navigation-equipment records. After installation, carry out the checks specified for the compass and its intended use. Keep the viewing area clear and include the mounting security in routine inspections.
Product details
- Adjustable compensators, vibration-dampened capsule, bracket or adhesive-pad mounting and 5-degree graduations.
- Apparent card diameter: 65mm.
- Dimensions: 136(H) x 113(W) x 94(D)mm.
- Individually balanced dial, 12V red illumination and adjustable sun visor.
- Colour/variant: Black.
