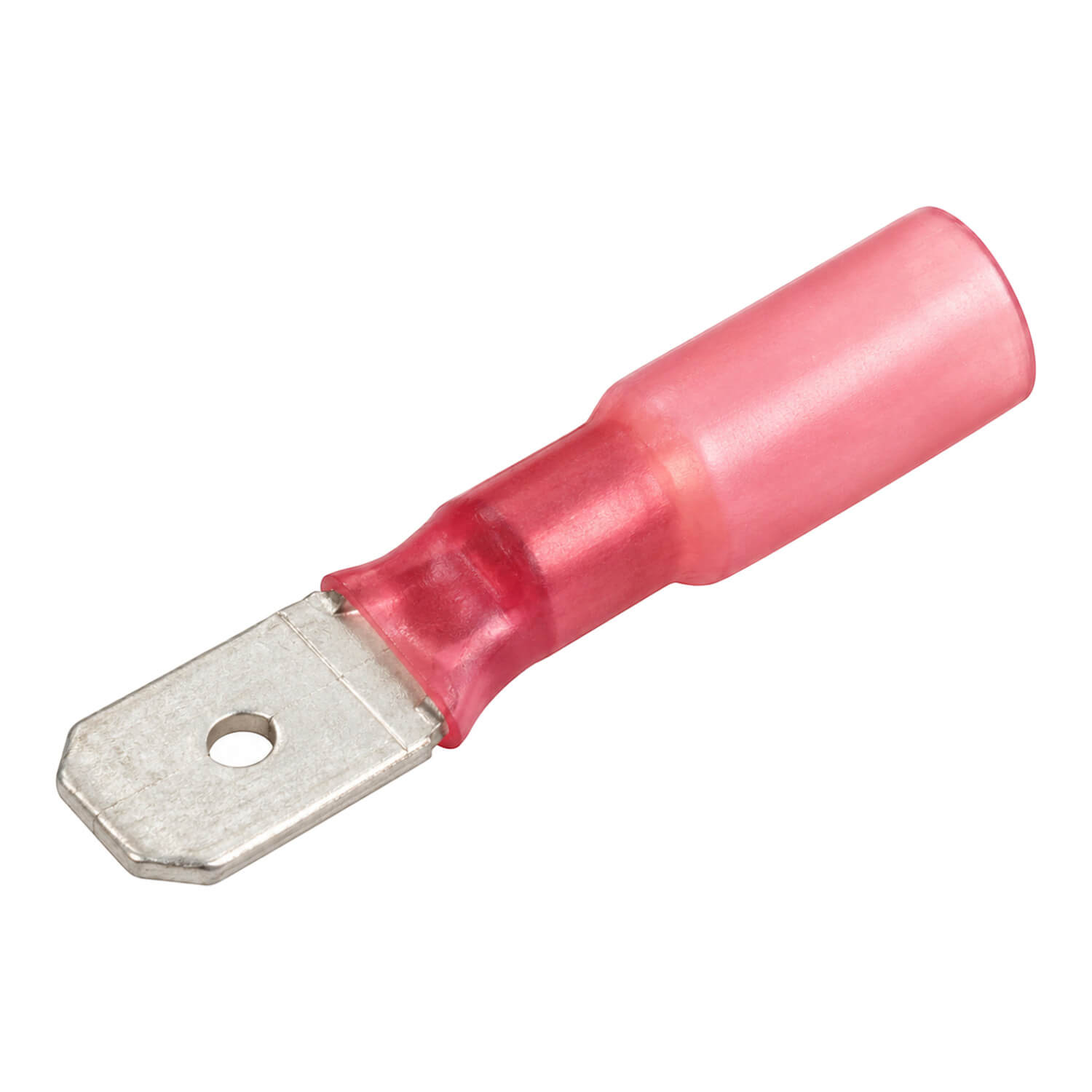

Red Male Blade Heatshrink Terminal - 50 Pack
Make a matching electrical connection with this red heat-shrink male blade terminal, part 226220. This selection contains 50 pieces.
The red terminal colour corresponds to the 2.5–3mm nominal cable range. Check the matching blade connection and conductor fit before termination.
The 50-piece pack keeps the same terminal variant together for repeated connections. Plan the required number of matching terminations before starting the wiring work.
The adhesive-lined construction combines crimping, shrinking and internal adhesive to support strain relief and seal the cable entry against water and dust. Use a termination method appropriate to this terminal construction.
Choosing and using this product
For this version, colour: Red. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Keep unused terminals labelled by conductor range and connection size. Similar colours or shapes can conceal differences in stud-hole diameter or wire capacity. Recording the selected part code helps maintain consistency when another circuit or repair needs the same termination.
Count each termination in the job before selecting the pack size. Include both ends where separate terminals are needed and keep the required styles distinct. A pack of identical terminals is convenient for repeated work, but it does not substitute for an assortment of different sizes.
Use the installation method and tooling intended for the terminal construction. Check the wire preparation and completed connection in accordance with the relevant instructions. Heatshrink, insulation and the metal contact perform different functions, so each part of the joint needs to suit the application.
Product details
- Product: Red Male Blade Heatshrink Terminal - 50 Pack
- Product code: 226220
- Adhesive-lined heat-shrink terminals
- Crimping, heat-shrink and internal adhesive provide strain relief and seal against water and dust
- Pack of 50
- Colour: Red.
- Nominal cable range: 2.5–3mm.
