Red Illuminated Bilge Pump Mini Switch Panel

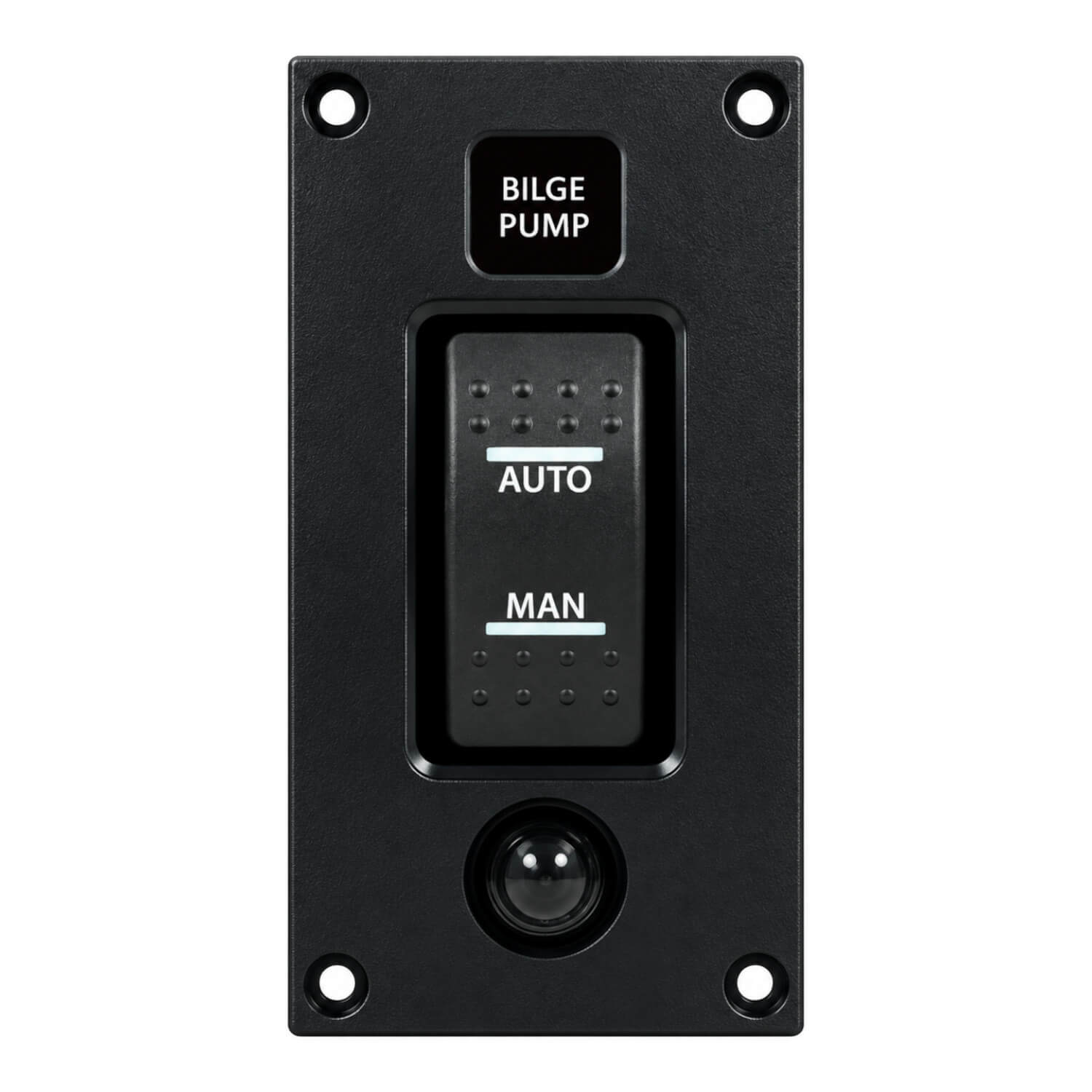

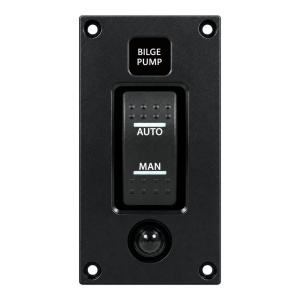

Give your bilge pump controls a dedicated panel with Red Illuminated Bilge Pump Mini Switch Panel. Product 702197 uses the switching arrangement below, so you can match the panel to the intended pump circuit and available mounting space.
Red LED illumination identifies the switch, while a 20 A push-button circuit breaker is incorporated in the panel. Its format matches panels 702190 and 702192.
Check the available panel depth as well as the face dimensions. Select the control function for the actual pump arrangement; the panel itself does not replace a required water-level switch.
Choosing and using this product
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Product details
- Illumination: red LED
- Circuit breaker: 20 A push-button
- Overall size: 114 x 54 x 75 mm
- Cut-out: 105 x 45 mm
- Matching panels: 702190 and 702192
- Product code: 702197
