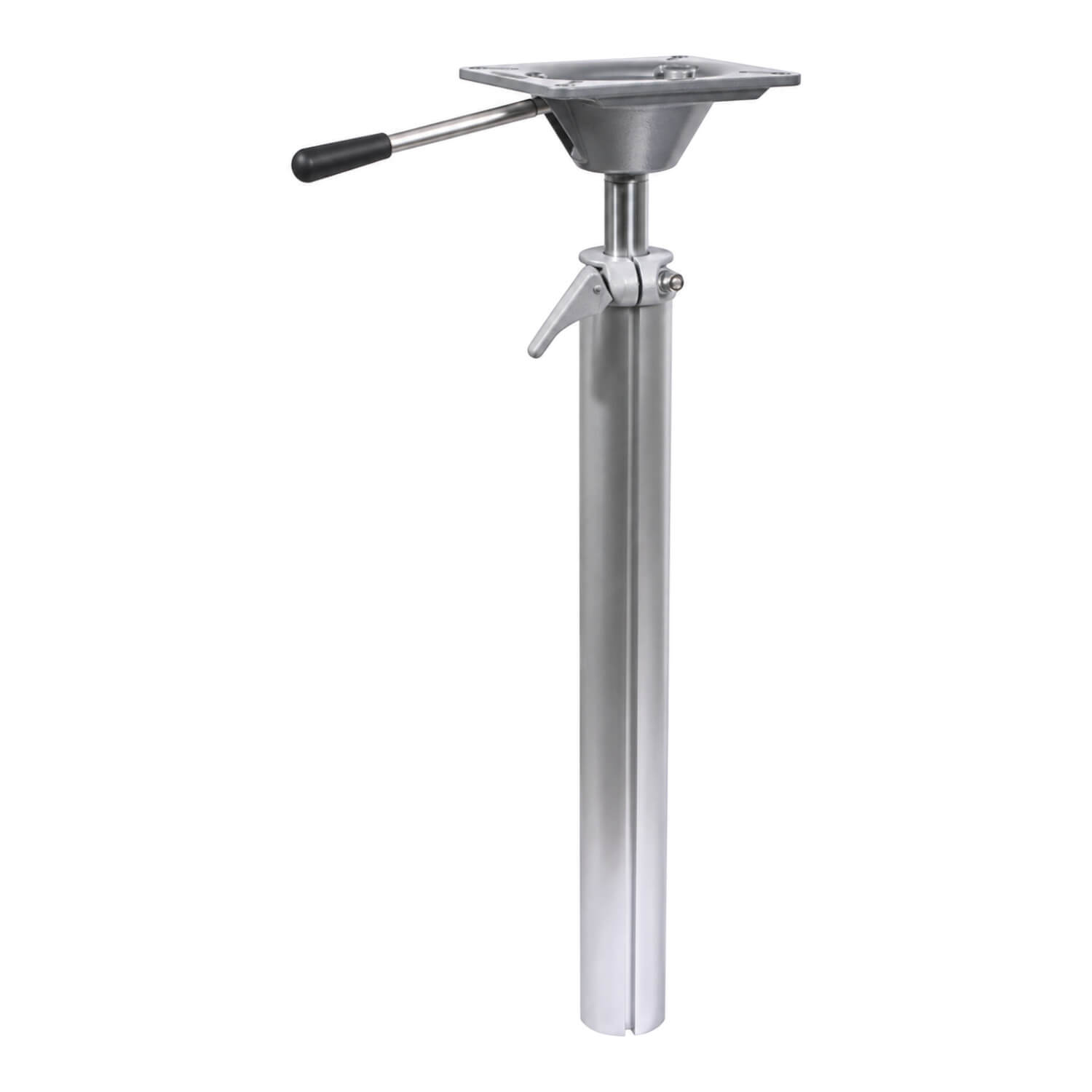

Plug In Power Pedestal - Adjustable 13.5-20 Inches
This plug-in power pedestal combines gas-operated height adjustment with air-ride suspension. Its seat position is angled by 6 degrees, and the top provides 360-degree swivel movement.
The selected configuration for code 640743 is Adjustable 13.5-20 Inches. Use that exact size or fitting when matching this component to the planned installation.
Choose the exact adjustment range to suit the intended seating position. The base is purchased separately, so match it to the plug-in system and confirm the complete installation height with the seat fitted.
The shaft is chromed mild steel. The stated limitations include heavy salt spray and dust, so assess the expected conditions before selecting this model. Do not transfer the material specification of an all-aluminium post to the gas shaft.
Choosing and using this product
Inspect the deck support and fastening arrangement as part of the installation planning. Follow the relevant product and boat instructions, then include the attachment points and locking mechanisms in routine checks. Retain the model reference when compatible spare components may be needed later.
Match the connection at each end independently. The deck base must suit the mounting location, while the top must accept the intended seat or table fitting. A common-looking post diameter does not establish compatibility between every removable or locking system.
Check whether the listing supplies a full pedestal set or one replacement component. A base, post and top fitting may have separate product codes. Comparing the inclusions prevents a part-only purchase from being mistaken for a complete support assembly.
Allow space for any swivel, slide or release movement and check access to the adjustment controls. Nearby lockers, steering controls and walkways can influence the most useful position. Offer the complete arrangement into place before making permanent changes.
Product details
- Gas-operated height adjustment with air-ride suspension, 6-degree angled seat position and 360-degree swivel.
- 2 3/8-inch post with chromed mild-steel shaft.
- Matches plug-in bases; base purchased separately.
- Chromed mild-steel shaft may not suit heavy salt spray, dust or all conditions.
- Adjustable 13.5-20 Inches.
