6 Gang Vertical Switch Mounting Panel

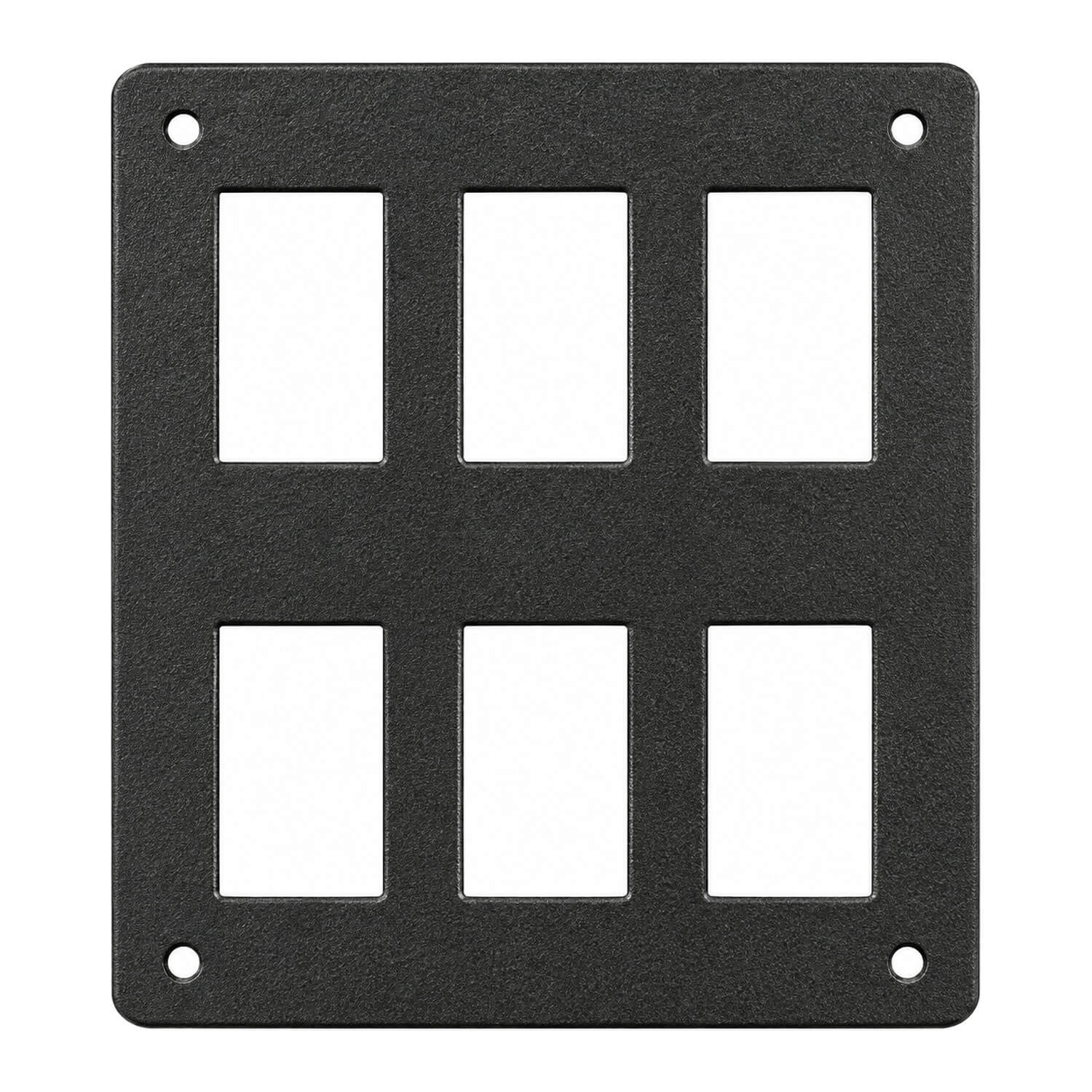

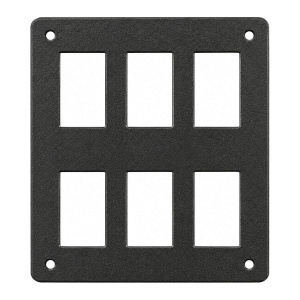

Lay out 6 C7/Contura-style rocker-switch positions with mounting panel 709797. This vertical panel measures 103 x 124mm, giving you a defined footprint for a custom control arrangement.
A 3mm-thick panel and black ripple finish form the visible mounting surface. The 6-gang vertical layout determines the space needed at the dash or console.
This item is a mounting panel, allowing the matching switches and actuators to be chosen for the required functions. Compare the overall dimensions, switch style and rear wiring clearance before completing the installation.
Choosing and using this product
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Product details
- Product: 6 Gang Vertical Switch Mounting Panel
- Product code: 709797
- Mounting panel for C7/Contura-style rocker switches
- Thickness: 3mm
- Black ripple finish
- Dimensions: 103 x 124mm
