6 Gang Buss Bar

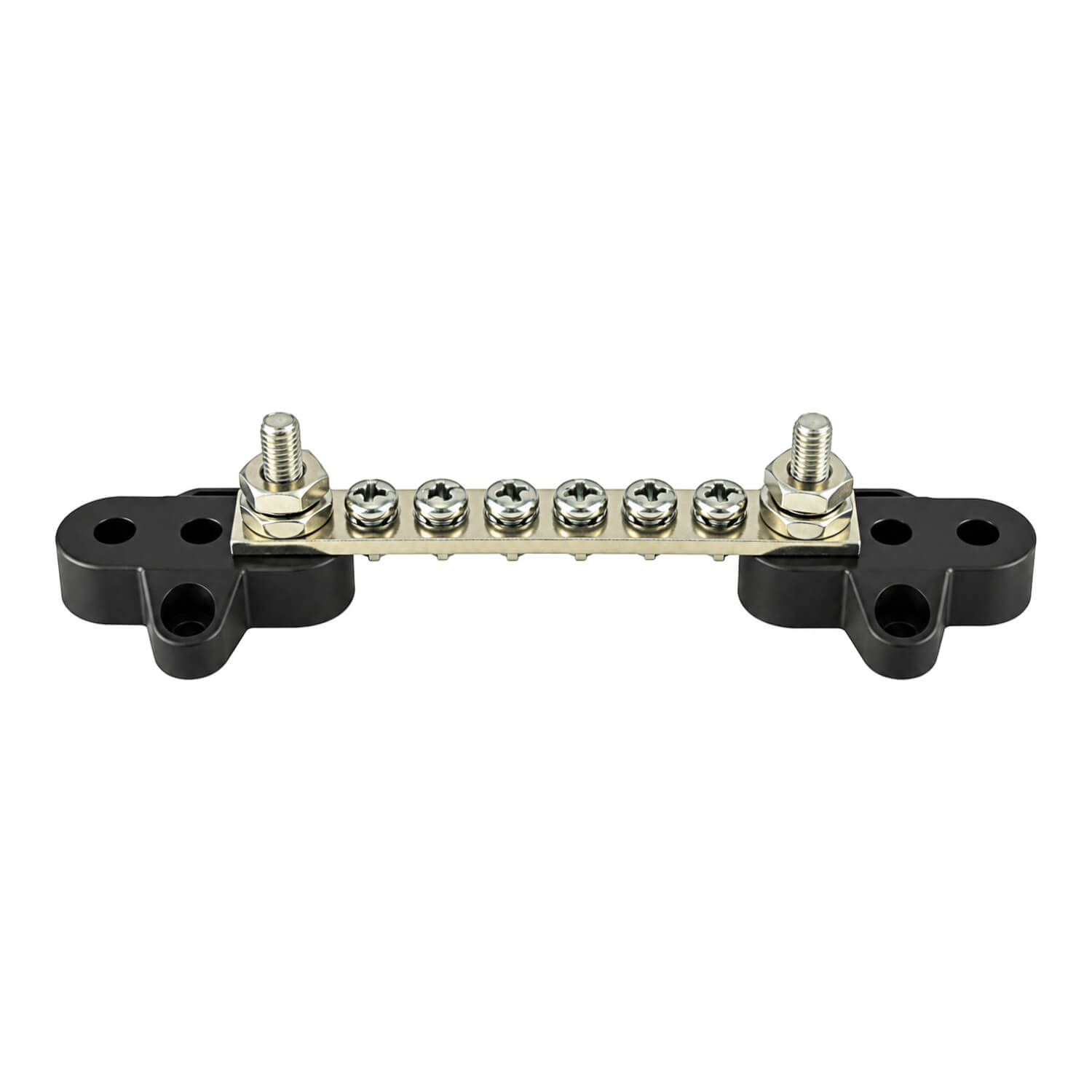

Bring multiple wires to a common connection with this 6-gang tinned bus bar, part 220162. Insulated mounts support the bar in the chosen installation position.
The 6-gang format determines the number of connection positions. Its maximum total current is 100A, so assess the combined load across the bar rather than treating that figure as an allowance for each terminal.
Match the cable terminals and mounting arrangement to the installation, and keep the common electrical connection consistent with the intended distribution layout.
Choosing and using this product
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Product details
- Product: 6 Gang Buss Bar
- Product code: 220162
- Common tinned bus bar with insulated mounts for connecting multiple wires to one point
- Maximum total current: 100A
