6 Gang Horizontal Switch Panel

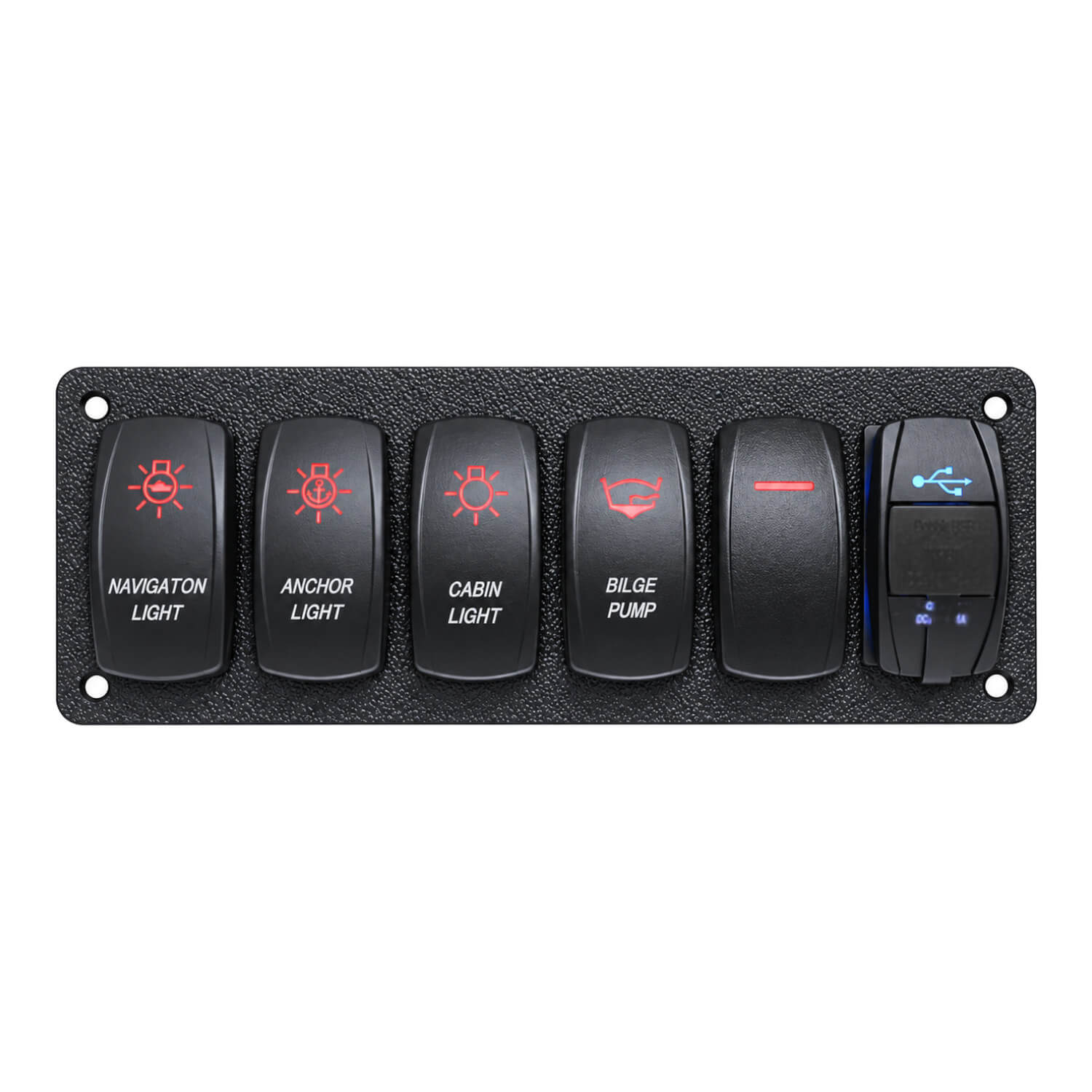

Organise your boat’s controls with this 6-gang horizontal rocker-switch panel. Part 709708 brings together positions for bilge pump, anchor light, navigation light, cabin light, a blank position and a USB charging port, providing a defined layout to compare with your boat’s electrical accessories.
The horizontal format is an important part of the selection. Check the panel dimensions against the dash or console space, and allow room behind it for the wiring. The supplied labels and switch positions help you plan which circuit belongs at each control before installation.
Red LED illumination and laser-etched rocker actuators make the panel’s functions identifiable at the control surface. The actuators can be changed when a different legend is required, while the switch action and wiring still need to match the circuit being controlled.
The assembly includes a positive-feed wire with a fuse holder and an earth wire for switch illumination. Fuses are not supplied. Choose the circuit protection and complete the connections to suit the actual connected equipment, rather than treating the panel layout as a universal wiring scheme.
Keeping the listed functions together gives a coherent control area for the installation. Compare the number of positions and the specific legends with your equipment list, including any spare or charging position, so that the chosen panel meets the planned layout.
Part 709708 is the complete 6-gang panel in the horizontal arrangement shown by its specifications. When replacing an existing panel, compare overall dimensions and connection clearance as well as the visible switch labels.
Product details
- Product: 6 Gang Horizontal Switch Panel
- Product code: 709708
- Panel with red LED illuminated, laser-etched rocker switches
- Supplied with positive feed and fuse holder (fuses not supplied), plus earth wire for switch illumination
- Actuators can be changed
- Switches: Bilge Pump, Anchor Light Nav Light, Cabin Light Blank, USB Charging Port
- Dimensions: 190 x 67mm
