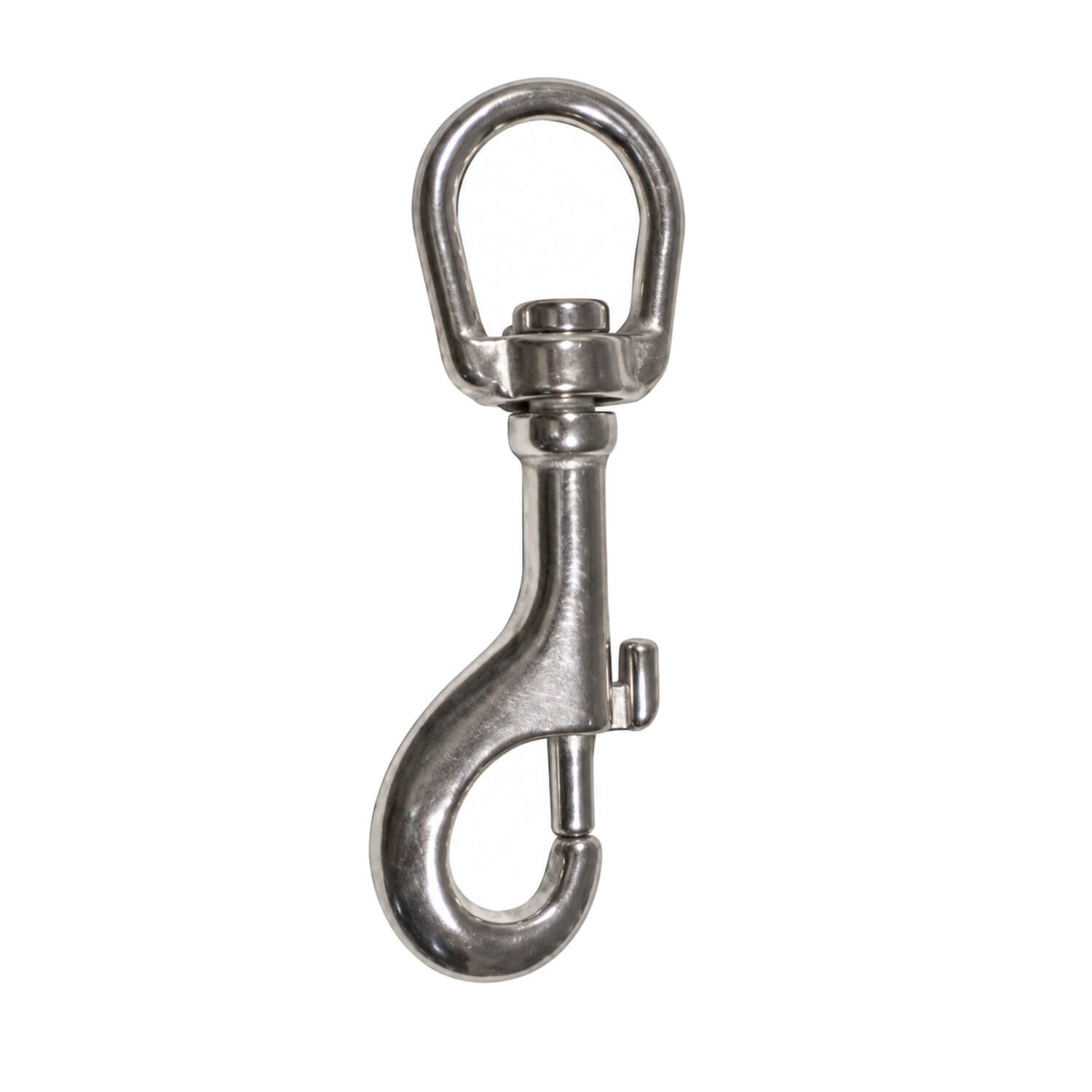

316 Stainless Steel Swivel Eye Bolt Snap - Bulk - A (mm): 92
This 316-grade stainless-steel swivel eye bolt snap provides the fitting style identified by this code. The swivel eye and sliding bolt closure combine an opening hook with a rotating attachment eye.
Compare the stated dimensions with the actual attachment points and required clearance. Different hook styles can have similar nominal sizes while using different openings and load figures. Select the complete geometry rather than relying on a size name alone.
The TDL figure below is not a stated working load limit. Confirm the required rating for the complete application before using this fitting in a load-critical arrangement.
Choosing and using this product
Plan access for assembly, adjustment and routine inspection. The connection should be arranged so adjoining parts do not prevent its intended movement or closure. Once assembled, inspect the fitting and surrounding hardware together, especially where there has been wear, deformation or a difficult loading event.
For workshop or refit orders, check the sales quantity as well as the size. A retail pack and a bulk listing may contain different numbers of the same style of fitting. Keep spare components labelled so pin sizes, thread forms and material grades remain easy to identify.
Where stainless steel is specified, match the stated grade and the adjoining materials when planning the installation. The grade identifies the material selection; it does not by itself establish a load capacity or make every fastening arrangement suitable. Check the complete assembly and its intended application together.
Look at both sides of the proposed connection before choosing a rigging fitting. The opening, pin or thread must suit the adjoining components, while the body needs sufficient clearance to sit as intended. A larger nominal size is not automatically the best fit for a confined connection.

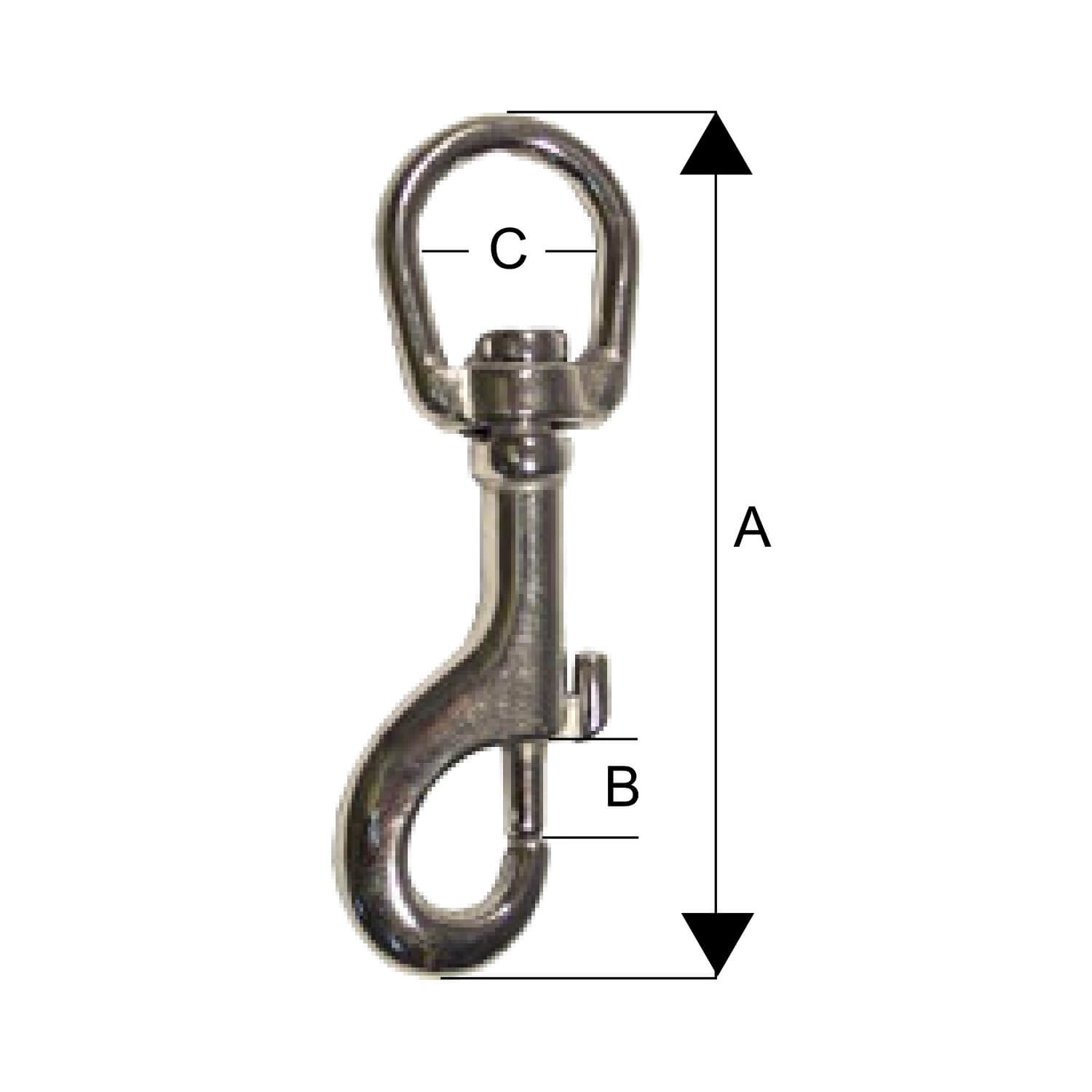

Product details
- Product code: SS225
- A (mm): 92
- B (mm): 13
- C (mm): 20
- TDL (kg): 190
- Supply format: bulk
