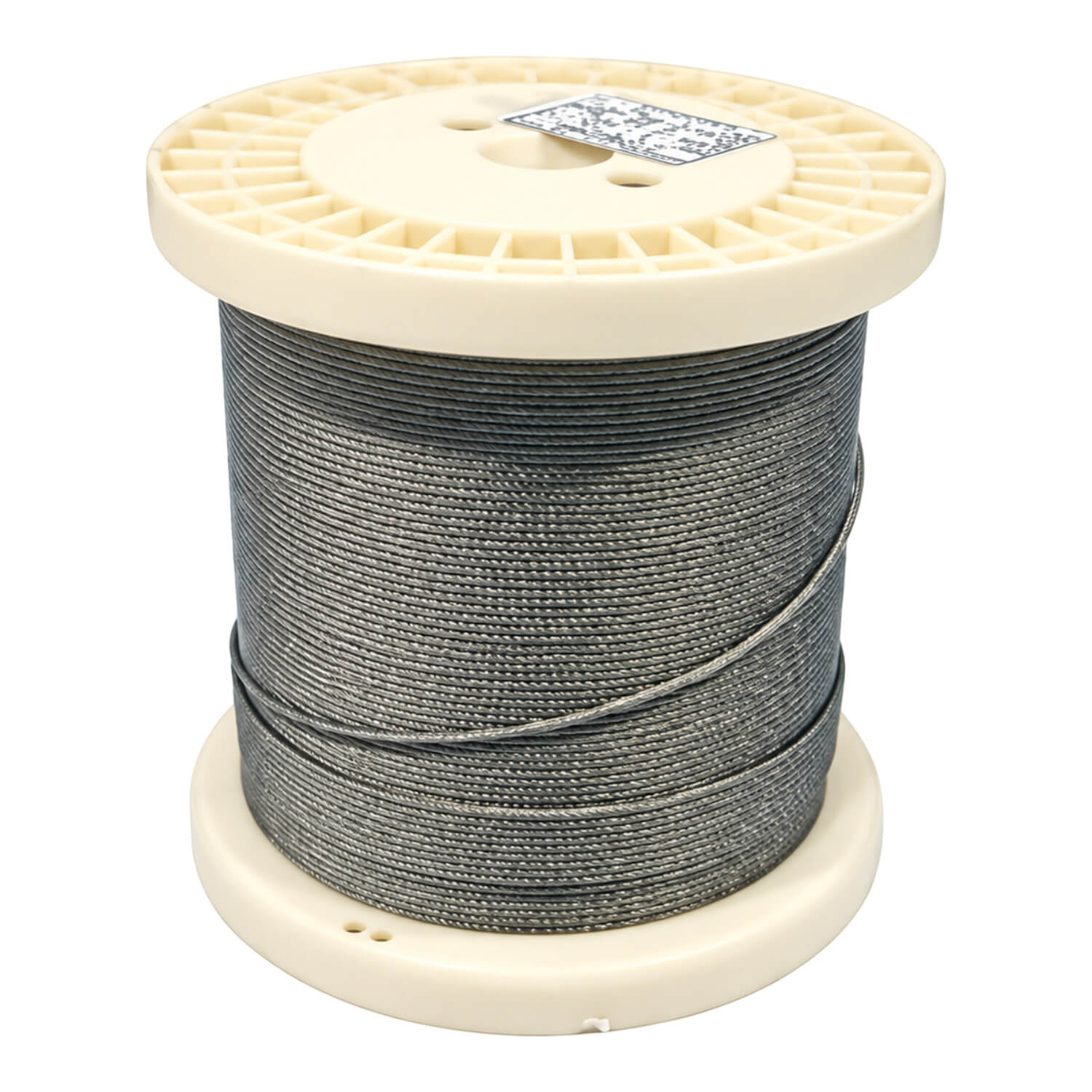

316 Stainless Steel Wire Rope 7x19 - Full Roll - 1/8” x 305m
This 316-grade stainless-steel wire rope uses 7x19 construction. The flexible 7×19 arrangement is suited to running rigging, hand crimping and applications requiring turns.
Check the wire size and whether this code is sold per metre or as a full roll. Full-roll lengths vary, including among products with the same diameter. The breaking-strain figure is not a working load limit, and the termination method must suit the wire construction and intended assembly.
Choosing and using this product
For this version, size: 1/8”. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
For workshop or refit orders, check the sales quantity as well as the size. A retail pack and a bulk listing may contain different numbers of the same style of fitting. Keep spare components labelled so pin sizes, thread forms and material grades remain easy to identify.
Plan access for assembly, adjustment and routine inspection. The connection should be arranged so adjoining parts do not prevent its intended movement or closure. Once assembled, inspect the fitting and surrounding hardware together, especially where there has been wear, deformation or a difficult loading event.
Use the stated material and dimensions to compare this version with the part being replaced. Thread direction, closure style and the shape of the attachment points can matter as much as overall length. Check those details against the actual assembly rather than a photograph alone.
Look at both sides of the proposed connection before choosing a rigging fitting. The opening, pin or thread must suit the adjoining components, while the body needs sufficient clearance to sit as intended. A larger nominal size is not automatically the best fit for a confined connection.
Product details
- Product code: 947030
- Size: 1/8”
- Construction: 7x19
- Breaking strain (kg): 750
- Roll Length: 305m
- Supply format: full roll only
