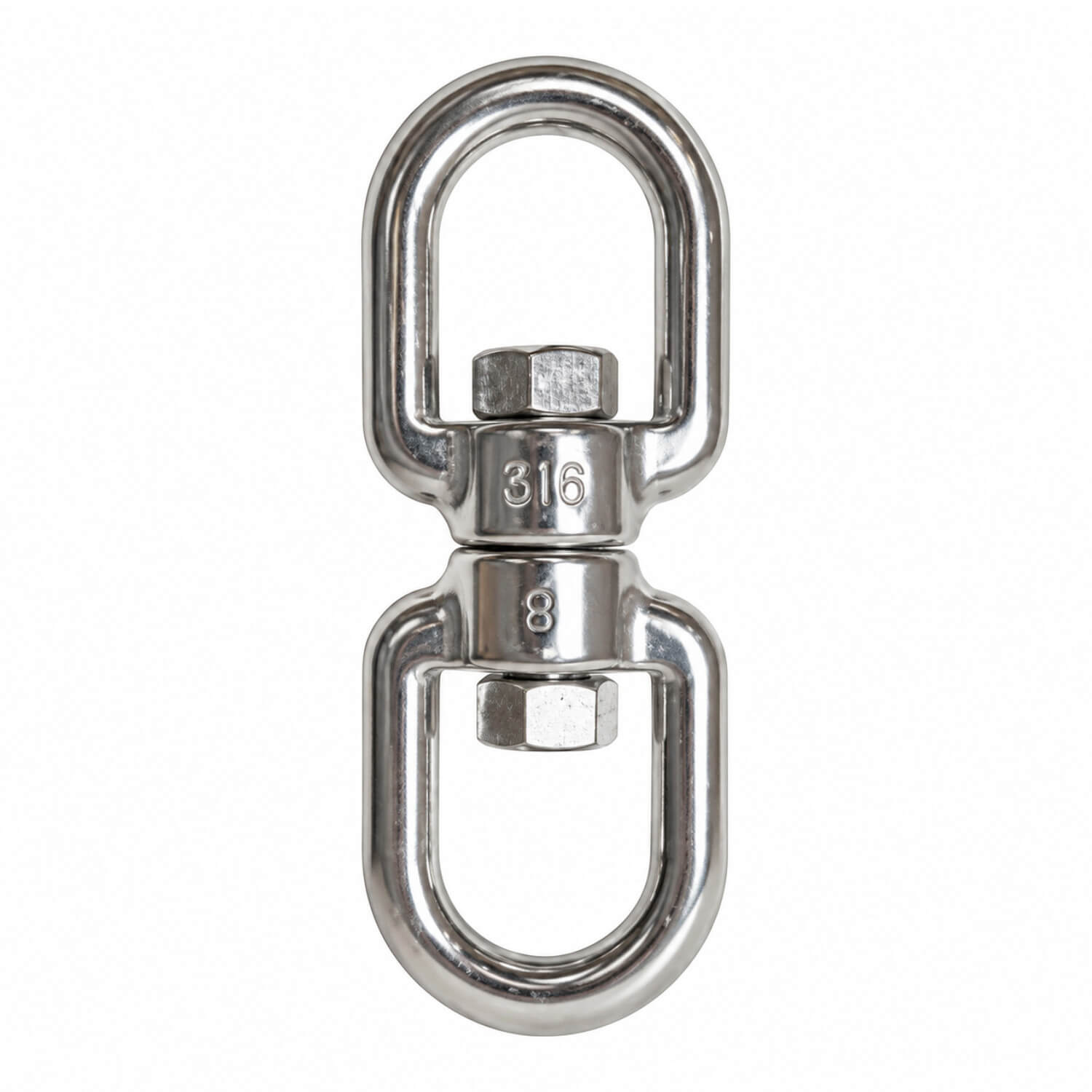

316 Stainless Steel Eye and Eye Swivel - D: 8 mm
Add a rotating connection using a 316 stainless steel swivel with an eye at each end. This eye-and-eye arrangement gives you two closed attachment points and a compact central swivel body.
The selected model combines an 8 mm D dimension with a 90 mm L measurement and a 35 mm B dimension. These measurements identify this size within the range.
Let the connection accommodate a change in orientation
A swivel adds rotational movement between the components it joins. That can be useful when the line or hardware needs to turn without relying on the entire assembly changing position. The particular end fittings determine how the swivel is connected, so compare them with the hardware at both sides of the proposed installation.
Leave clearance around the moving section and ensure adjoining parts do not prevent the intended movement. When reviewing an existing assembly, check the swivel body, connection points and any pins together. Keep the moving area accessible for routine cleaning and inspection. Use the stated dimensions and any supplied load guidance for this exact version when selecting associated hardware.
Selection details
Allow for the adjoining connectors when checking the fit through each eye. Compare all dimensions and the suggested working load for the selected size. The overall assembly must accommodate the swivel’s movement as well as the hardware attached to it.
The suggested working load is 500 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
When matching existing equipment, keep the exact product code with the dimensions you have checked. Similar-looking fittings can differ in their opening, material section or connection style. Comparing the full specification before ordering makes it easier to select a replacement that fits the arrangement you already have and remains straightforward to maintain.
Specifications
- Product code: RWB2454
- D: 8 mm
- L: 90 mm
- A: 22 mm
- B: 35 mm
- C: 20 mm
- SWL (suggested working load): 500 kg
