316 Stainless Steel Bow Shackle - Bulk - 12mm

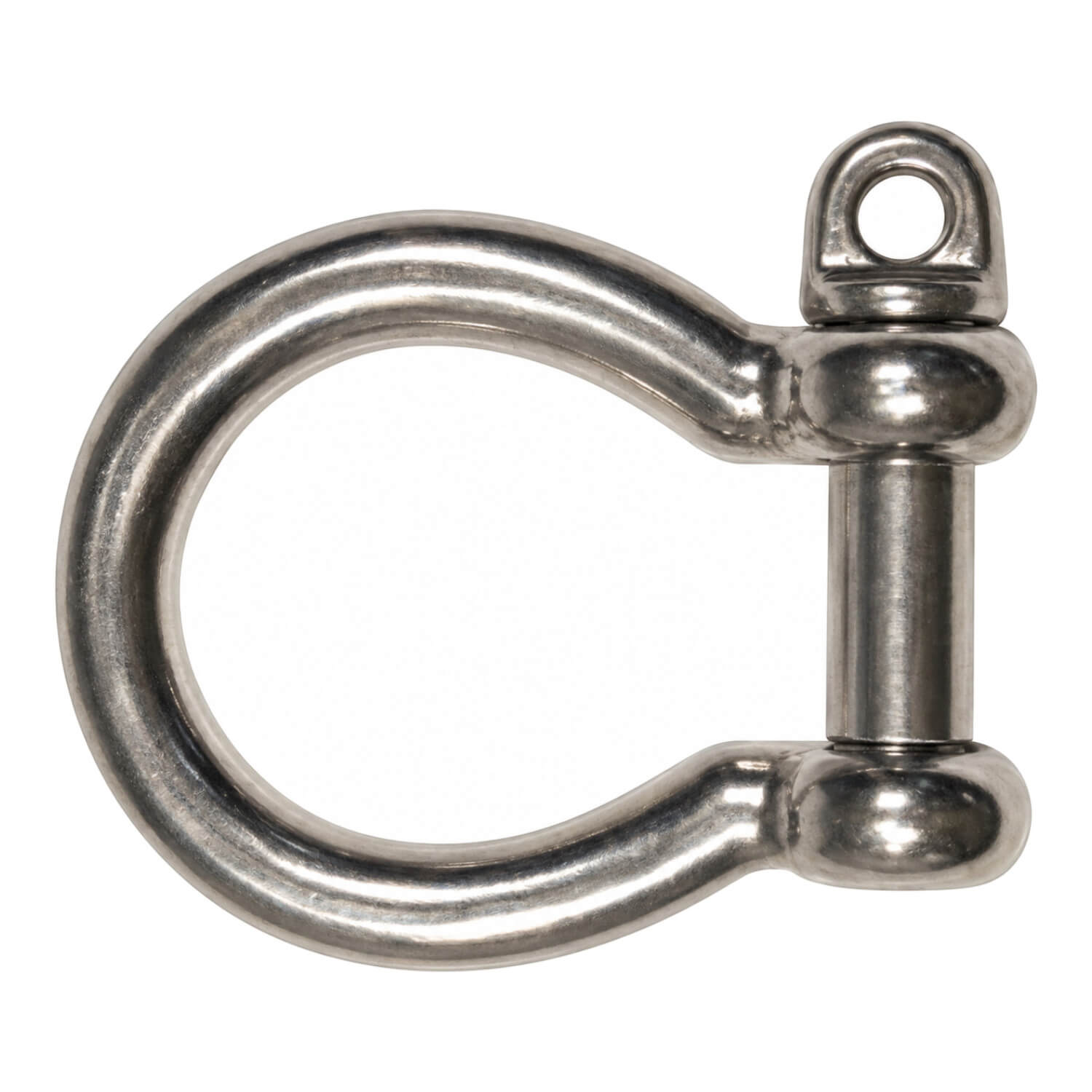

This 316-grade stainless-steel bow shackle is supplied in the format identified below. The rounded bow creates a different internal shape from a straight-sided D shackle.

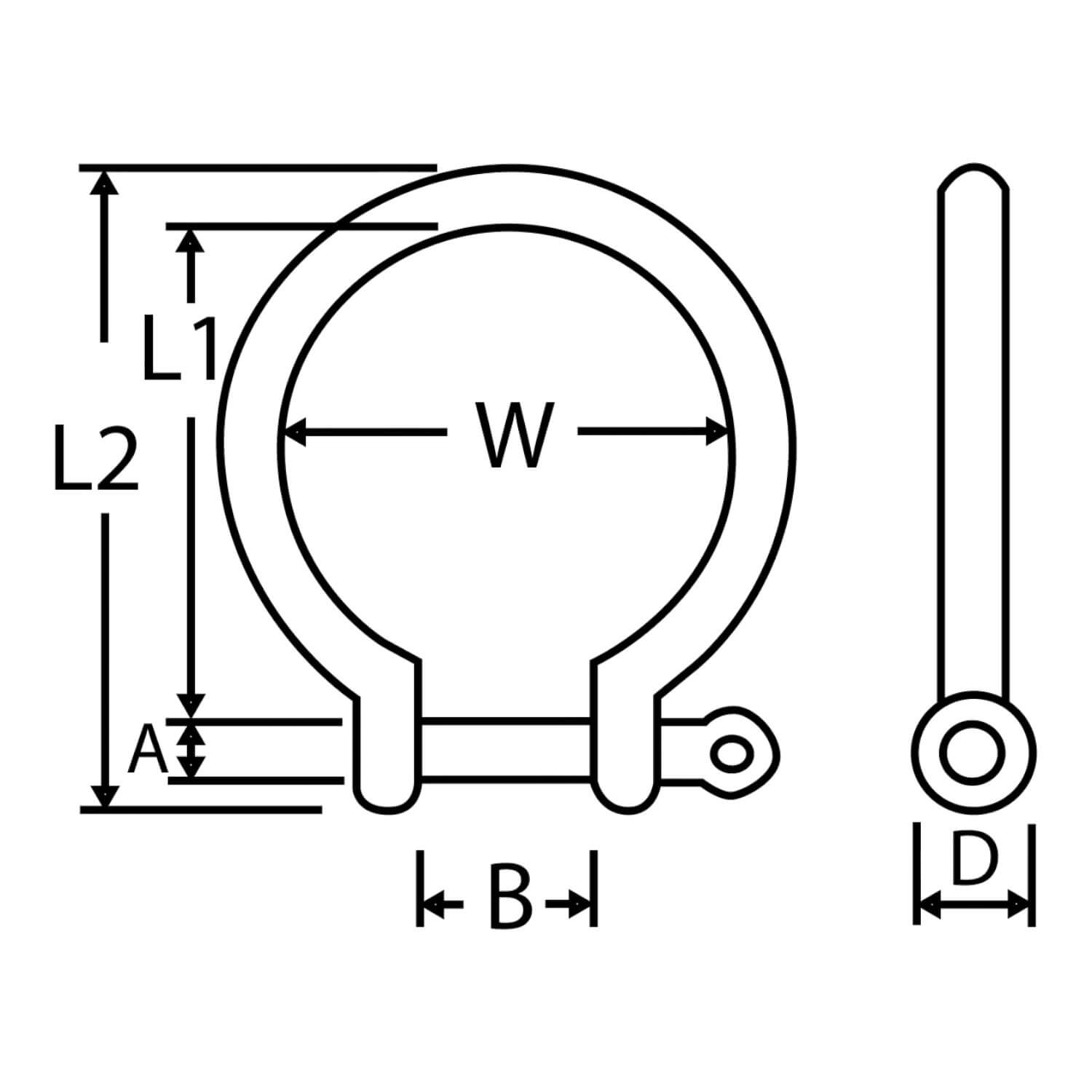

Compare the nominal size with all available dimensional measurements, including the opening and overall length where specified. A similarly named shackle can have different geometry, pin design or material grade, so use the exact product code when replacing an existing fitting.
The TDL figure below is not a stated working load limit. Confirm the required rating for the complete application before using this fitting in a load-critical arrangement.
Choosing and using this product
For this version, diameter (mm): 12mm. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Plan access for assembly, adjustment and routine inspection. The connection should be arranged so adjoining parts do not prevent its intended movement or closure. Once assembled, inspect the fitting and surrounding hardware together, especially where there has been wear, deformation or a difficult loading event.
For workshop or refit orders, check the sales quantity as well as the size. A retail pack and a bulk listing may contain different numbers of the same style of fitting. Keep spare components labelled so pin sizes, thread forms and material grades remain easy to identify.
Look at both sides of the proposed connection before choosing a rigging fitting. The opening, pin or thread must suit the adjoining components, while the body needs sufficient clearance to sit as intended. A larger nominal size is not automatically the best fit for a confined connection.
Product details
- Product code: SS370-12
- Diameter (mm): 12mm
- TDL: 2200kg
- A (mm): 11.8mm
- B (mm): 28.2mm
- D (mm): 23.7mm
- W (mm): 41.9mm
- L1 (mm): 58.3mm
- L2 (mm): 85.5mm
- Supply format: bulk
