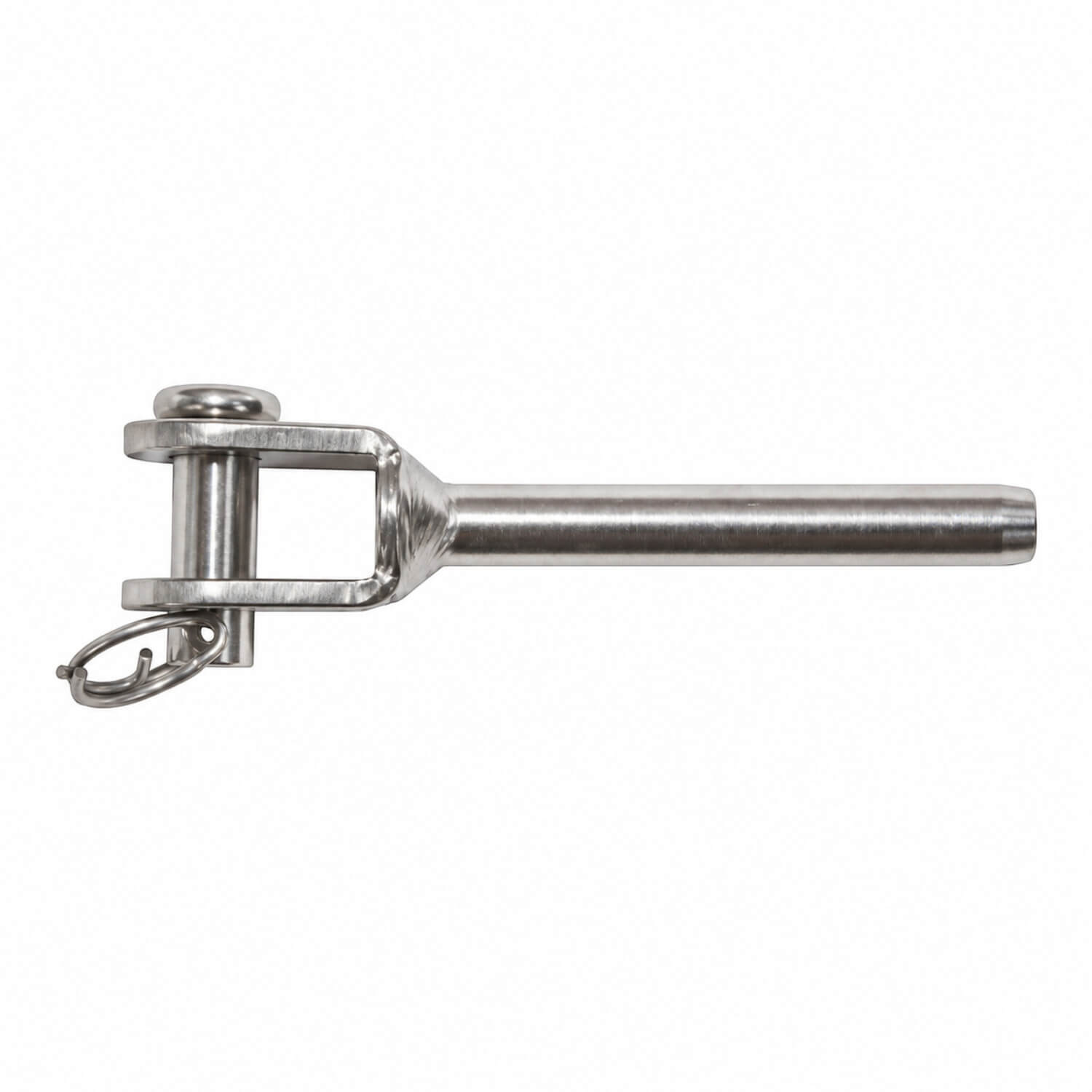

316 Stainless Roll-Swage Fork Terminal - Wire D metric: 6.4 mm
Finish a compatible wire rope with a 316 stainless steel roll-swage fork terminal. The fork end includes a removable pin for connecting to the adjoining fitting.
This terminal suits 1/4 inch (6.4 mm) wire. Its L1 dimension is 110 mm and the specified Uni Die number is 8, distinguishing this variant from other wire sizes.
A defined end connection for the selected wire
A swage terminal provides the transition between the wire and its adjoining fitting. The wire interface and the finished connection serve different purposes, so both need to match the planned assembly. Check the wire size before comparing the eye, fork or threaded end and the space the terminal will occupy.
Plan the finished run with the terminals and any adjuster included in the layout. Use tooling appropriate to the specified terminal and wire combination, following the applicable swaging procedure. Where a die reference is supplied, retain it with the component details. Inspect the finished termination and keep its product reference on record so future replacements can be matched to the same wire and connection arrangement.
Selection details
Select by the imperial wire size and check the stated metric equivalent. Compare the fork dimensions with the receiving part and use the specified Uni Die number when identifying compatible swaging equipment. The wire size alone does not describe the complete terminal geometry.
For replacement work, measure the complete connection before removing the old terminal and note its orientation. Compare all supplied length dimensions rather than only the visible end. Thread size, thread direction and wire size can refer to different interfaces on one component, so retain each relevant designation when planning the new assembly.
Specifications
- Product code: RWB2035
- Wire D imperial: 1/4 inch
- Wire D metric: 6.4 mm
- A: 14 mm
- C: 12 mm
- L1: 110 mm
- L2: 63 mm
- Uni Die number: 8
