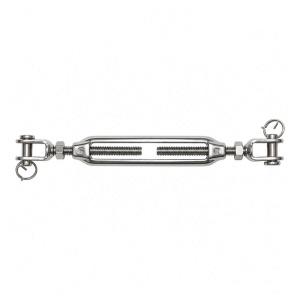

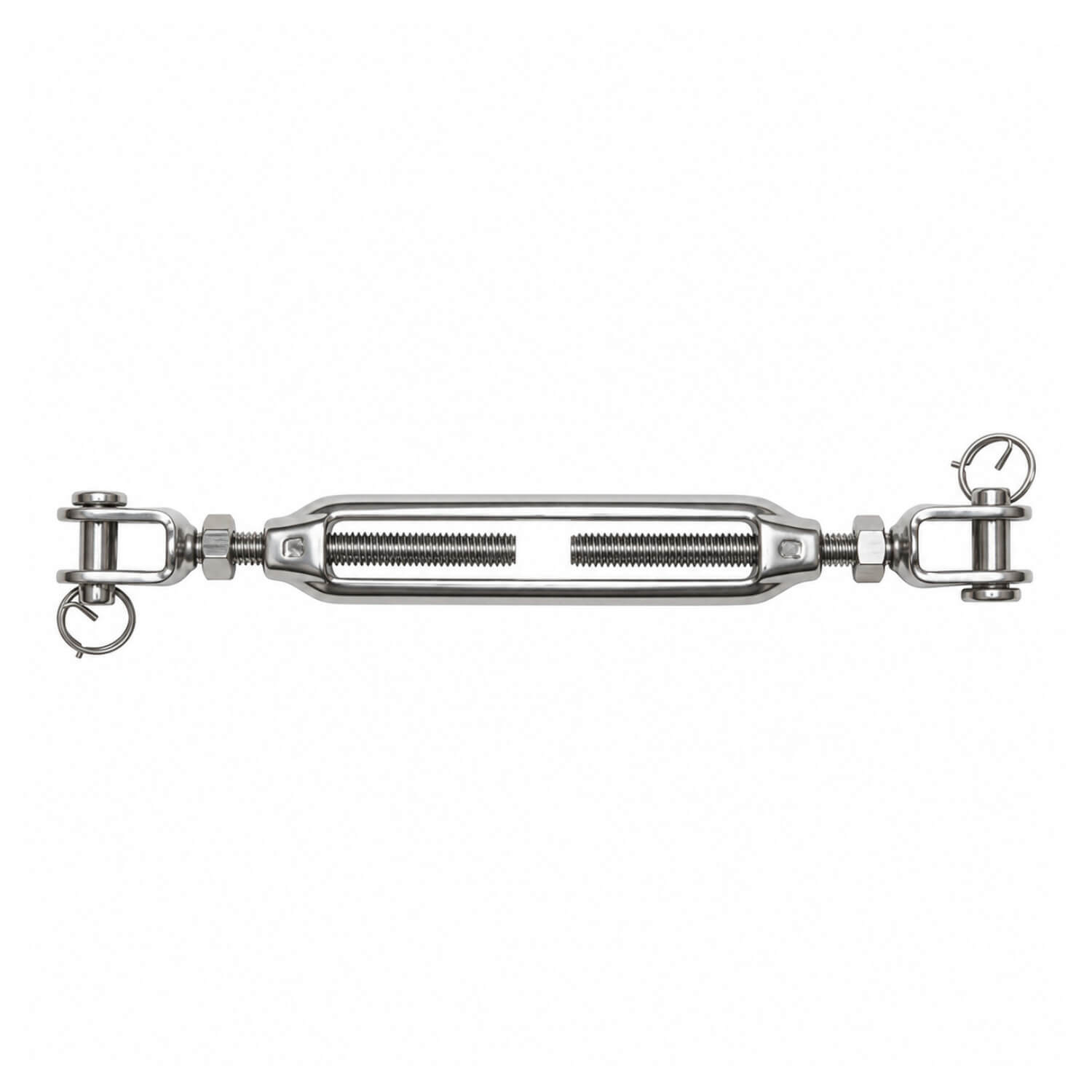

316 Stainless Open-Body Jaw and Jaw Turnbuckle - Thread size D: 10 mm
Set up an adjustable connection with a 316 stainless steel open-body turnbuckle. Metric threads and lock nuts are provided, and the open frame keeps the threaded arrangement visible.
This 316 stainless open-body jaw and jaw turnbuckle uses a 10 mm metric thread. Its L2 dimension runs from 220 mm to 350 mm, giving a stated dimensional adjustment span of 130mm.
Adjustment that belongs in the planning stage
A turnbuckle or rigging screw is useful when the fitted length needs to be adjusted after the end connections have been made. Choosing the correct end style helps the adjuster fit naturally into the assembly. Consider where the body will sit and how it will be accessed for adjustment and subsequent inspection.
Allow for the required adjustment when planning the overall run rather than relying on the fitting to compensate for an incorrectly measured assembly. Where minimum and maximum dimensions are listed, compare them with the intended fitted length and follow the instructions for thread engagement. Keep threads and retaining parts accessible, and inspect the complete connection after adjustment.
Selection details
Match the end style to the connection at each side. Use the minimum and maximum L2 dimensions to assess the required adjustment range, then check the body and end dimensions. The suggested working load belongs to the selected size and end configuration.
The suggested working load is 860 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
When matching existing equipment, keep the exact product code with the dimensions you have checked. Similar-looking fittings can differ in their opening, material section or connection style. Comparing the full specification before ordering makes it easier to select a replacement that fits the arrangement you already have and remains straightforward to maintain.
Specifications
- Product code: RWB2593
- Thread size D: 10 mm
- A: 12 mm
- L1: 150 mm
- L2 minimum: 220 mm
- L2 maximum: 350 mm
- SWL (suggested working load): 860 kg
- Included: Lock nuts
