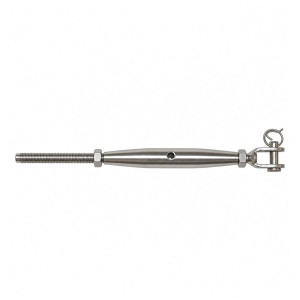

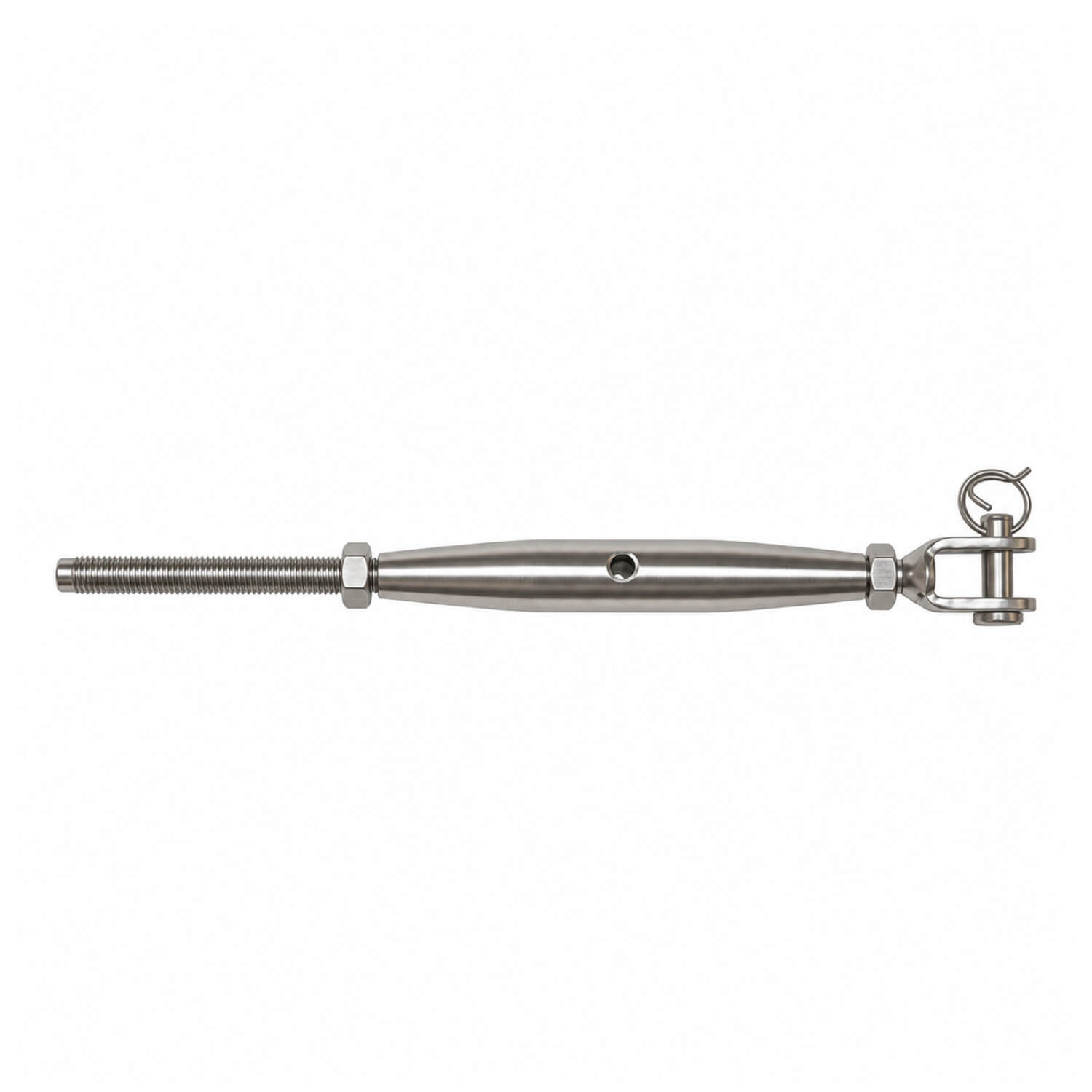

316 Stainless Jaw and Swage Rigging Screw - Thread D1: M6 / Wire diameter D2: 5/32 inch
Combine a pinned jaw connection with a wire-rope terminal using this 316 stainless steel jaw-and-swage rigging screw. The body uses metric threads and includes lock nuts, while the terminal end is sized for imperial wire rope.
The M6 thread is paired with a terminal for 5/32 inch wire. The listed length runs from 180 mm to 240 mm; compare both the thread and wire size when selecting this variant.
A defined end connection for the selected wire
A swage terminal provides the transition between the wire and its adjoining fitting. The wire interface and the finished connection serve different purposes, so both need to match the planned assembly. Check the wire size before comparing the eye, fork or threaded end and the space the terminal will occupy.
Plan the finished run with the terminals and any adjuster included in the layout. Use tooling appropriate to the specified terminal and wire combination, following the applicable swaging procedure. Where a die reference is supplied, retain it with the component details. Inspect the finished termination and keep its product reference on record so future replacements can be matched to the same wire and connection arrangement.
Selection details
Both the thread designation and wire diameter matter when selecting this component. Check the minimum and maximum length against the installation and compare the jaw dimensions with the mating fitting. The wire termination must be made with a suitable swaging arrangement.
The suggested working load is 275 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
Specifications
- Product code: RWB2040
- Thread D1: M6
- Wire diameter D2: 5/32 inch
- L minimum: 180 mm
- L maximum: 240 mm
- A: 7.5 mm
- C: 6 mm
- SWL (suggested working load): 275 kg
