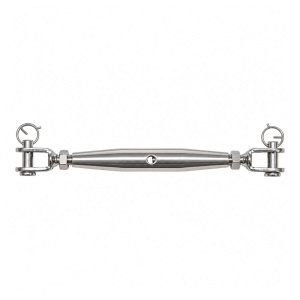

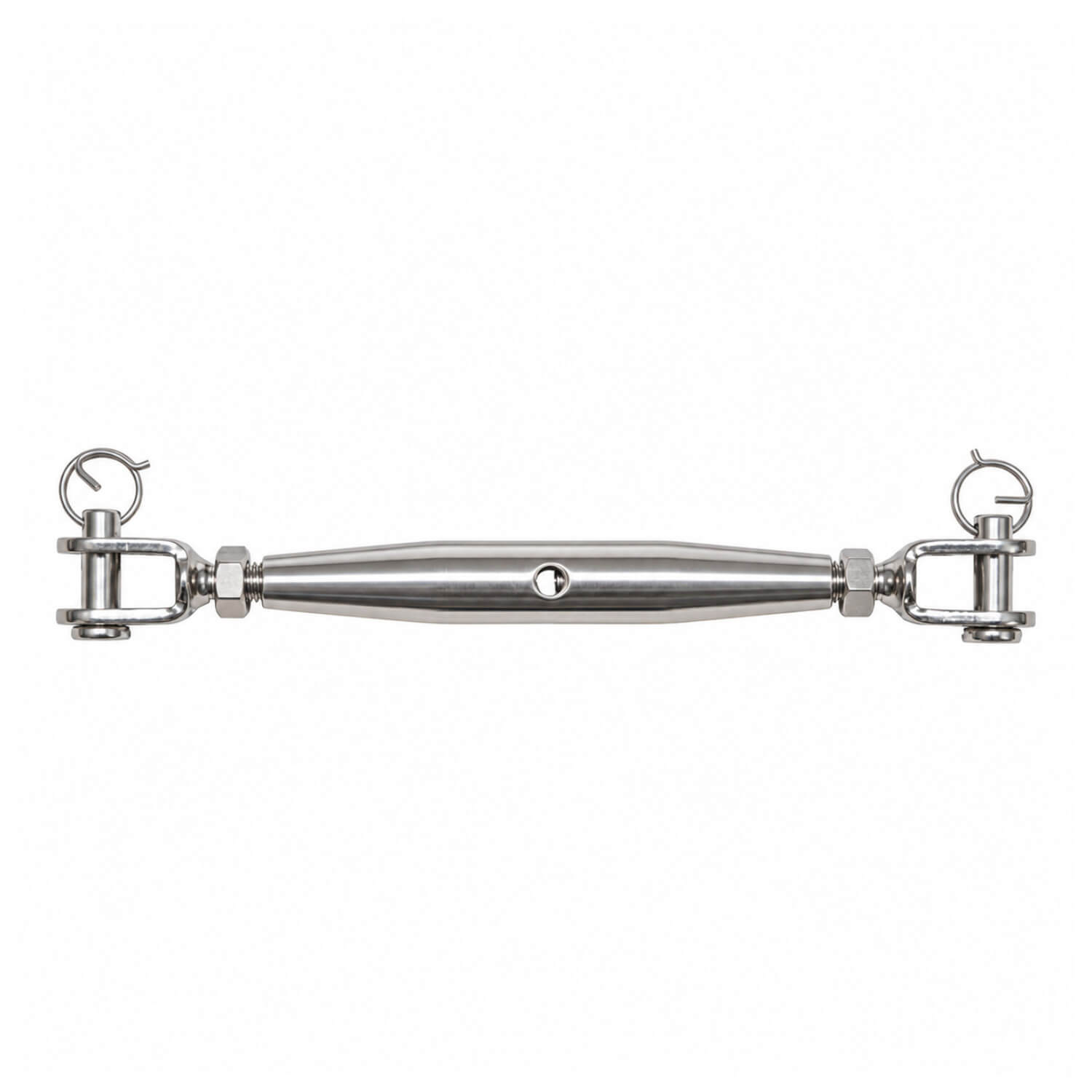

316 Stainless Full-Body Jaw and Jaw Rigging Screw - Thread size D: 6 mm
Use a full-body 316 stainless steel rigging screw to adjust a jaw-to-jaw connection. Metric threads and supplied lock nuts allow the adjustment arrangement to be matched to compatible fittings.
This 316 stainless full-body jaw and jaw rigging screw uses a 6 mm metric thread. Its L2 dimension runs from 144 mm to 210 mm, giving a stated dimensional adjustment span of 66mm.
Adjustment that belongs in the planning stage
A turnbuckle or rigging screw is useful when the fitted length needs to be adjusted after the end connections have been made. Choosing the correct end style helps the adjuster fit naturally into the assembly. Consider where the body will sit and how it will be accessed for adjustment and subsequent inspection.
Allow for the required adjustment when planning the overall run rather than relying on the fitting to compensate for an incorrectly measured assembly. Where minimum and maximum dimensions are listed, compare them with the intended fitted length and follow the instructions for thread engagement. Keep threads and retaining parts accessible, and inspect the complete connection after adjustment.
Selection details
Check the minimum and maximum L2 dimensions against the required fitted length. The jaw dimensions and pin-related measurements also need to suit the adjoining parts. The body length is not the same as the total adjusted length, so use the complete dimensions when comparing sizes.
The suggested working load is 400 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
Specifications
- Product code: RWB2601
- Thread size D: 6 mm
- A: 7 mm
- F: 6 mm
- H: 10 mm
- L1: 90 mm
- L2 minimum: 144 mm
- L2 maximum: 210 mm
- SWL (suggested working load): 400 kg
- Included: Lock nuts
