316 Stainless Cargo and Trailer Hook - Length L: 120 mm

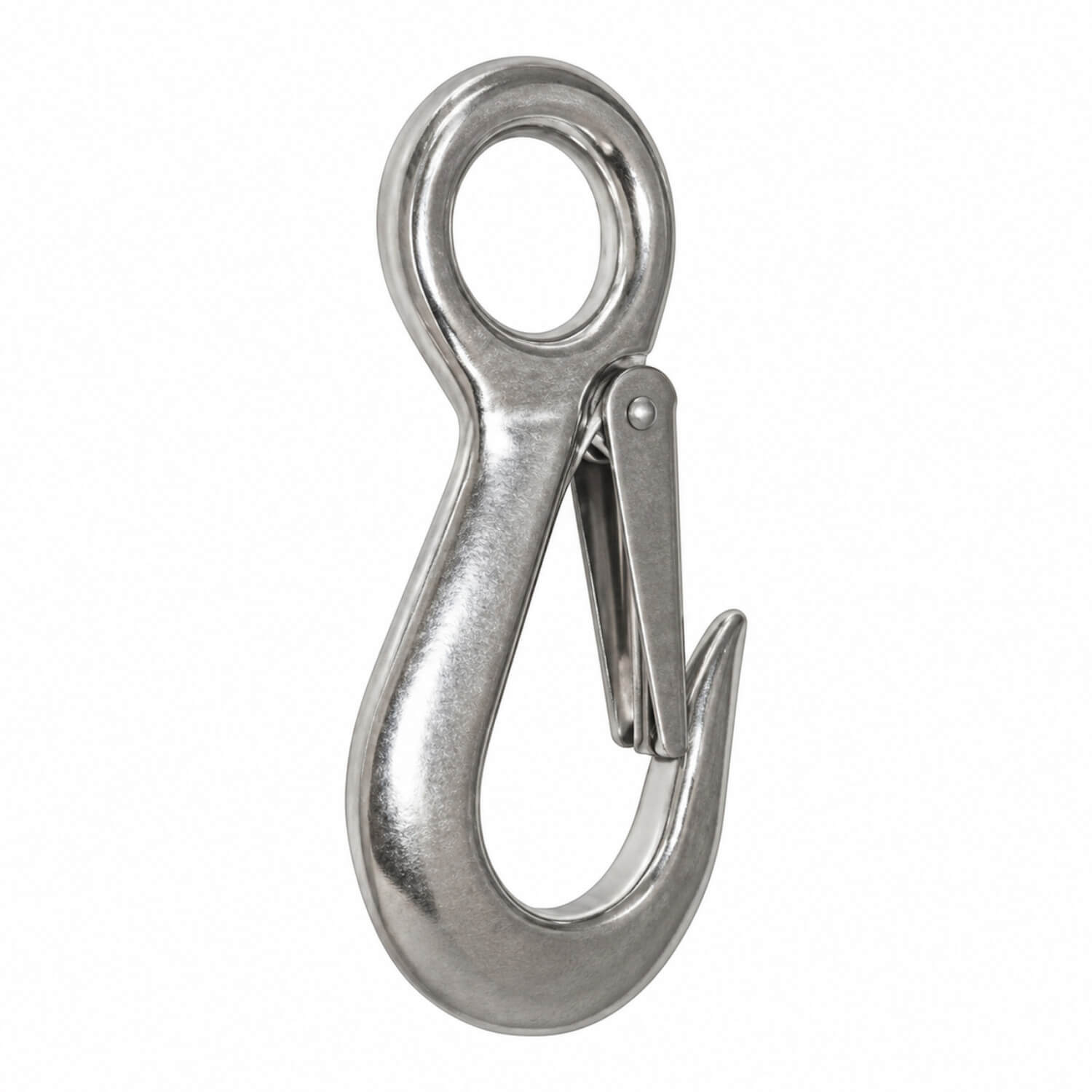

Choose a cast 316 stainless steel cargo and trailer hook with a spring-opening safety latch. The hook is described for light-duty lifting work or use as a trailer-winch snap hook where the complete arrangement is suitable.
The selected fitting measures 120 mm long and an eye inside diameter of 28 mm. Use these measurements to identify the appropriate size for the connection.
Convenient access to a removable connection
A snap fitting is useful where the connection needs to be opened and closed without dismantling the surrounding assembly. The particular eye, body and opening mechanism determine how it will be handled in use. Check that the operating part remains accessible in the final position, especially where the fitting sits close to another component.
Compare the opening clearance with the part that must pass through it, then check the space inside the eye or body once connected. Allow room for swivel movement where the selected model includes that feature. During routine checks, inspect the spring or release action and the contact surfaces together. Use the dimensions and any stated working-load guidance for the exact fitting being ordered.
Selection details
Check the eye’s internal diameter against the line or connector and allow space for the latch to open. The suggested working load is specific to this hook size. Assess the full connection and intended task rather than choosing by overall hook length alone.
The suggested working load is 250 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
The opening action affects how comfortably the fitting can be handled in its intended position. Check whether the selected model uses a spring gate, trigger bolt, scissor action or pull-release mechanism, then allow room to operate it. Choose the eye style to suit the adjoining line or hardware and the movement required in the connection.
Specifications
- Product code: RWB2490
- Length L: 120 mm
- Eye inside diameter: 28 mm
- SWL (suggested working load): 250 kg
