316 Stainless Anchor Chain Swivel - Single - 8-10mm Chain

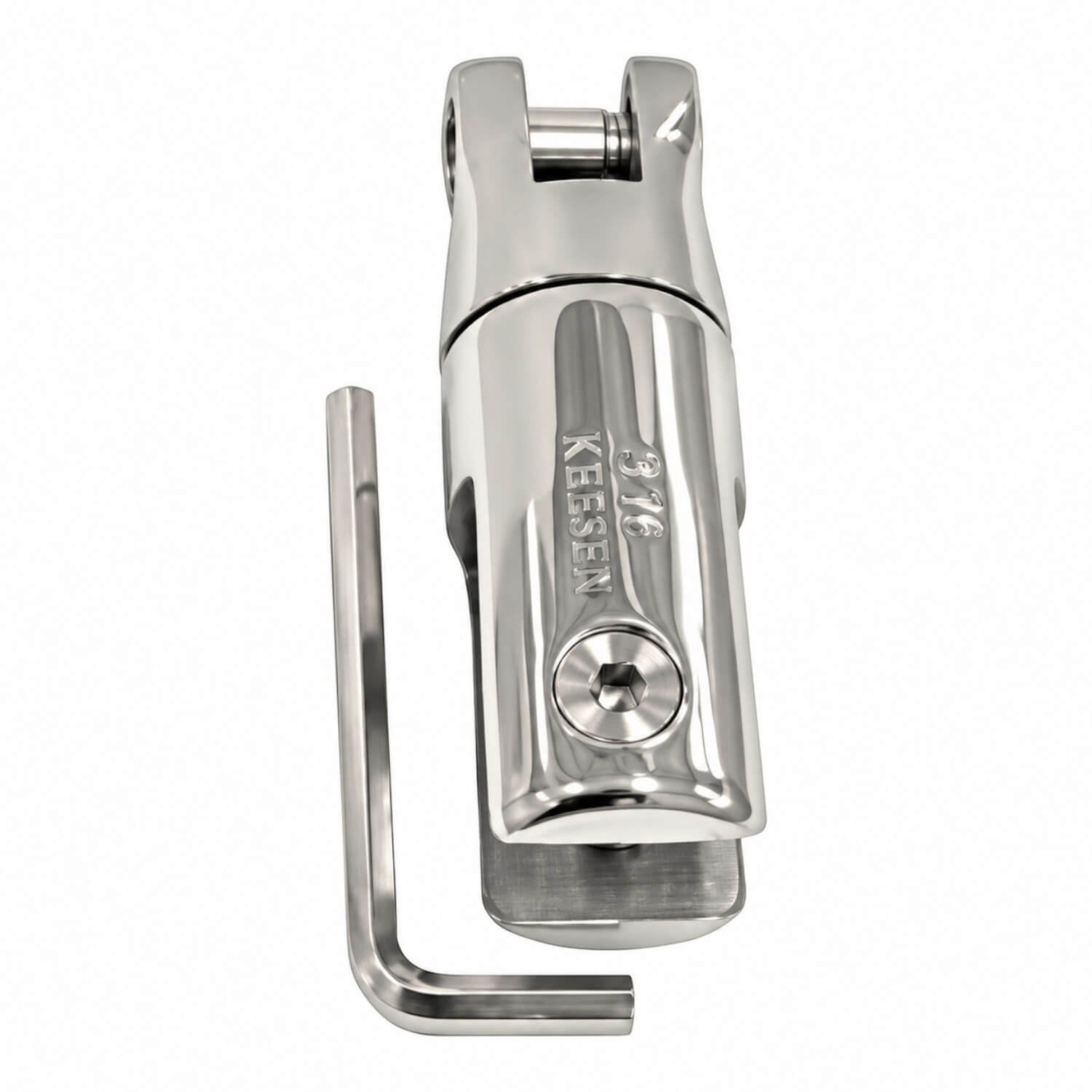

Help prevent anchor and chain twisting during setting and retrieval with this 316 stainless steel anchor-to-chain swivel. Its shaped body is designed to slide over a bow roller during retrieval. An Allen key is supplied so the connection pins can be removed for fitting the anchor and chain.
The single swivel suits 8-10mm chain, measures 114mm long and has a safe working load of 1350kg. Its fork widths are 19 and 14mm, with pin diameter(s) of 11mm.
Let the connection accommodate a change in orientation
A swivel adds rotational movement between the components it joins. That can be useful when the line or hardware needs to turn without relying on the entire assembly changing position. The particular end fittings determine how the swivel is connected, so compare them with the hardware at both sides of the proposed installation.
Leave clearance around the moving section and ensure adjoining parts do not prevent the intended movement. When reviewing an existing assembly, check the swivel body, connection points and any pins together. Keep the moving area accessible for routine cleaning and inspection. Use the stated dimensions and any supplied load guidance for this exact version when selecting associated hardware.
Selection details
Select using the chain-size range, pin dimensions and fork widths together. The swivel’s safe working load is stamped on the body. Check the connection at both ends as well as clearance over the bow roller; chain diameter is only one part of establishing a suitable fit.
When matching existing equipment, keep the exact product code with the dimensions you have checked. Similar-looking fittings can differ in their opening, material section or connection style. Comparing the full specification before ordering makes it easier to select a replacement that fits the arrangement you already have and remains straightforward to maintain.
Specifications
- Product code: RWB5571
- Safe working load: 1350kg
- Suits chain: 8-10mm
- Pin diameter(s): 11mm
- Length: 114mm
- Width: 36mm
- Fork widths: 19 and 14mm
