304 Stainless U-Bolt - Size D: 10 mm / L: 130 mm

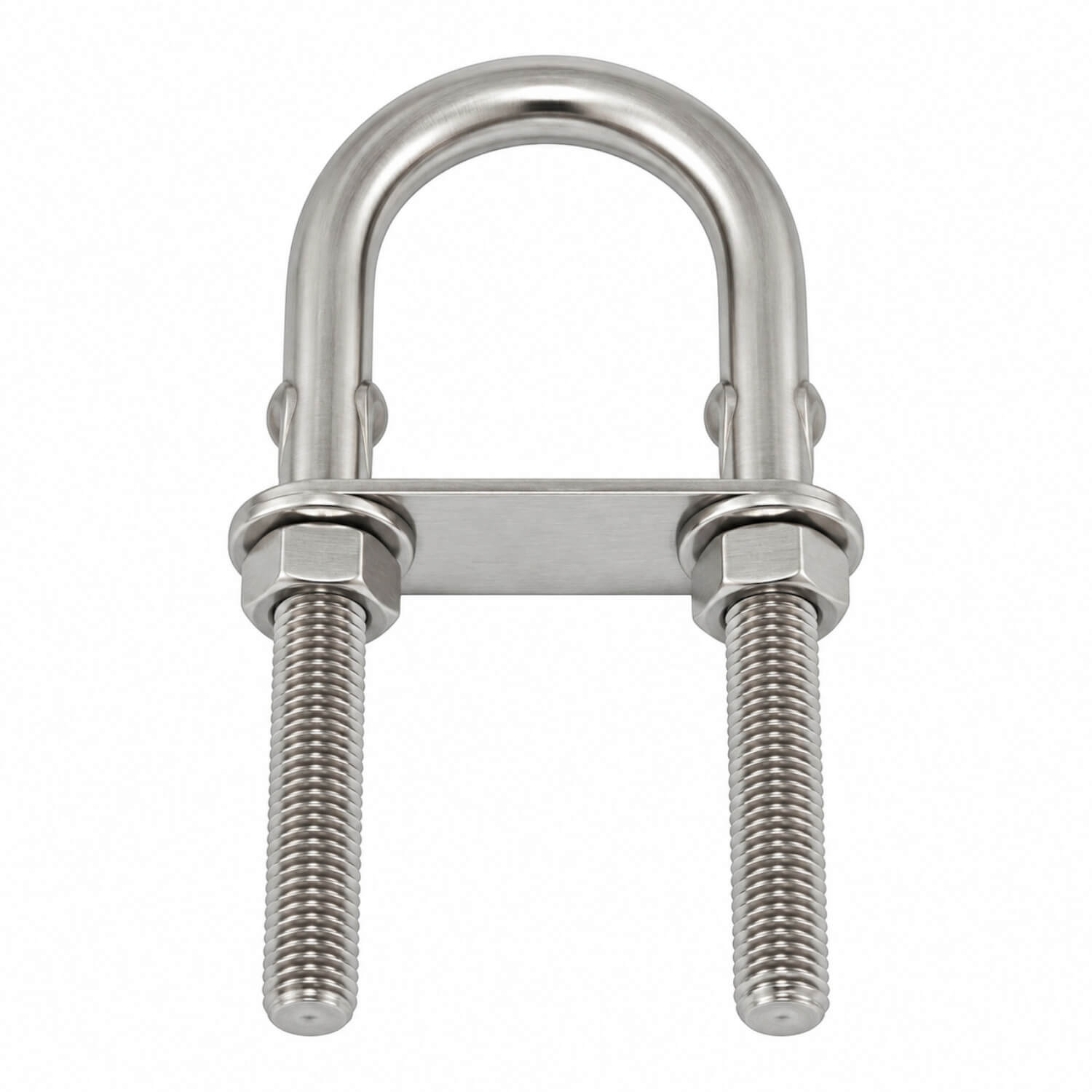

Create a two-leg fastening with a 304 stainless steel U-bolt featuring a crimped shaft and metric shaft threads. One cross plate, two washers and two hex nuts are supplied.
The selected model combines a 10 mm D dimension with a 130 mm L measurement and a 55 mm B dimension. These measurements identify this size within the range.
A two-leg fixing with clearly defined dimensions
A U-bolt combines a curved connection area with two threaded legs, so several dimensions affect the fit. The spacing must suit the mounting position, and the available threaded length must accommodate the intended arrangement. Compare those details before preparing holes or selecting a replacement for an existing fixing.
Check the supporting surface and the clearance available behind it for fitting and inspection. Where a plate and fastening hardware are included, account for them when planning the assembled position. Keep the two legs aligned with the intended mounting rather than forcing them to suit an unsuitable hole pattern. After fitting, inspect the bearing areas and threaded connections during routine maintenance.
Selection details
Check the shaft diameter, length measurements and spacing dimensions against the mounting position. The supplied hardware helps complete the bolt assembly, while the dimensions determine whether it suits the available space. Choose by the full dimensional set rather than overall length alone.
For a replacement installation, measure the existing mounting position before removing the old fitting. Record the hole pattern or thread, the available depth and the space around the attachment point. This helps distinguish a like-for-like replacement from a fitting that would require changes to the surrounding structure or connecting hardware.

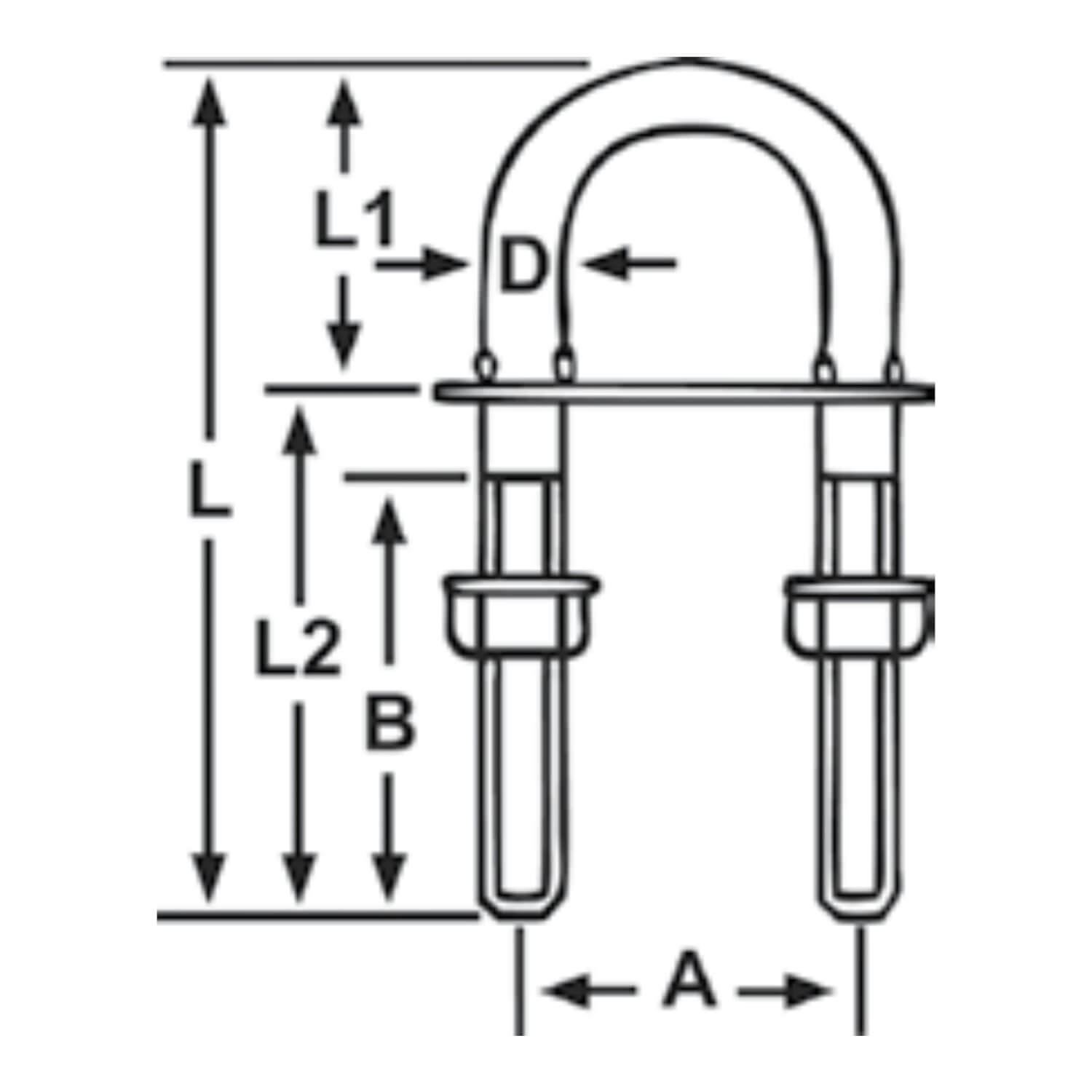

Specifications
- Product code: RWB2411
- Size D: 10 mm
- L: 130 mm
- L1: 55 mm
- L2: 75 mm
- A: 53 mm
- B: 55 mm
