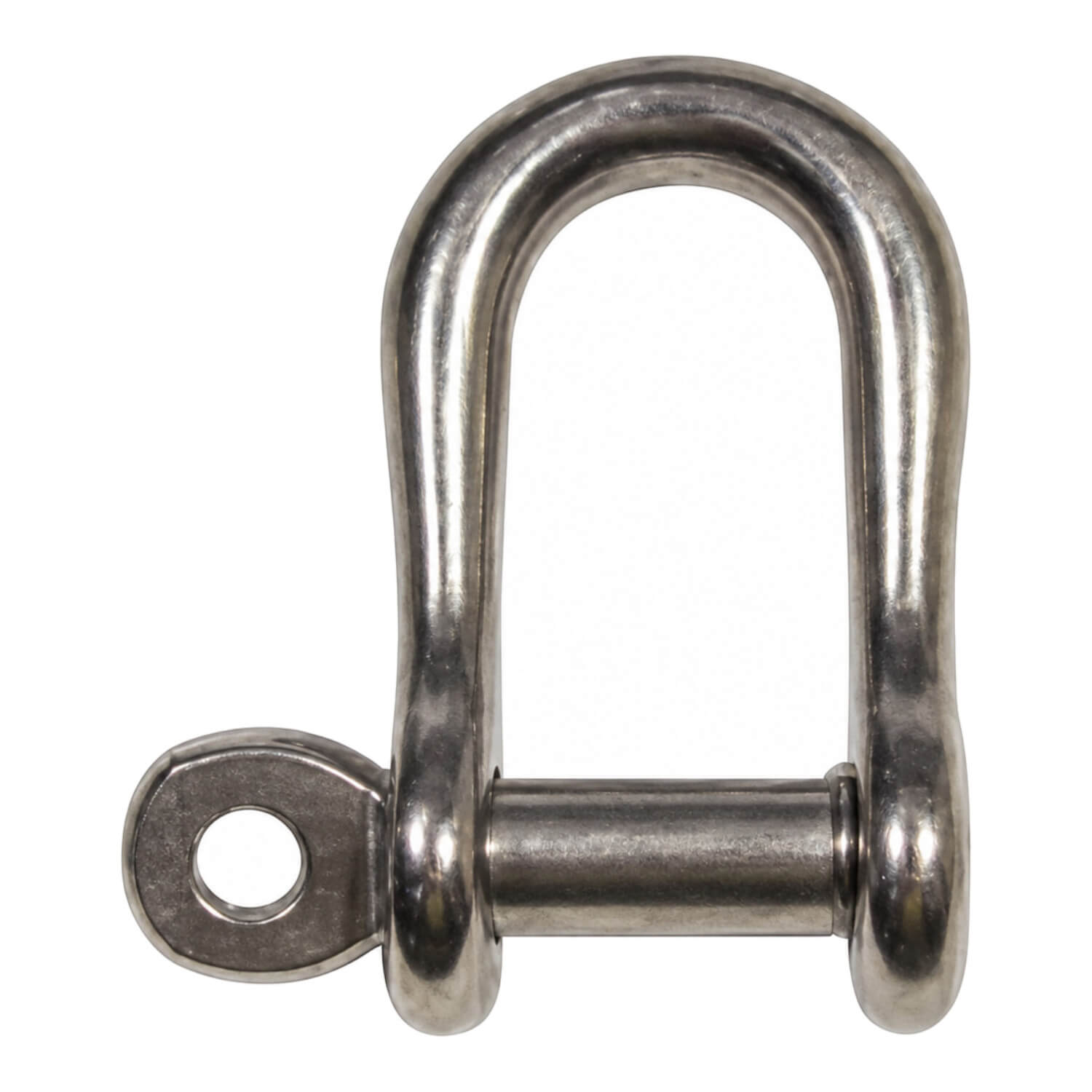

304 Stainless Steel Semi Round D Shackle - Bulk - 5mm
This 304-grade stainless-steel semi round d shackle is supplied in the format identified below. The semi-round profile is a distinct 304-grade option in the shackle range.
Compare the nominal size with all available dimensional measurements, including the opening and overall length where specified. A similarly named shackle can have different geometry, pin design or material grade, so use the exact product code when replacing an existing fitting.
The TDL figure below is not a stated working load limit. Confirm the required rating for the complete application before using this fitting in a load-critical arrangement.
Choosing and using this product
Plan access for assembly, adjustment and routine inspection. The connection should be arranged so adjoining parts do not prevent its intended movement or closure. Once assembled, inspect the fitting and surrounding hardware together, especially where there has been wear, deformation or a difficult loading event.
For this version, diameter (mm): 5mm. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
For workshop or refit orders, check the sales quantity as well as the size. A retail pack and a bulk listing may contain different numbers of the same style of fitting. Keep spare components labelled so pin sizes, thread forms and material grades remain easy to identify.
Use the stated material and dimensions to compare this version with the part being replaced. Thread direction, closure style and the shape of the attachment points can matter as much as overall length. Check those details against the actual assembly rather than a photograph alone.
Product details
- Product code: SS3611-05
- Diameter (mm): 5mm
- TDL: 400kg

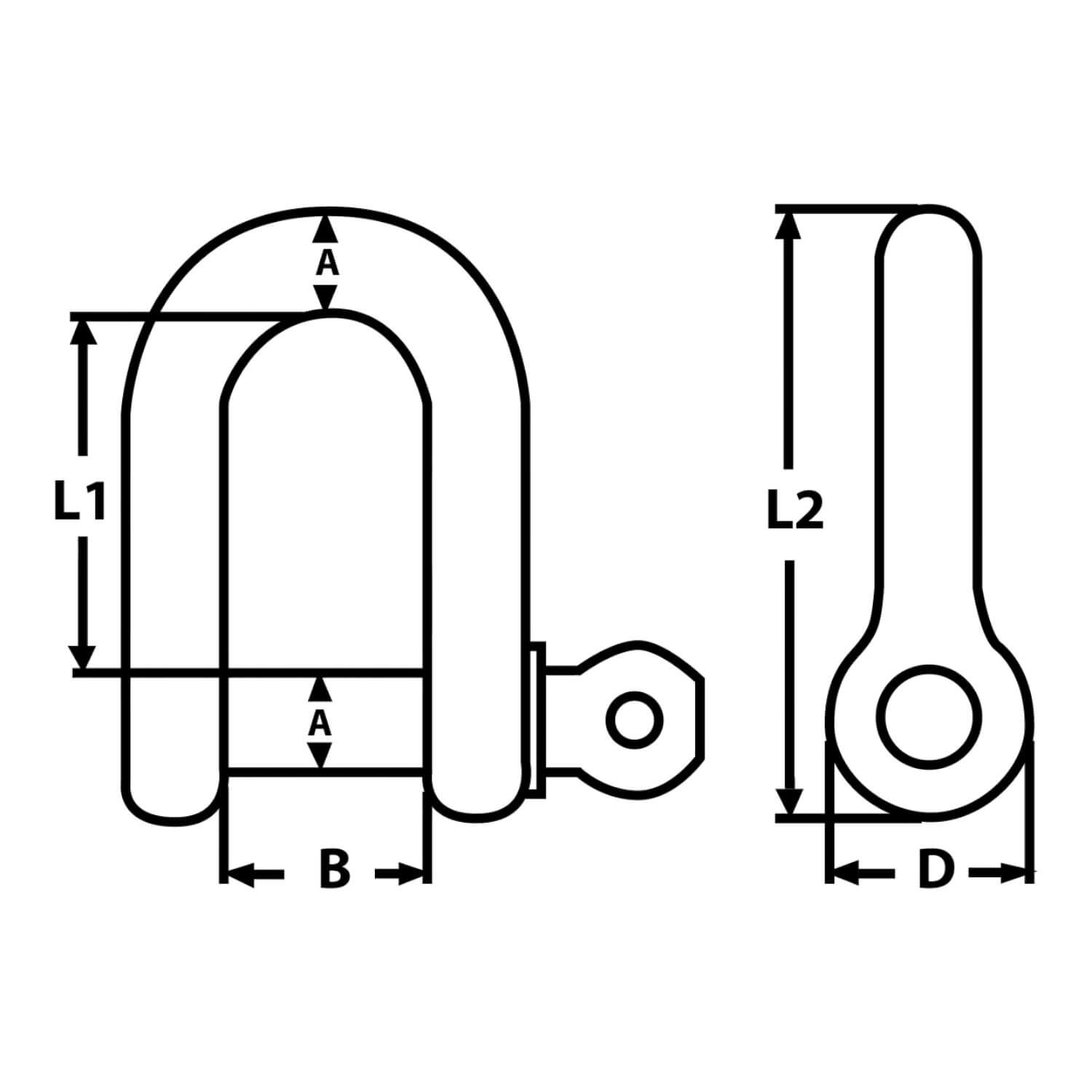

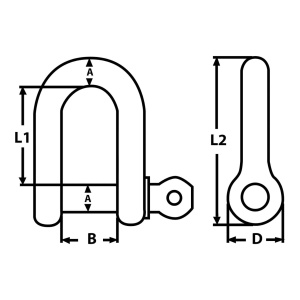

- A (mm): 5mm
- B (mm): 12mm
- D (mm): 12mm
- L1 (mm): 19mm
- L2 (mm): 30mm
- Supply format: bulk
