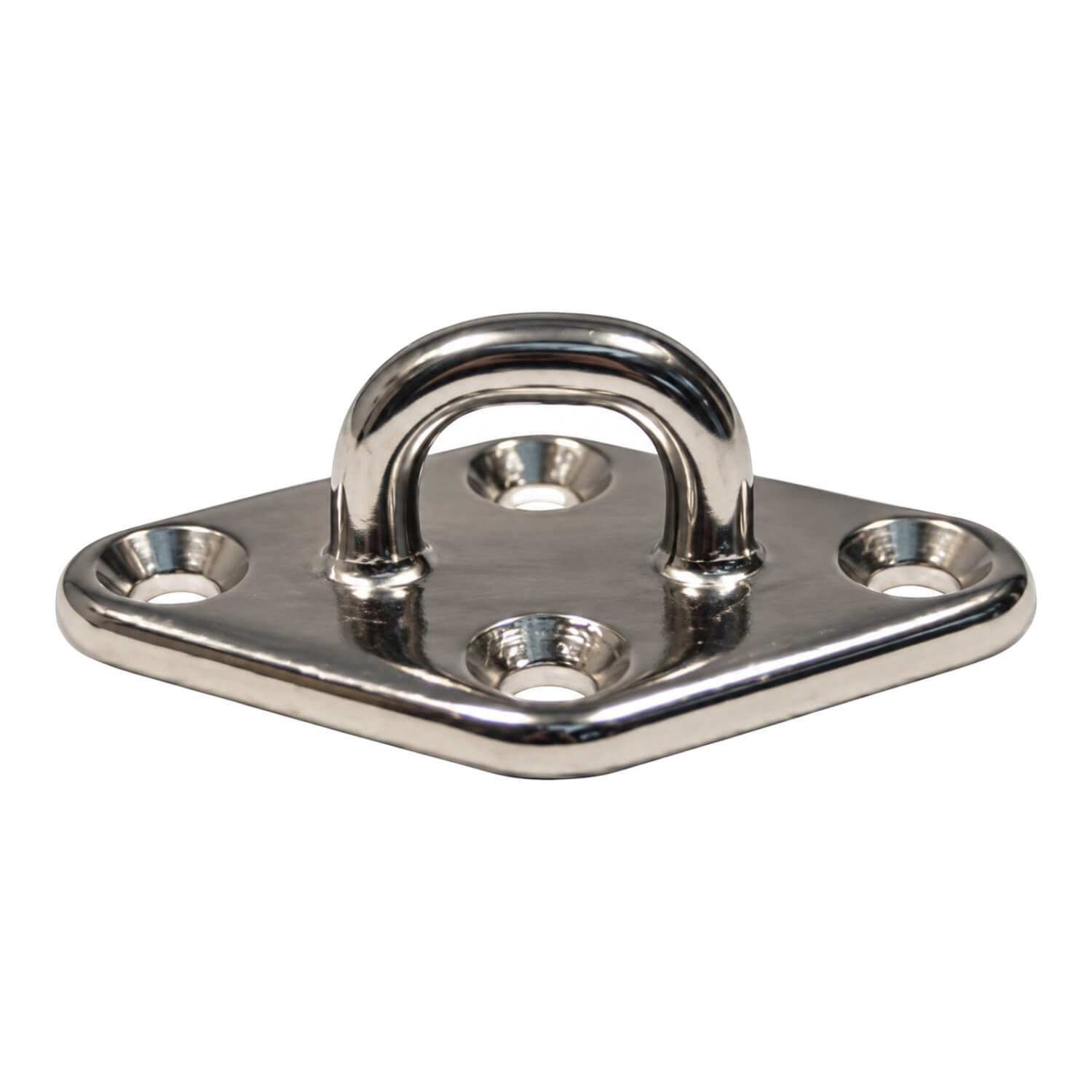

304 Stainless Steel Diamond Pad Eye - Bulk - D (mm): 8
This 304-grade stainless-steel diamond pad eye provides a mounting plate and eye connection. Its plate shape distinguishes it from threaded eye bolts and screw eyes.
Compare the footprint, eye geometry and height with the available mounting space. The complete dimensional set is more useful than the nominal eye diameter alone. Mounting screws and a rated load capacity are not specified as included with this fitting.
Choosing and using this product
For workshop or refit orders, check the sales quantity as well as the size. A retail pack and a bulk listing may contain different numbers of the same style of fitting. Keep spare components labelled so pin sizes, thread forms and material grades remain easy to identify.
Plan access for assembly, adjustment and routine inspection. The connection should be arranged so adjoining parts do not prevent its intended movement or closure. Once assembled, inspect the fitting and surrounding hardware together, especially where there has been wear, deformation or a difficult loading event.
Any stated breaking load describes a different condition from an allowable working load. Select the complete arrangement for its intended application using the appropriate equipment guidance. Do not derive a load rating for an unmarked component from its appearance or metal grade.
Use the stated material and dimensions to compare this version with the part being replaced. Thread direction, closure style and the shape of the attachment points can matter as much as overall length. Check those details against the actual assembly rather than a photograph alone.
Look at both sides of the proposed connection before choosing a rigging fitting. The opening, pin or thread must suit the adjoining components, while the body needs sufficient clearance to sit as intended. A larger nominal size is not automatically the best fit for a confined connection.

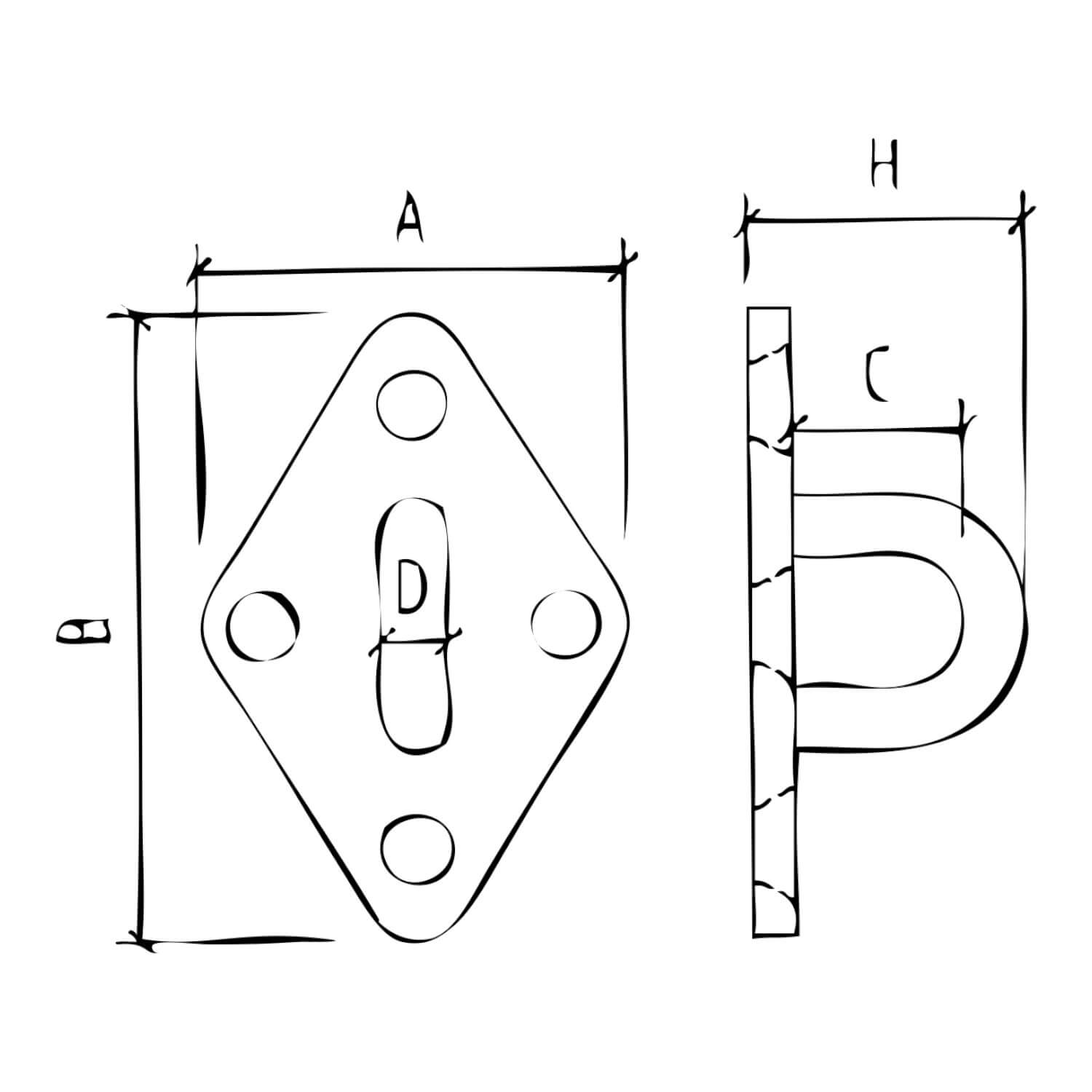

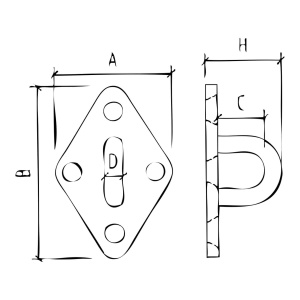

Product details
- Product code: SS3213-60
- D (mm): 8
- B (mm): 67
- A (mm): 38
- C (mm): 11
- H (mm): 21
- Supply format: bulk
