304 Stainless S Hook - Size D: 9 mm

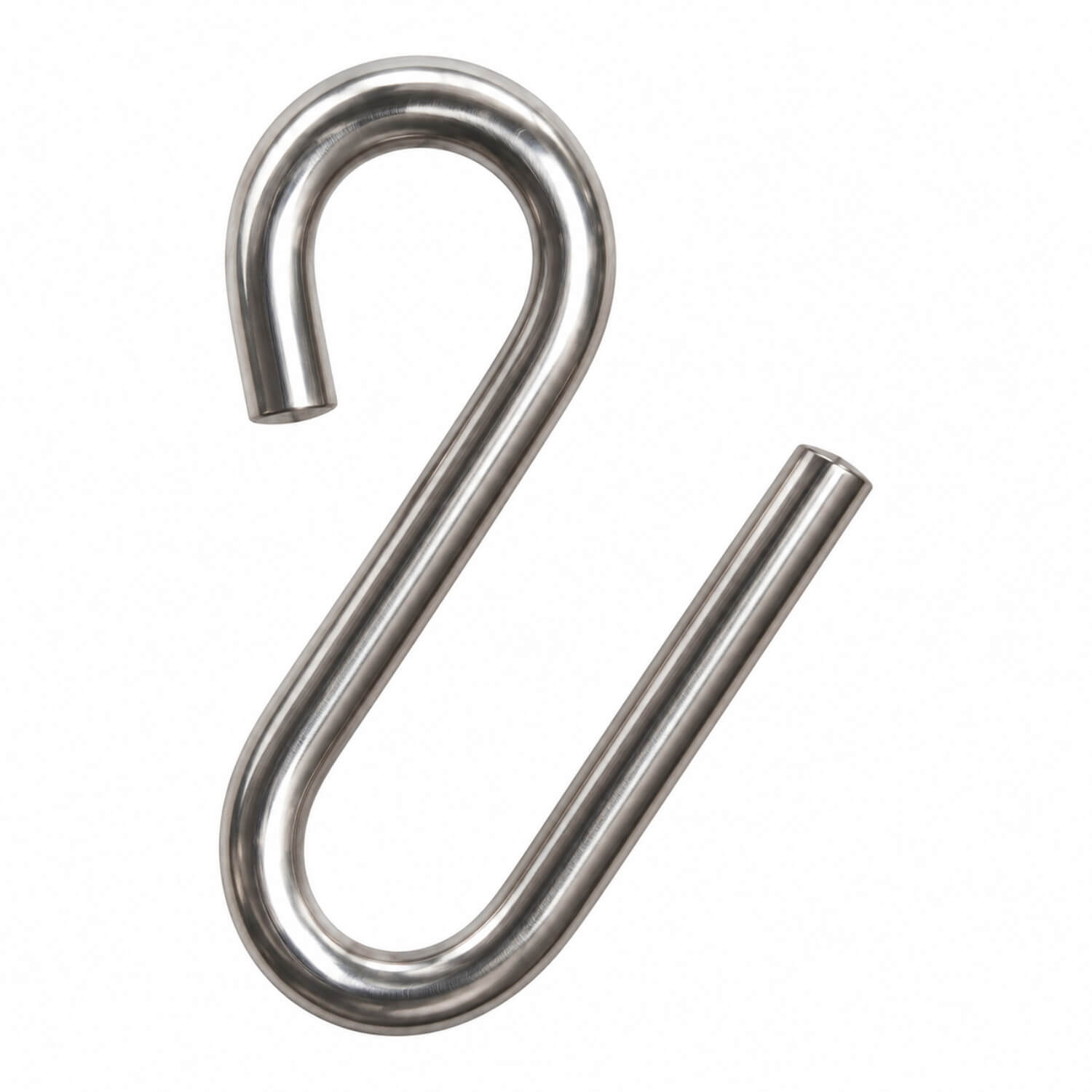

Make an open hook connection with a polished solid 304 stainless steel S hook. Its two opposed curved ends give the fitting its familiar S-shaped profile.
The selected model combines a 9 mm D dimension with an 85 mm L measurement and a 17 mm B dimension. These measurements identify this size within the range.
A simple connection with a specific geometry
Ring and open-hook fittings may look simple, but their shape influences how adjoining parts sit together. Material diameter describes the metal section, while the other dimensions describe the space occupied or available within the fitting. Comparing both helps you choose hardware that suits the actual connection rather than just the apparent size.
Consider how the mating parts will be introduced and retained before assembling the connection. A closed ring and an open hook require different arrangements. Check the space around the fitting throughout its intended movement and leave it accessible for inspection. Review contact points for wear during regular maintenance and use the load guidance supplied for this exact version when planning the assembly.
Selection details
Check the opening at each end and the overall length against the adjoining components. Use the suggested working load for the selected size. An open S hook has a different retention arrangement from a closed link or a hook with a spring gate, so choose the form appropriate to the connection.
The suggested working load is 163 kg. Check this value against the intended connection.
When matching existing equipment, keep the exact product code with the dimensions you have checked. Similar-looking fittings can differ in their opening, material section or connection style. Comparing the full specification before ordering makes it easier to select a replacement that fits the arrangement you already have and remains straightforward to maintain.
Specifications
- Product code: RWB2518
- Size D: 9 mm
- L: 85 mm
- A: 18 mm
- B: 17 mm
- SWL (suggested working load): 163 kg
