304 Stainless Ring Plate - Size D: 8 mm

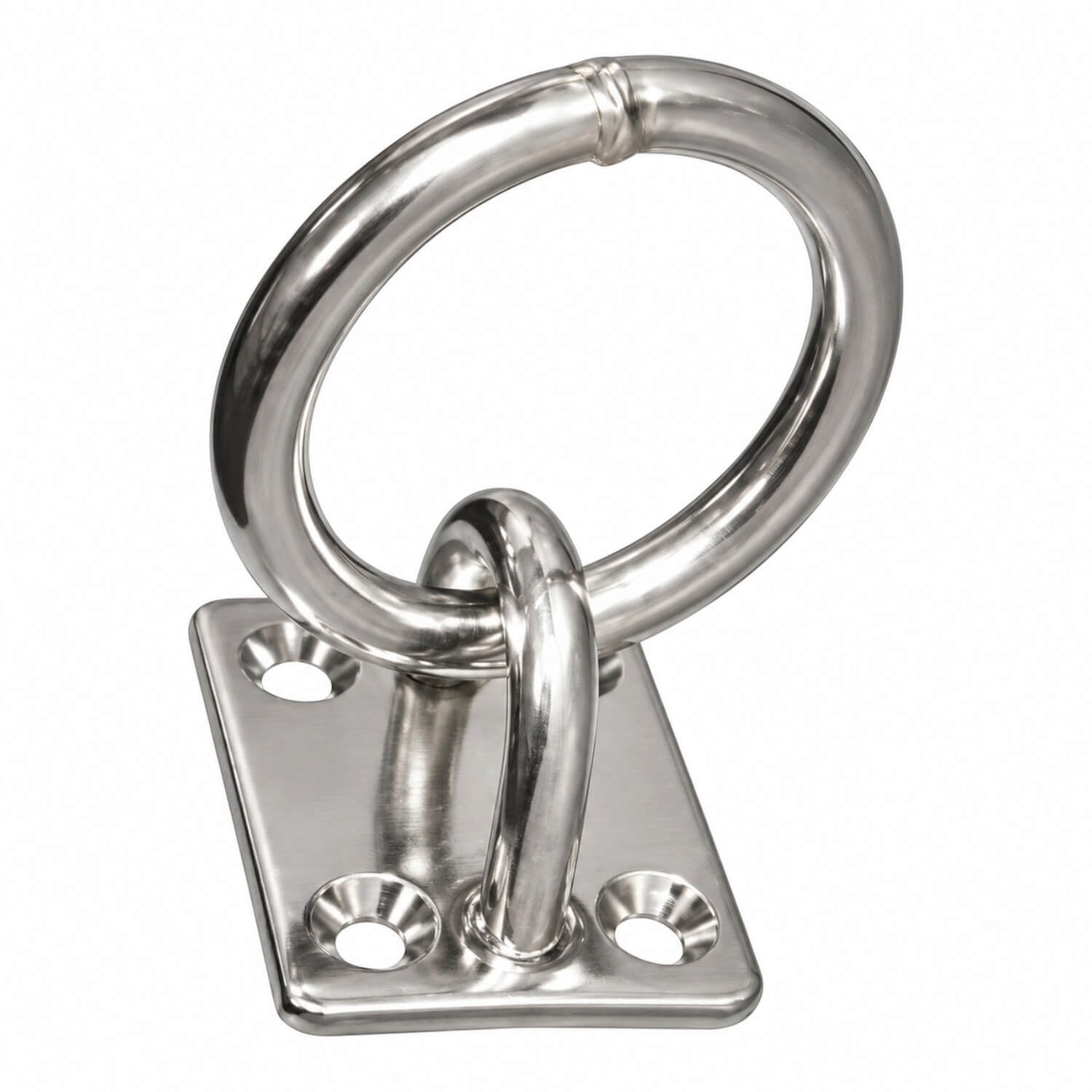

This 304 stainless steel plate combines a welded eye with an attached welded ring. Four countersunk fastening holes provide the mounting pattern.
The selected model combines an 8 mm D dimension with a 50 mm L measurement and a 50 mm B dimension. These measurements identify this size within the range.
A defined attachment point on a mounting surface
An eye or ring on a base plate provides a convenient way to position a connection where the mounting surface permits. The plate footprint determines the space required, while the eye or ring dimensions determine what can be attached. Consider the complete fitted shape, including any movement of a ring, when choosing its position.
Check access behind the mounting area and select a fixing arrangement appropriate to the structure. Countersunk hole sizes, where specified, should be matched to the chosen fasteners. Leave room to connect and remove the adjoining hardware without contacting nearby trim. During maintenance, inspect the mounting points and contact surfaces together, and check folding components through their intended movement where fitted.
Selection details
The ring offers a different attachment form from a fixed-eye plate. Allow room for the ring and adjoining connector when assessing the position. Compare the plate, ring and hole dimensions and use the suggested working load for this exact size.
The suggested working load is 400 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
For a replacement installation, measure the existing mounting position before removing the old fitting. Record the hole pattern or thread, the available depth and the space around the attachment point. This helps distinguish a like-for-like replacement from a fitting that would require changes to the surrounding structure or connecting hardware.
Specifications
- Product code: RWB2419
- Size D: 8 mm
- A: 40 mm
- B: 50 mm
- H: 33 mm
- L: 50 mm
- G: 5 mm
- SWL (suggested working load): 400 kg
