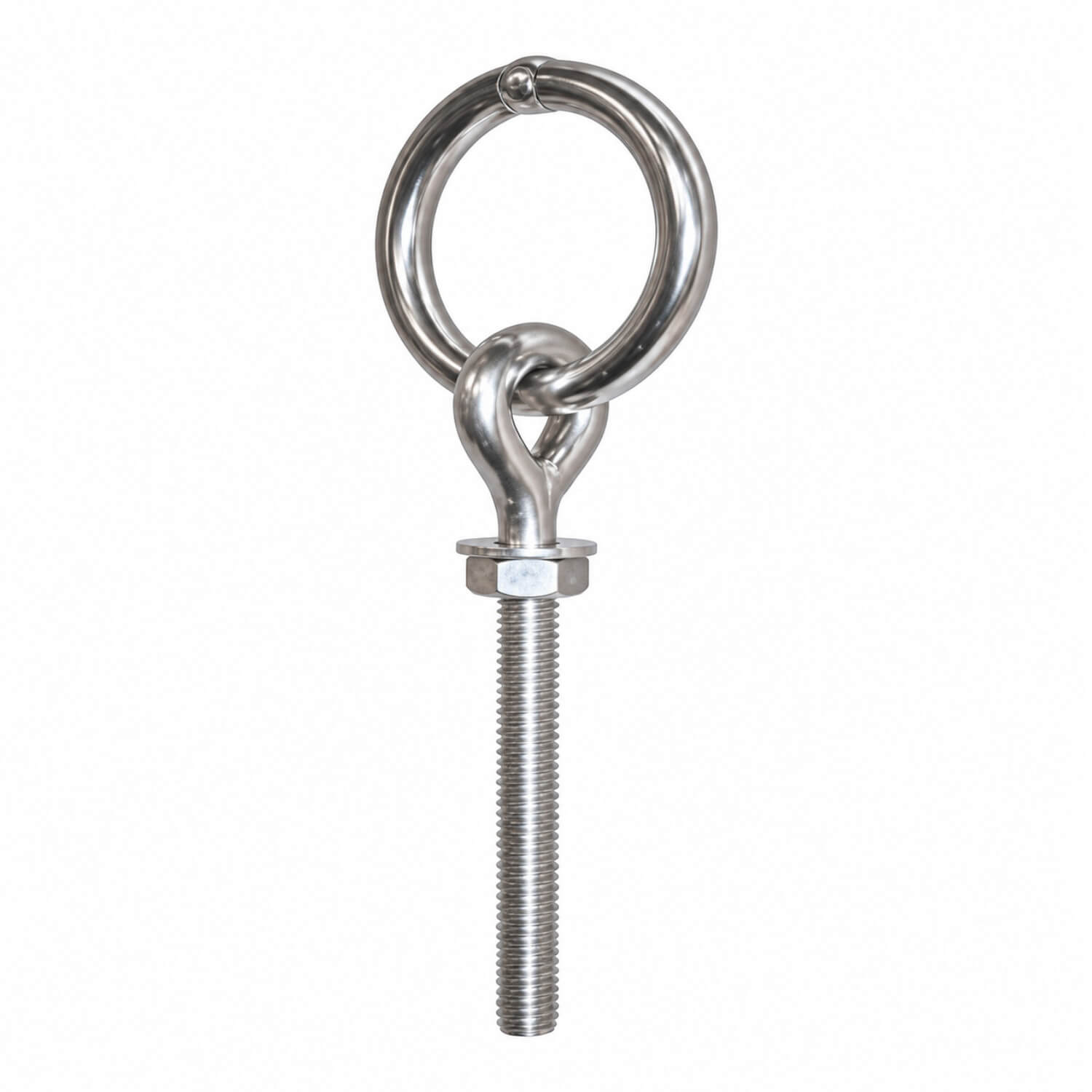

304 Stainless Ring Bolt - Thread size D: M6
Use a 304 stainless steel ring bolt where a threaded ring attachment suits the assembly. The metric thread is supplied with one stainless steel washer and one stainless steel hex nut.
This M6 variant is selected by its metric thread and the remaining dimensions below. Check the stated 250 kg suggested working load alongside the space needed for the eye or ring connection.
An attachment point with a threaded mounting
Threaded eye and ring fittings are useful when the connection needs to be fixed to a supporting structure or compatible threaded component. The eye or ring provides the attachment interface, while the thread establishes the mounting connection. Check these separately when matching a replacement to an existing arrangement.
Plan access for fitting and inspecting the threaded connection, including the space needed by any supplied fastening hardware. Check the receiving component and supporting material before assembly. Once installed, inspect the attachment point and its mounting together. The fitting’s stated load guidance does not describe every possible supporting structure, so assess it as part of the complete installation rather than as a standalone connection.
Selection details
Match the thread to the fixing position and allow space for the ring and connecting hardware. Compare the H, L and T dimensions alongside the suggested working load. The material grade is 304 stainless steel, which should be kept distinct from the 316 eye-bolt options.
The suggested working load is 250 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
For a replacement installation, measure the existing mounting position before removing the old fitting. Record the hole pattern or thread, the available depth and the space around the attachment point. This helps distinguish a like-for-like replacement from a fitting that would require changes to the surrounding structure or connecting hardware.
Specifications
- Product code: RWB2464
- Thread size D: M6
- H: 75 mm
- L: 35 mm
- T: 60 mm
- SWL (suggested working load): 250 kg
