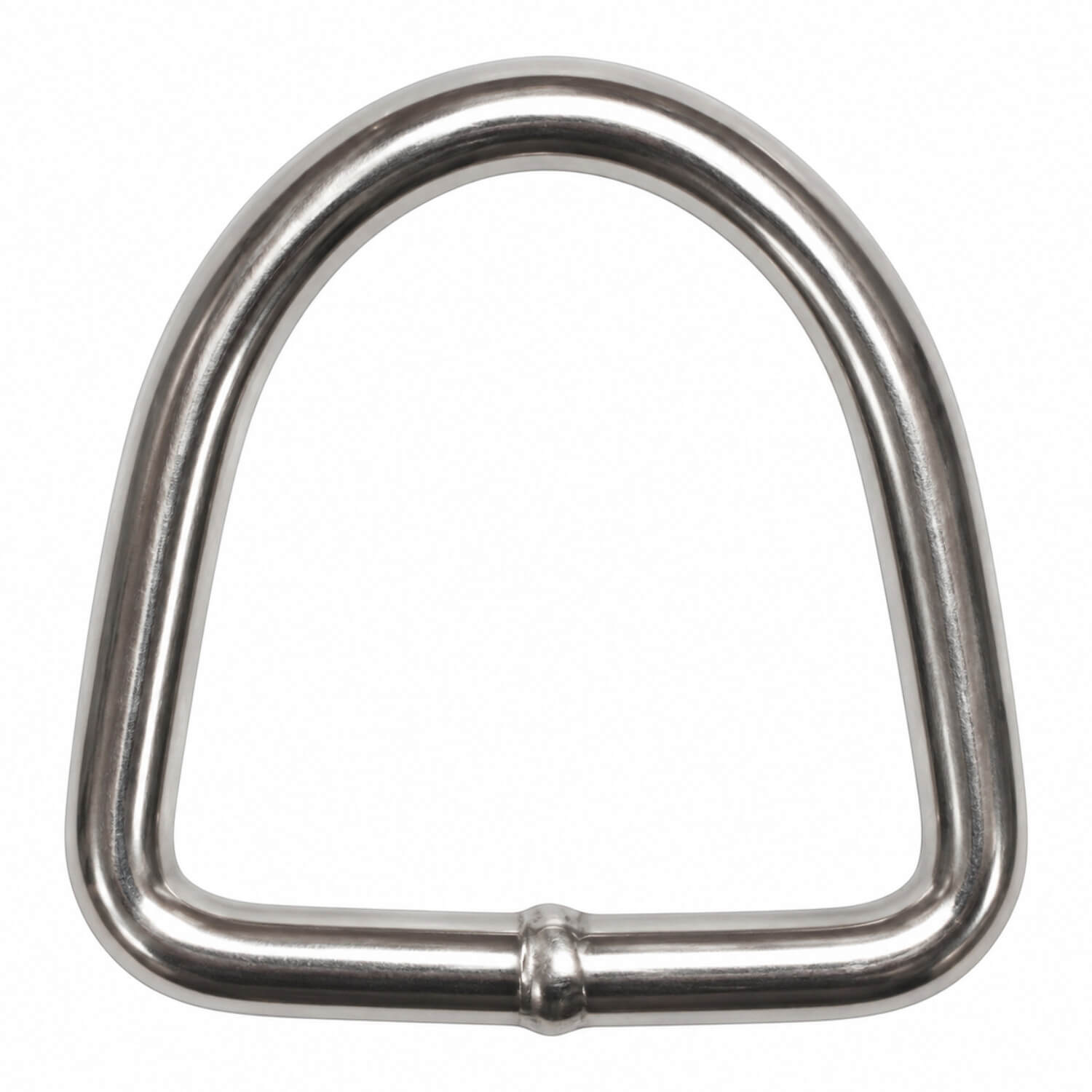

304 Stainless Dee Ring - Material diameter D: 4 mm / L: 25 mm
Choose an argon-welded 304 stainless steel dee ring for a closed connection with a straight side and curved end. The stainless construction and compact shape make it straightforward to match to other hardware in the assembly.
The selected model combines a 4 mm material dimension with a 25 mm L measurement. These measurements identify this size within the range.
A simple connection with a specific geometry
Ring and open-hook fittings may look simple, but their shape influences how adjoining parts sit together. Material diameter describes the metal section, while the other dimensions describe the space occupied or available within the fitting. Comparing both helps you choose hardware that suits the actual connection rather than just the apparent size.
Consider how the mating parts will be introduced and retained before assembling the connection. A closed ring and an open hook require different arrangements. Check the space around the fitting throughout its intended movement and leave it accessible for inspection. Review contact points for wear during regular maintenance and use the load guidance supplied for this exact version when planning the assembly.
Selection details
Compare material diameter D with dimensions L and H. These measurements distinguish the metal thickness from the shape of the ring. Check the complete dimensional combination and suggested working load before selecting the fitting.
The suggested working load is 200 kg. It is approximately 25% of ultimate breaking load; breaking load must not be used as an operating load.
When matching existing equipment, keep the exact product code with the dimensions you have checked. Similar-looking fittings can differ in their opening, material section or connection style. Comparing the full specification before ordering makes it easier to select a replacement that fits the arrangement you already have and remains straightforward to maintain.
Specifications
- Product code: RWB2561
- Material diameter D: 4 mm
- L: 25 mm
- H: 22 mm
- SWL (suggested working load): 200 kg
