3 Gang Switch Panel - 12v 10amp - 116 x 94mm

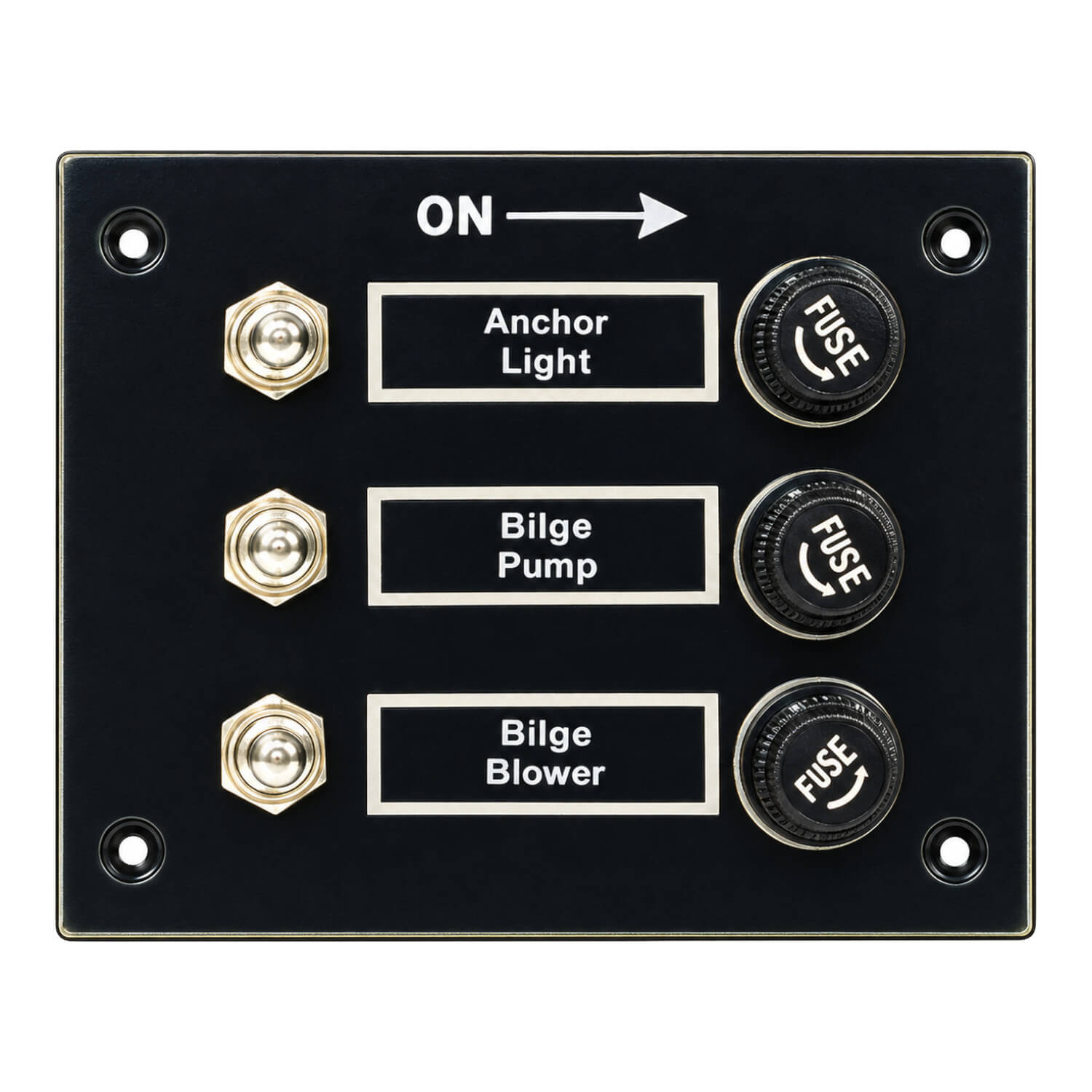

Bring 3 toggle controls together with this black standard switch panel. Part 700180 measures 116 x 94mm and is specified as a 12V 10A panel.
The bakelite panel is fully wired and uses chrome-plated brass toggle switches. Fuse holders, 5A fuses and assorted metallic nameplates are supplied, allowing the completed control layout to be identified.
The 3-gang format defines the number of control positions. Check the supplied fuse ratings against the intended circuits, and assess the mounting footprint and wiring clearance before fitting.
Choosing and using this product
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Product details
- Product: 3 Gang Switch Panel - 12v 10amp - 116 x 94mm
- Product code: 700180
- Black bakelite panel, fully wired with chrome-plated brass toggle switches, fuse holders, 5A fuses and assorted metallic nameplates
