24v Johnson Bilge Pump - 3 Way Switch Panel
Give your bilge pump controls a dedicated panel with 24v Johnson Bilge Pump - 3 Way Switch Panel. Product 180168-24 uses the switching arrangement below, so you can match the panel to the intended pump circuit and available mounting space.

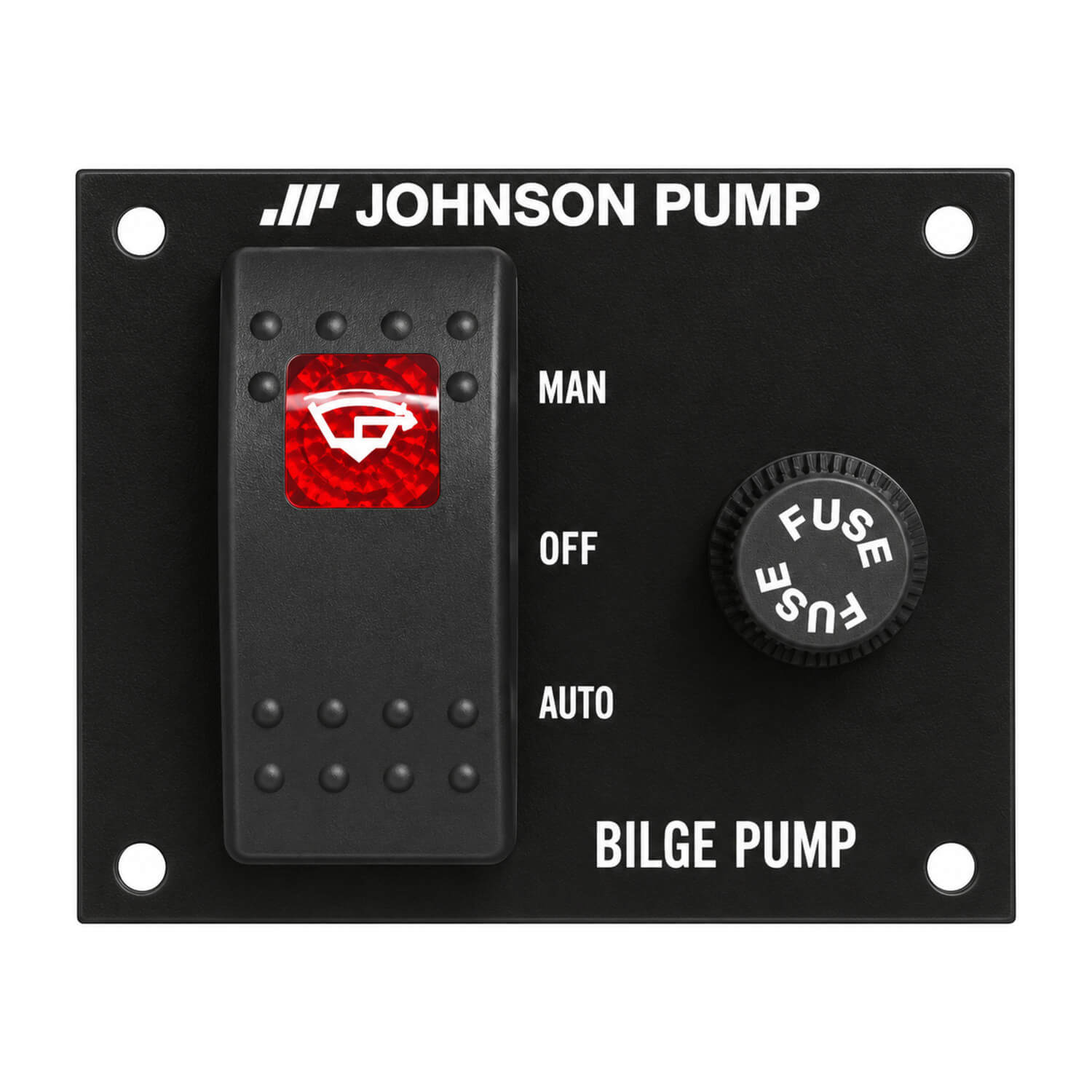

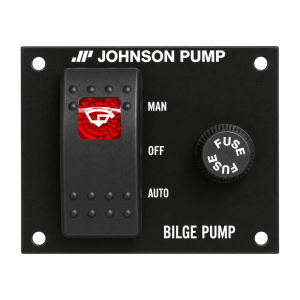

This 24 V Johnson panel has auto/off/manual selection with spring-return from manual. A built-in fuse holder and illuminated rocker switch are incorporated in the 73 x 60 x 40 mm body.
Check the available panel depth as well as the face dimensions. Select the control function for the actual pump arrangement; the panel itself does not replace a required water-level switch.
Choosing and using this product
For this version, size: 73 x 60 x 40 mm. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
For this version, included: built-in fuse holder and illuminated rocker. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Product details
- Voltage: 24 V
- Positions: auto/off/manual; manual spring-return
- Included: built-in fuse holder and illuminated rocker
- Size: 73 x 60 x 40 mm
- Product code: 180168-24
