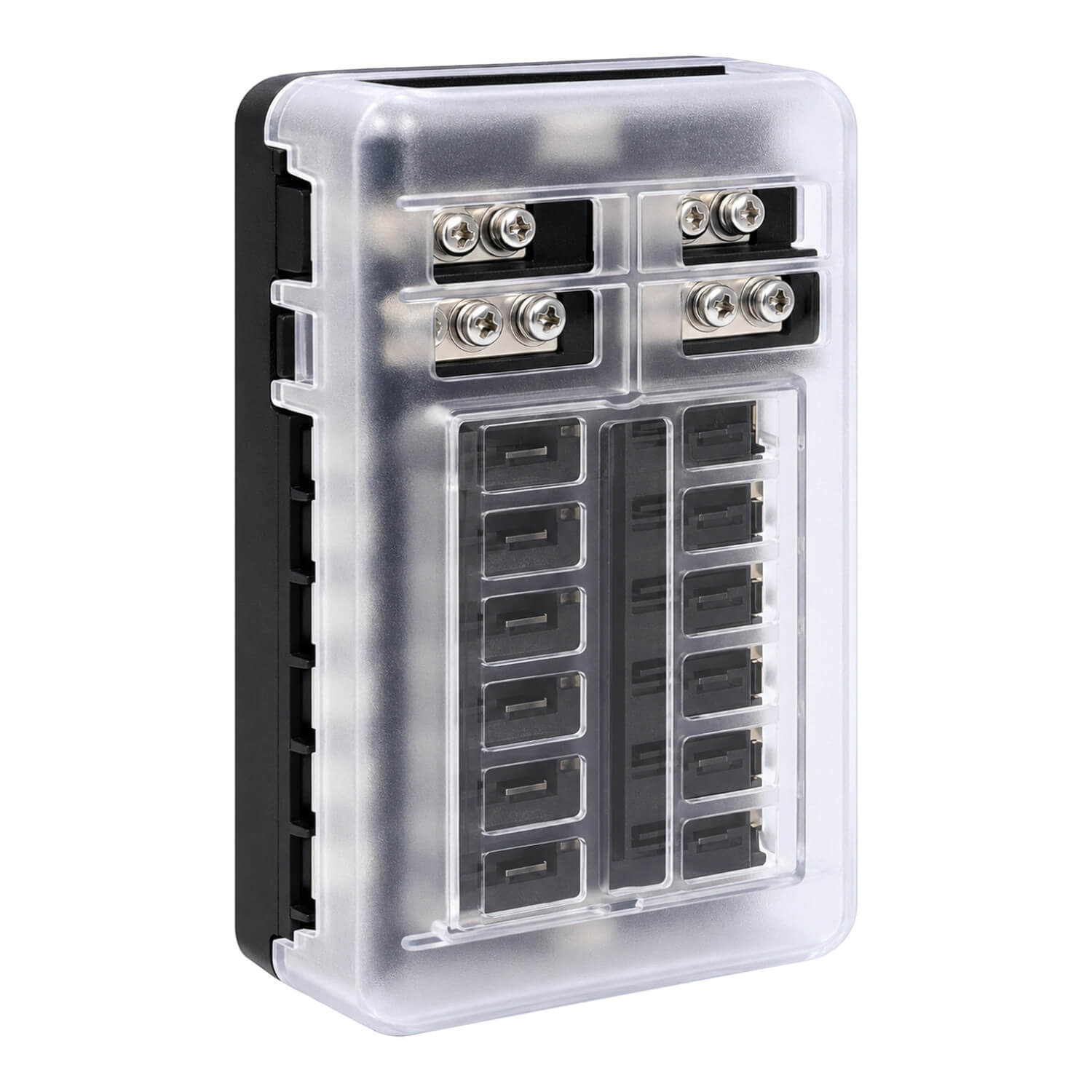

12 Way Fuse Box with Negative Buss Bar
Bring branch protection and negative connections into an organised assembly with the 12-way fuse box, part 220174. It combines a blade-fuse block with a negative bus bar, a clear cover and blown-fuse indication LEDs.
The LEDs make a blown fuse easier to identify at the block. Recessed label areas in the transparent cover and 60 assorted label stickers help you map each position to its connected circuit, improving identification during inspection or maintenance.
The block accepts ATP, ATC and ATO automotive blade fuses. It is designed for 24-hour circuits, with a maximum DC voltage of 32V. Each branch is rated at 30A, while the cumulative limit for the entire block is 100A. Those two current limits need to be considered separately when assigning loads.
Screw terminals provide the branch connections. The M5 terminal studs and M4 screws are specified so that matching connection hardware can be selected for the actual wiring. The 140 x 85 x 36mm footprint helps you assess mounting space and cover access.
Plan the circuit layout before installation, including the positive supply, branch protection and negative connections. Give each circuit an appropriate fuse and wire size for its equipment. The overall box rating does not mean that every branch can be loaded to its maximum simultaneously.
Choose this model when the negative bus and blown-fuse indicators form part of the desired distribution layout. Keep the clear cover and identification labels accessible so that the completed installation remains easy to inspect.
Product details
- Product: 12 Way Fuse Box with Negative Buss Bar
- Product code: 220174
- Blade fuse block with negative bus bar, blown-fuse LEDs and clear cover with label recesses
- Accepts ATP/ATC/ATO blade fuses
- Includes 60 assorted label stickers
- Maximum voltage: DC32V
- 30A per branch
- 100A cumulative per block
- Terminal studs: M5 (3/16 inch)
- screws: M4 (5/32 inch)
- Dimensions: 140 x 85 x 36mm
